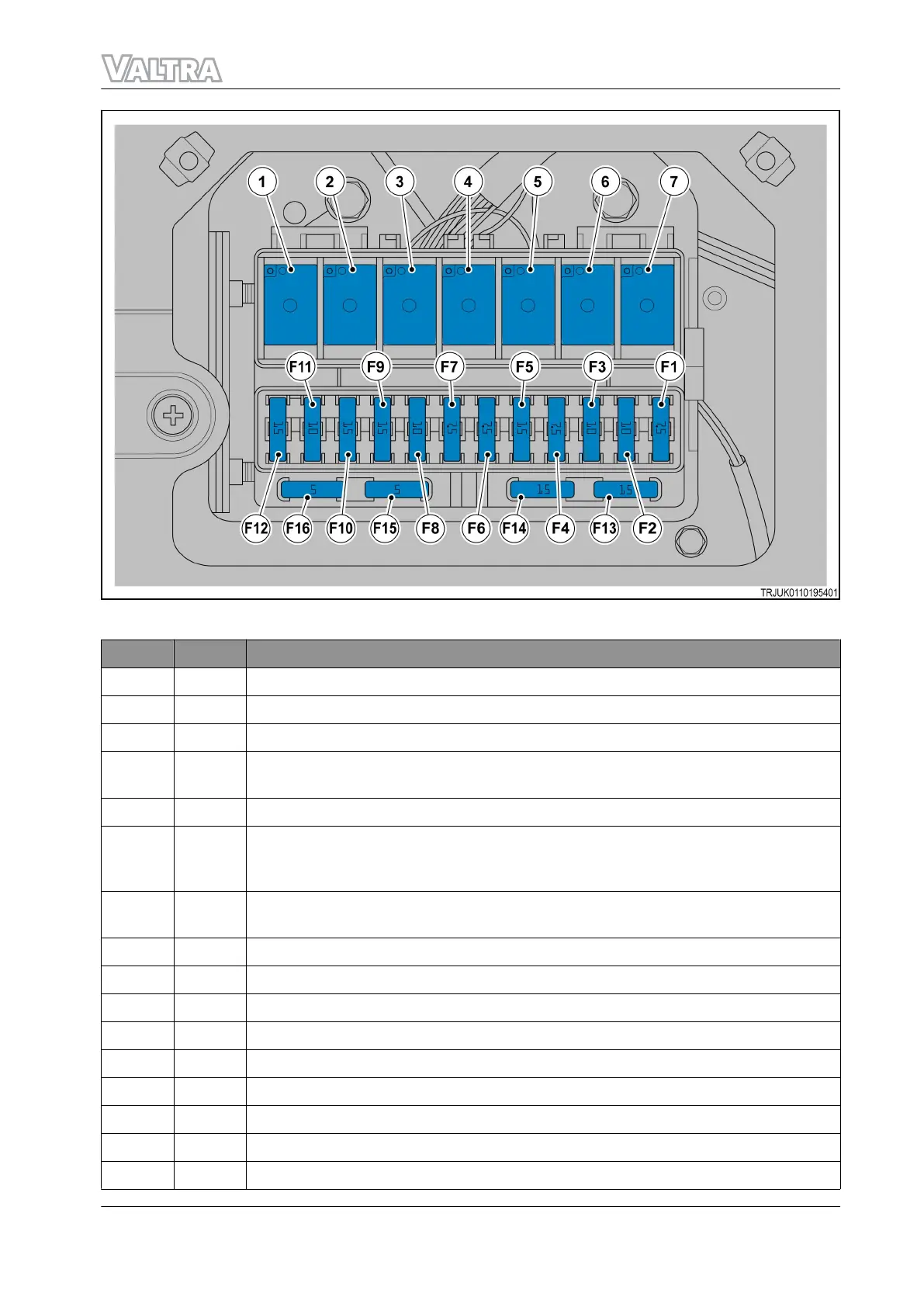

Fig. 17
Position Rating Fuse function
F1 7.5 A Engine ECU (+15)
F2 10 A 3 pin power socket (+15 )
F3 10 A 3 pin socket (+30), cigarette lighter
F4 7.5 A
four-wheel drive solenoid valve, four-wheel drive switch, throttle pedal sensor, speed
sensor
F5 15 A Pneumatic seat * , cab (+15)
F6 7.5 A
PTO switch, PTO solenoid valve, dierential lock switch, hand throttle sensor,
dierential lock pressure switch, 4WD pressure switch, Variable Forward Reach
(VFR) *
F7 10 A
Dashboard (+15), high or low switches** , PowerShuttle (+15)** , high or low*** ,
hydraulic super creeper (+15)*
F8 10 A Dashboard (+30), hydraulic super creeper (+15)* , PowerShuttle (+30)**
F9 15 A Beacon lamp
F10 15 A Stop lamp
F11 10 A Turn indicators, horn
F12 15 A Warning lamps
F13 15 A Low beam lamps
F14 15 A High beam lamps
F15 5 A Cab work lamps, right side position lamps
F16 5 A Left side position lamps
4. Maintenance
F Series 151
39940211 (555124)
