* if installed
** only on 24+12 transmission version
*** only on 24+24 transmission version
Position Type Relay function
1 12 V/30 A Low beam lamps
2 12 V/30 A High beam lamps
3 12 V/30 A Trailer brake valve
4 12 V/30 A H4 Low beam lamps
5 12 V/30 A H4 High beam lamps
6 12 V/30 A Safety start
7 12 V/30 A H3 Work lamp*
* if installed

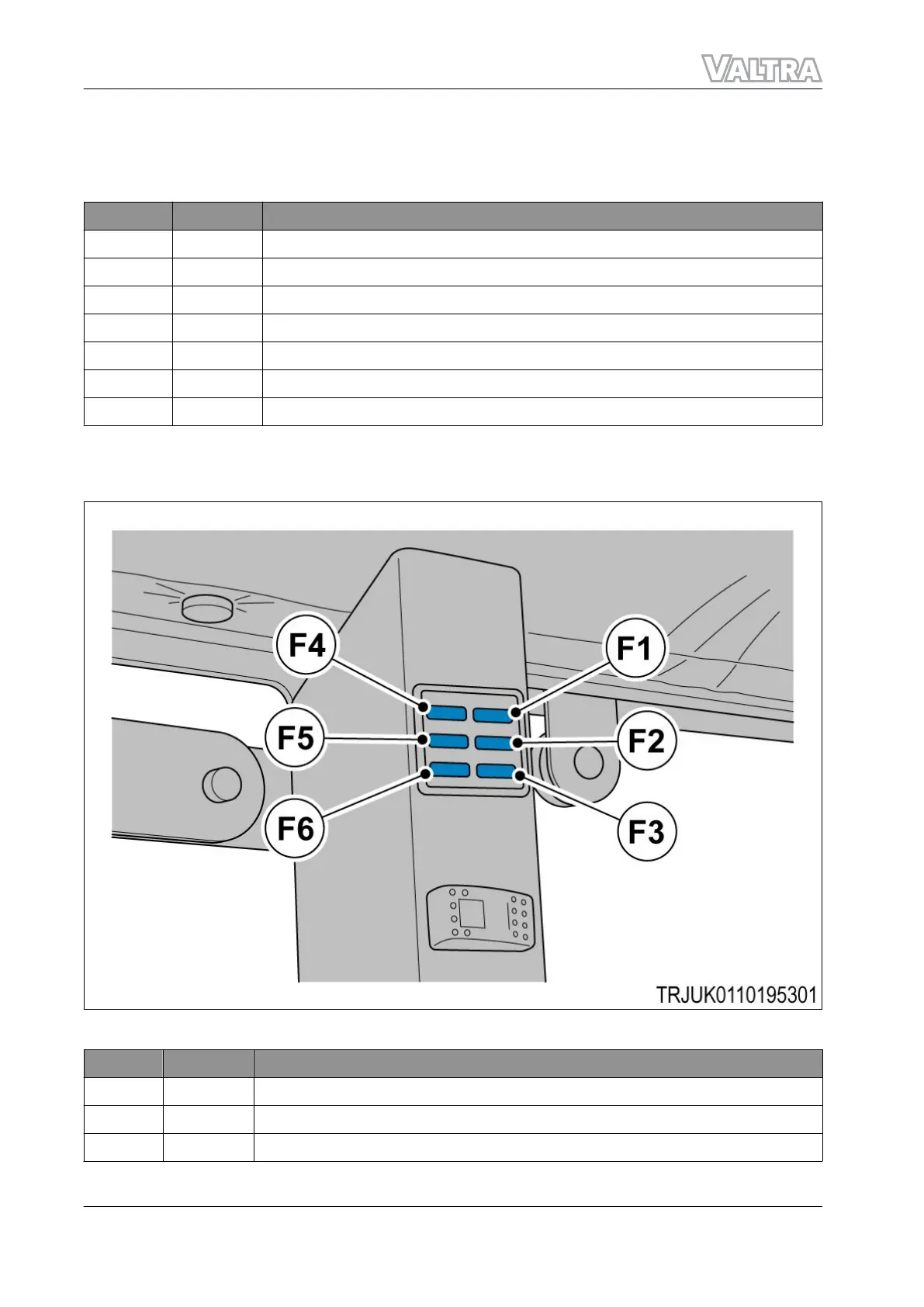

Fuse box on the B-pillar, right side
GUID-12CABF96-6849-47D0-95D0-A33DA53F1600-high.jpg [High]
Fig. 18
Position Rating Fuse function, B-pillar right side
F1 15 A Front work lamps
F2 15 A Rear work lamps
F3 10 A Radio (+15), rear window wiper
