Position Rating Fuse function, B-pillar right side
F4 10 A Radio (+30), internal lamp
F5 15 A Windshield wiper, windshield washer pump
F6 30 A Air-conditioning module
Relays on the B-pillar, left side

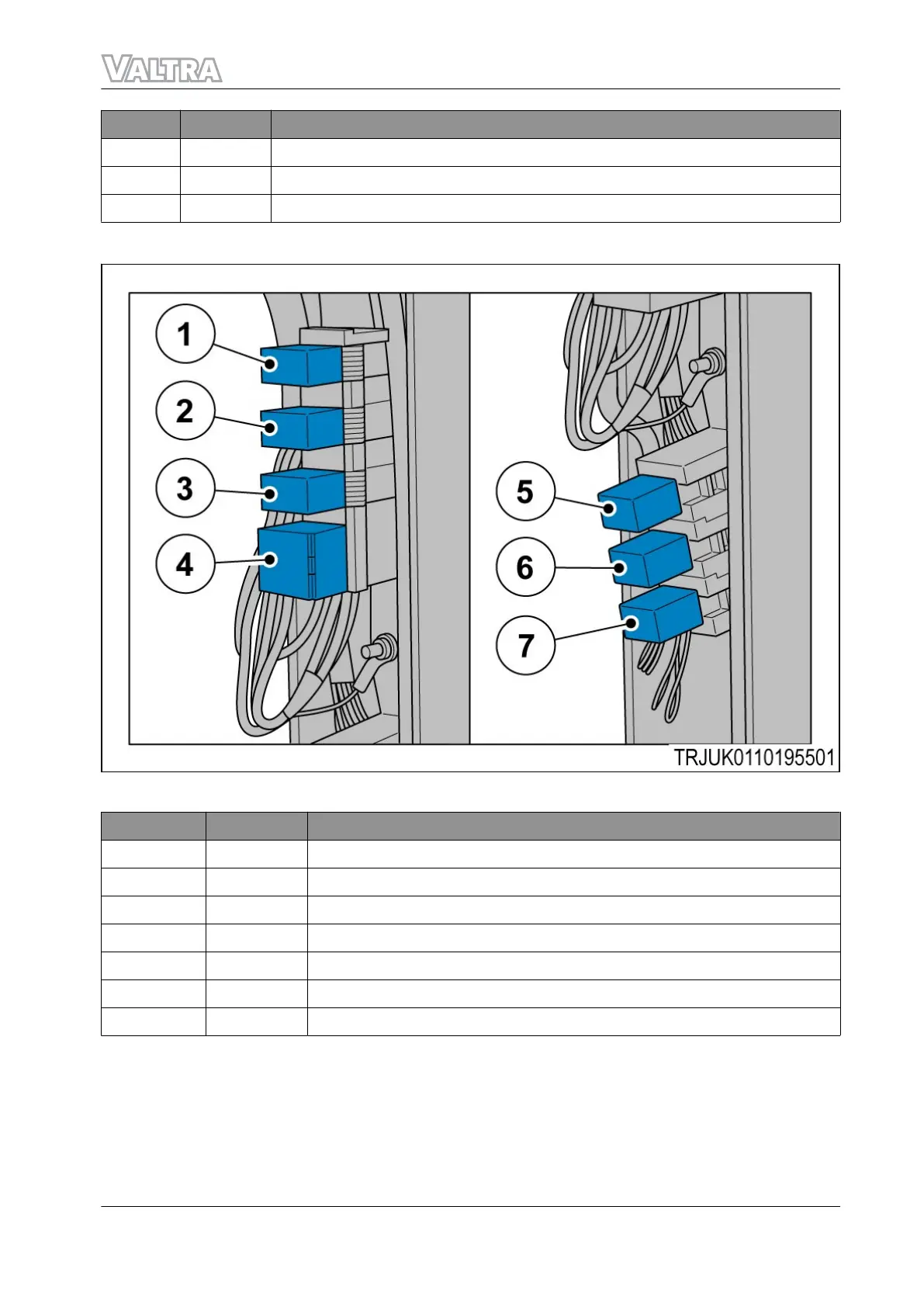

GUID-A3BD5C1F-143A-4120-8F20-833292ED81EF-high.jpg [High]
Fig. 19
Position Type Relay function, B-pillar left side
1 12 V/30 A Front work lamps
2 12 V/30 A Rear work lamps
3 12 V/20 A Air-conditioning clutch
4 12 V/70 A Cab roof power supply
5 12 V/20 A Air-conditioning/heating circuit power supply (series)
6 12 V/20 A Air-conditioning/heating circuit power supply (parallel)
7 12 V/20 A Air-conditioning/heating circuit power supply
