4. Measurement functions
All the direct measurements are based on fundamental
frequency values. (The exceptions are frequency and

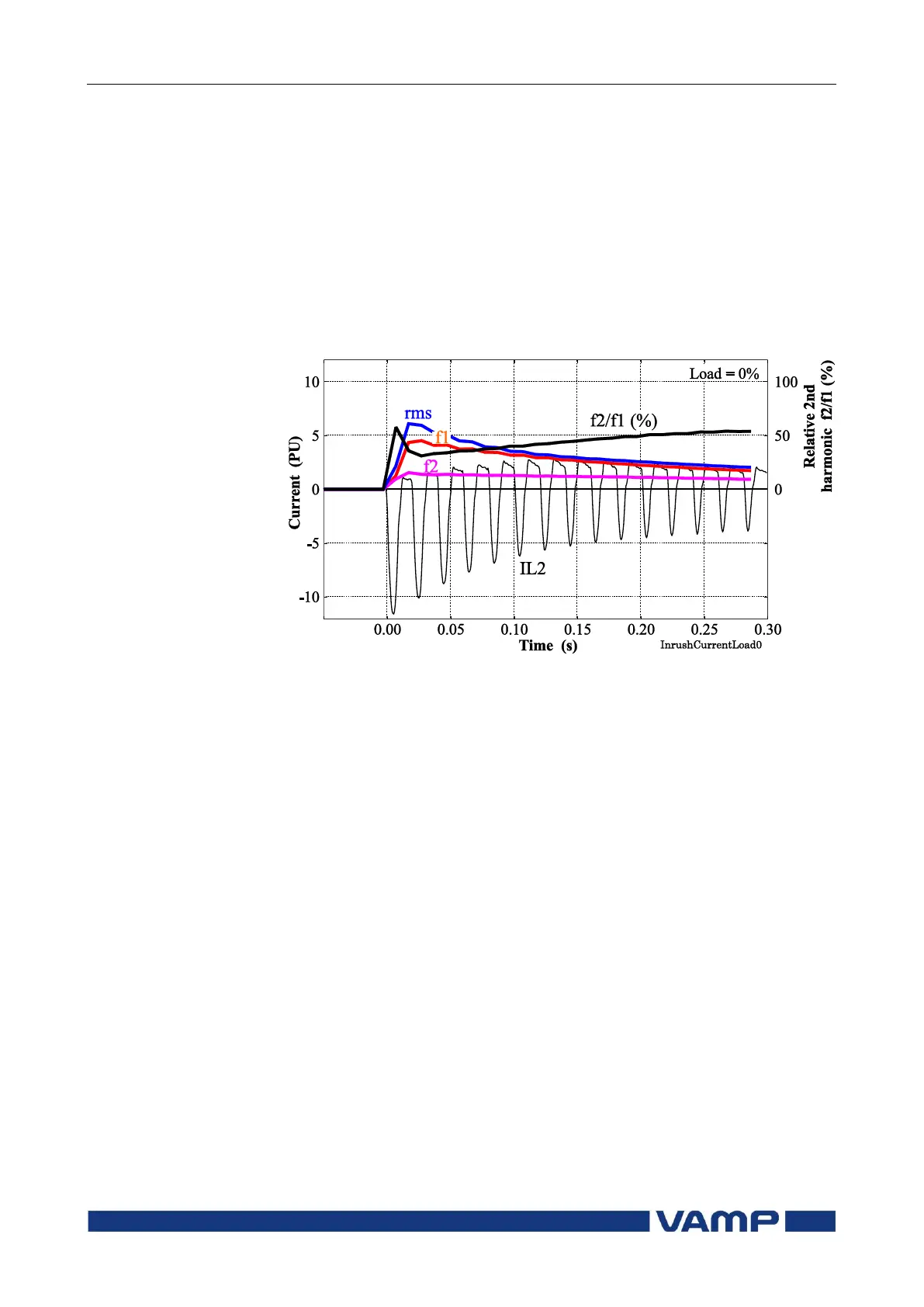

instantaneous current for arc protection.) The figure shows a
current waveform and the corresponding fundamental
frequency component, second harmonic and rms value in a
special case, when the current deviates significantly from a
pure sine wave.
Figure 4-1 Example of various current values of a transformer inrush
current.
