VAMP 265 - MI Moderately Inverse

Technical description
2 Protection functions
2.13 Inverse time operation
VM265.EN011
VAMP 24h support phone +358 (0)20 753 3264
89

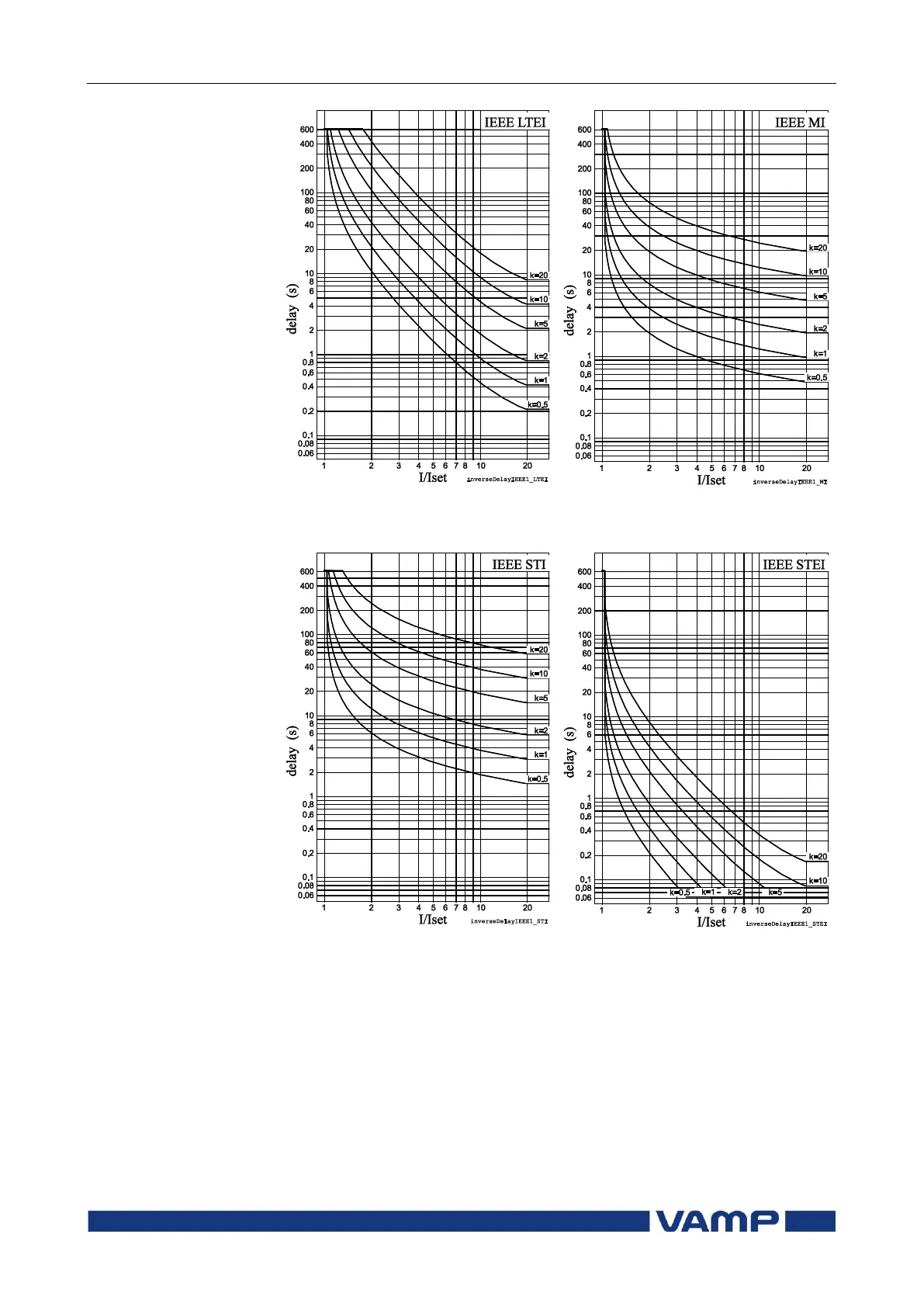

Figure 2.13.1-7 ANSI/IEEE long
time extremely inverse delay
Figure 2.13.1-8 ANSI/IEEE
moderately inverse delay
Figure 2.13.1-9 ANSI/IEEE short
time inverse delay
Figure 2.13.1-10 ANSI/IEEE short
time extremely inverse delay
