Operation and configuration
instructions
2 Local panel user interface
2.2 Local panel operations
VAMP 24h support phone +358 (0)20 753 3264
First menu of I>> 50/51 stage

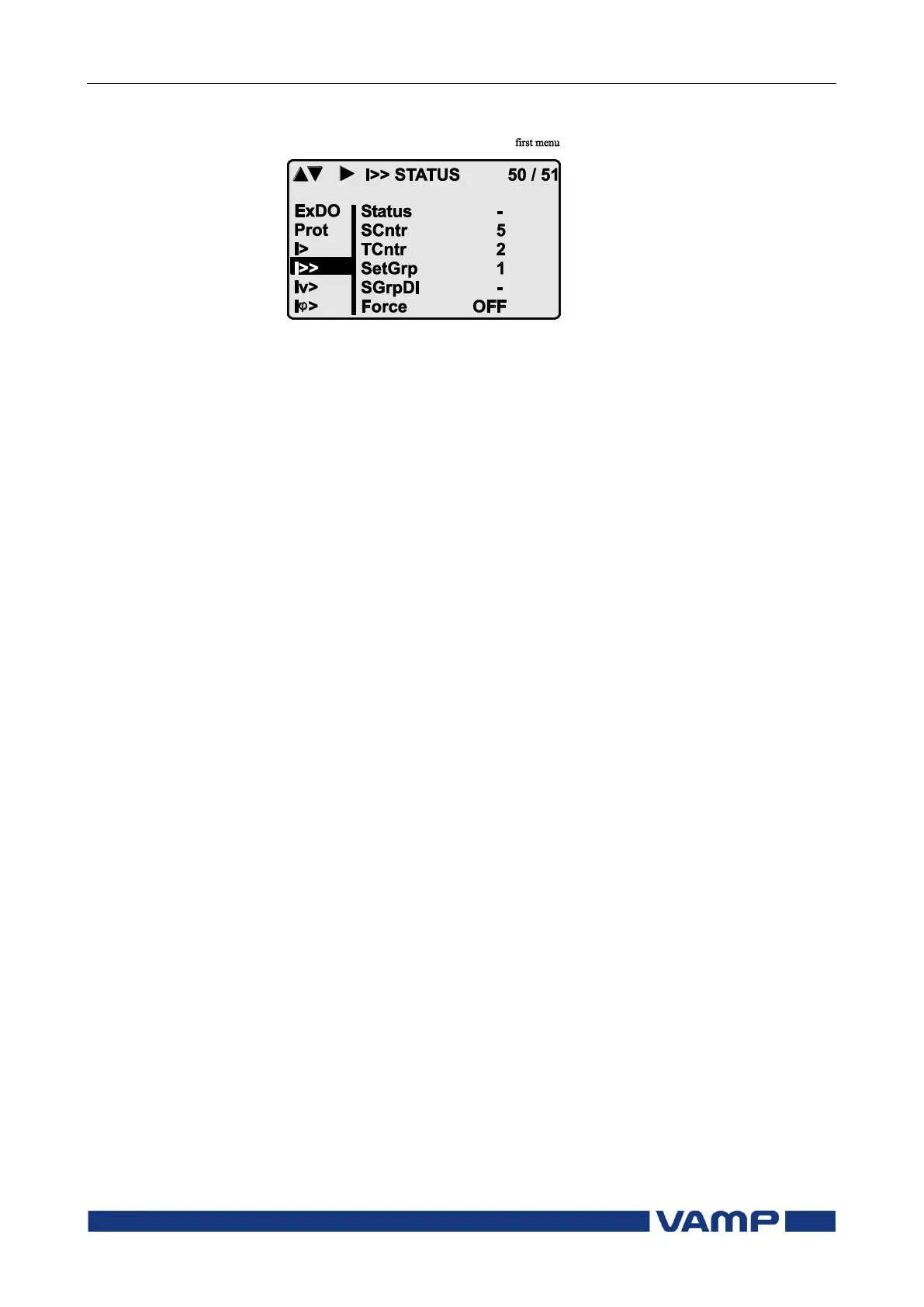

Figure 2.2.2-1 First menu of I>> 50/51 stage
This is the status, start and trip counter and setting group
menu. The content is:
The stage is not detecting any fault at the moment. The
stage can also be forced to pick-up or trip if the operating
level is "Configurator" and the force flag below is on.
Operating levels are explained in chapter 2.2.5.
The stage has picked-up a fault five times since the last
reset of restart. This value can be cleared if the operating
level is at least "Operator".
The stage has tripped two times since the last reset of
restart. This value can be cleared if the operating level is
at least "Operator".
The active setting group is one. This value can be edited if
the operating level is at least “Operator”. Setting groups are
explained in chapter 2.2.3.
The setting group is not controlled by any digital input.
This value can be edited if the operating level is at least
“Configurator”.
The status forcing and output relay forcing is disabled. This
force flag status can be set to “On” or back to “Off” if the
operating level is at least “Configurator”. If no front panel
button is pressed within five minutes and there is no
VAMPSET communication, the force flag will be set to “Off”
position. The forcing is explained in chapter 2.3.4.
To Next Page
