7.9 Trip Circuit Supervision
VAMP 24h support phone +358 (0)20 753 3264

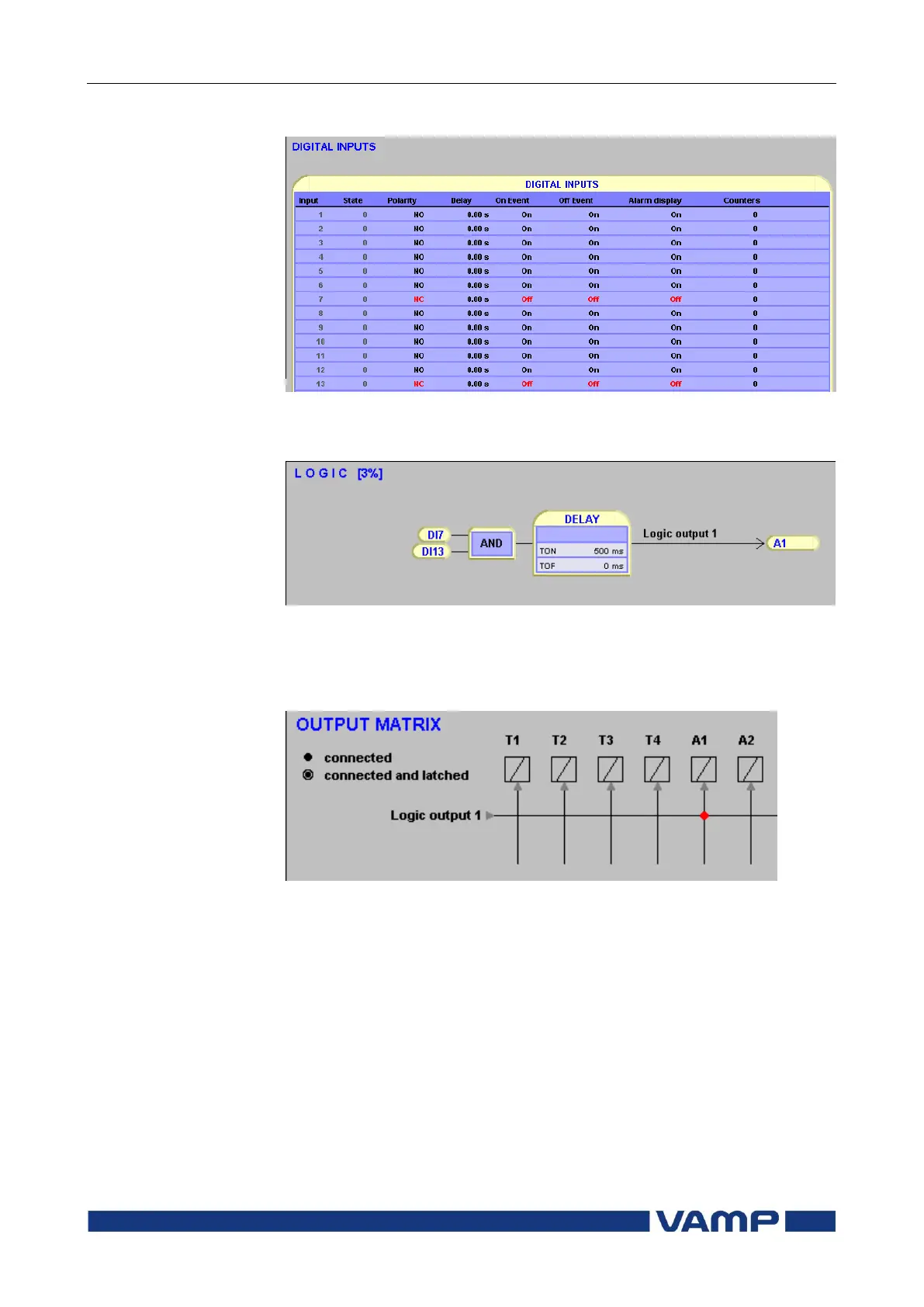

Figure 7.9.2-3 An example of digital input configuration for trip circuit
supervision with two dry digital inputs DI7 and DI13.
Figure 7.9.2-4 An example of logic configuration for trip circuit supervision
with two dry digital inputs DI7 and DI13.
Figure 7.9.2-5 An example of output matrix configuration for trip circuit
supervision with two dry digital inputs.
