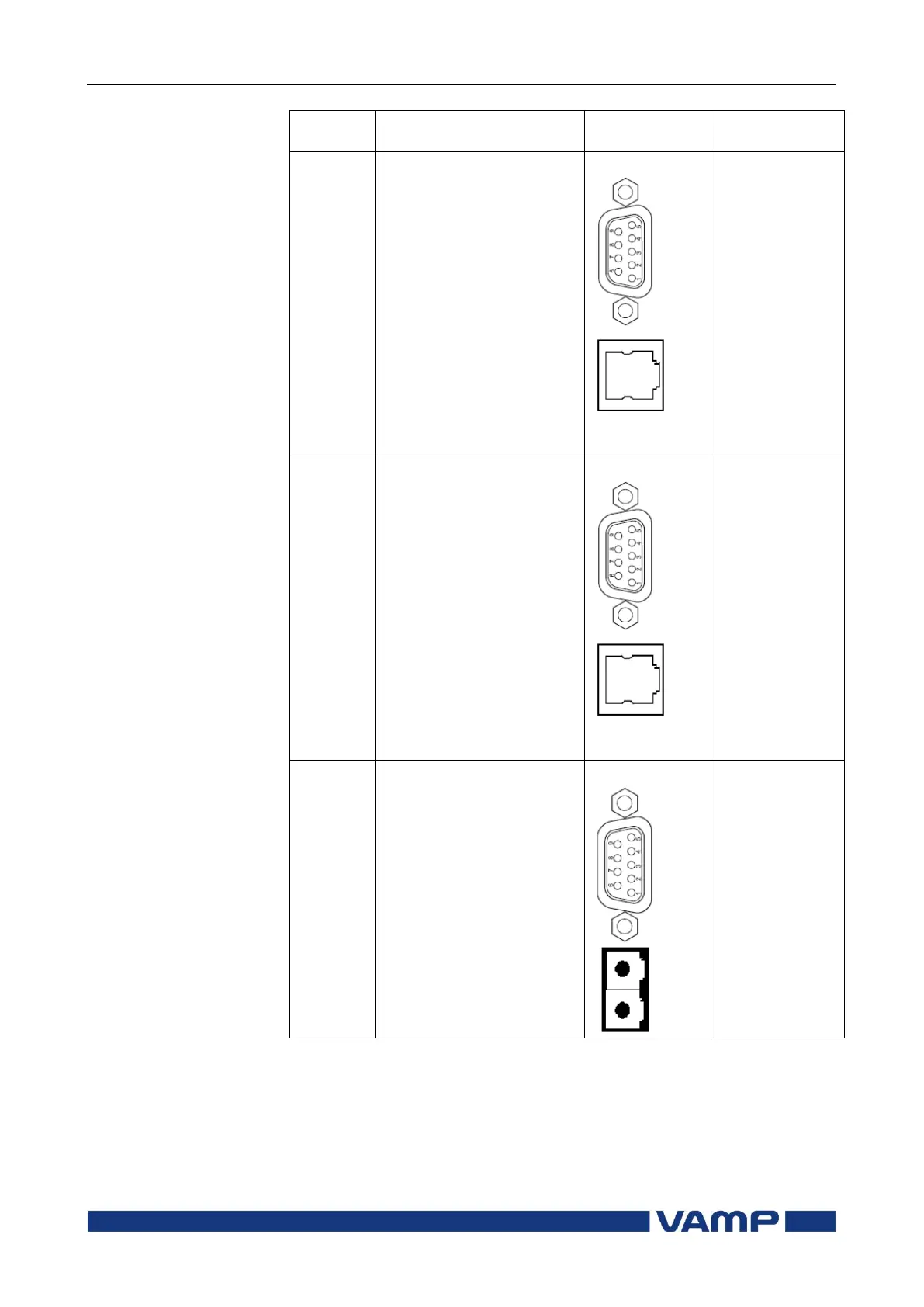

8.3 Serial communication
connectors
8 Connections
Technical description
188
VAMP 24h support phone +358 (0)20 753 3264
VM265.EN011
Order
Code
Communication interface
Connector type
Pin usage
H
Ethernet interface and
Serial interface for
external converters only
(REMOTE port)
D9S and RJ-45
D-connector:
1 = reserved
2 = TX_out / TTL
3 = RX_in /TTL
4 = RTS out /TTL
7 = GND
9 = +8V out
RJ-45 connector :
1=Transmit+
2=Transmit-
3=Receive+
4=Reserved
5=Reserved
6=Receive-
7=Reserved
8=Reserved
M
10Mbps Ethernet
interface with IEC 61850
and Serial interface for
external converters only
(REMOTE port)
D9S and RJ-45
D-connector:
1 = reserved
2 = TX_out / TTL
3 = RX_in /TTL
4 = RTS out /TTL
7 = GND
9 = +8V out
RJ-45 connector :
1=Transmit+
2=Transmit-
3=Receive+
4=Reserved
5=Reserved
6=Receive-
7=Reserved
8=Reserved
O
100 Mbps Ethernet fibre
interface with IEC 61850
and Serial interface for
external converters only
(REMOTE port)
D9S and LC
D-connector:
1 = reserved
2 = TX_out / TTL
3 = RX_in /TTL
4 = RTS out /TTL
7 = GND
9 = +8V out
Fiber connector:
TX=Upper LC-
connector
RX=Lower LC-
connector
