8.10.6 Setting the grid parameters for GS protection
The grid parameters for GS protection have to be adjusted to the
requirements of the country in question.
 Click on the Grid parameters tab.

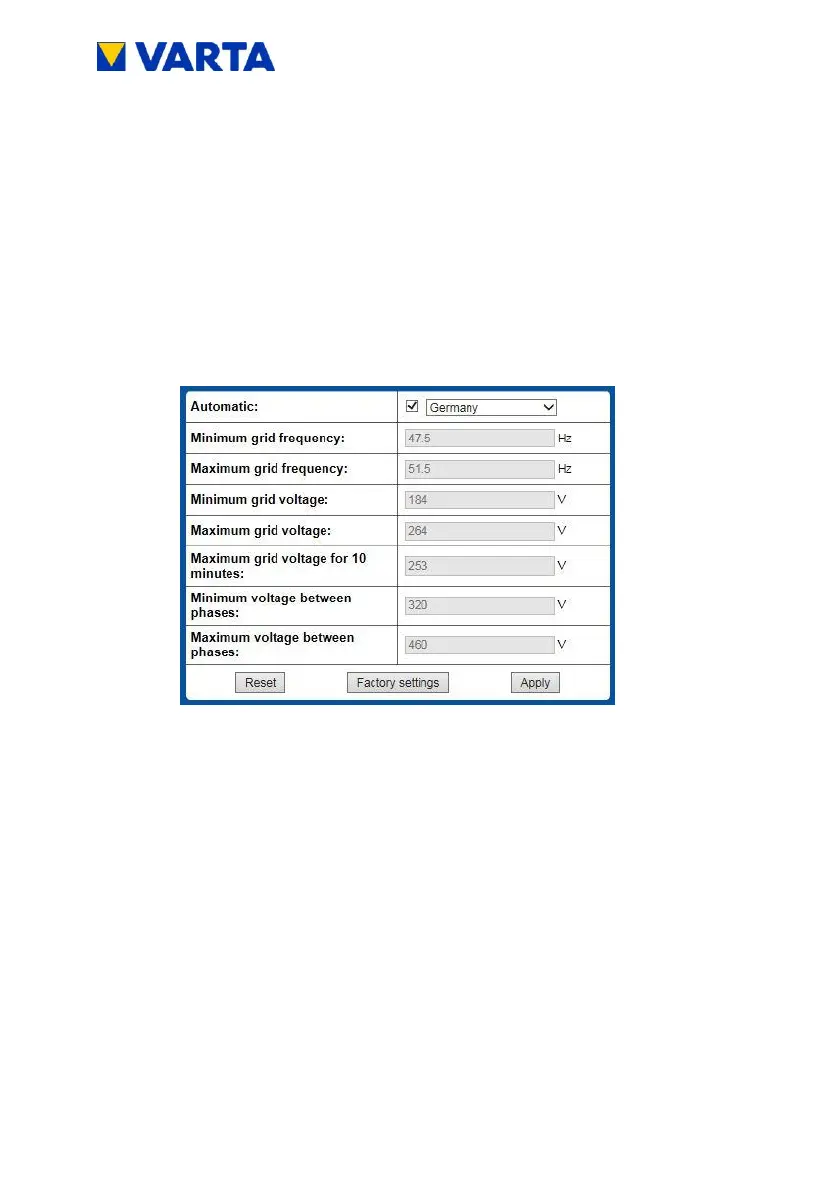

 The Grid parameters page will appear.
 Change the settings - if necessary.
Setting: Automatic
 Check the Automatic option.
 Select the country for which the settings are to apply from
the dropdown list.
 Click on Apply.
The Automatic setting uses the default values that are saved for the
selected country (see Table 12).
For the individual grid parameter settings, see Chapter 9.4.4.
