Subject to modification! Updated 10/2017

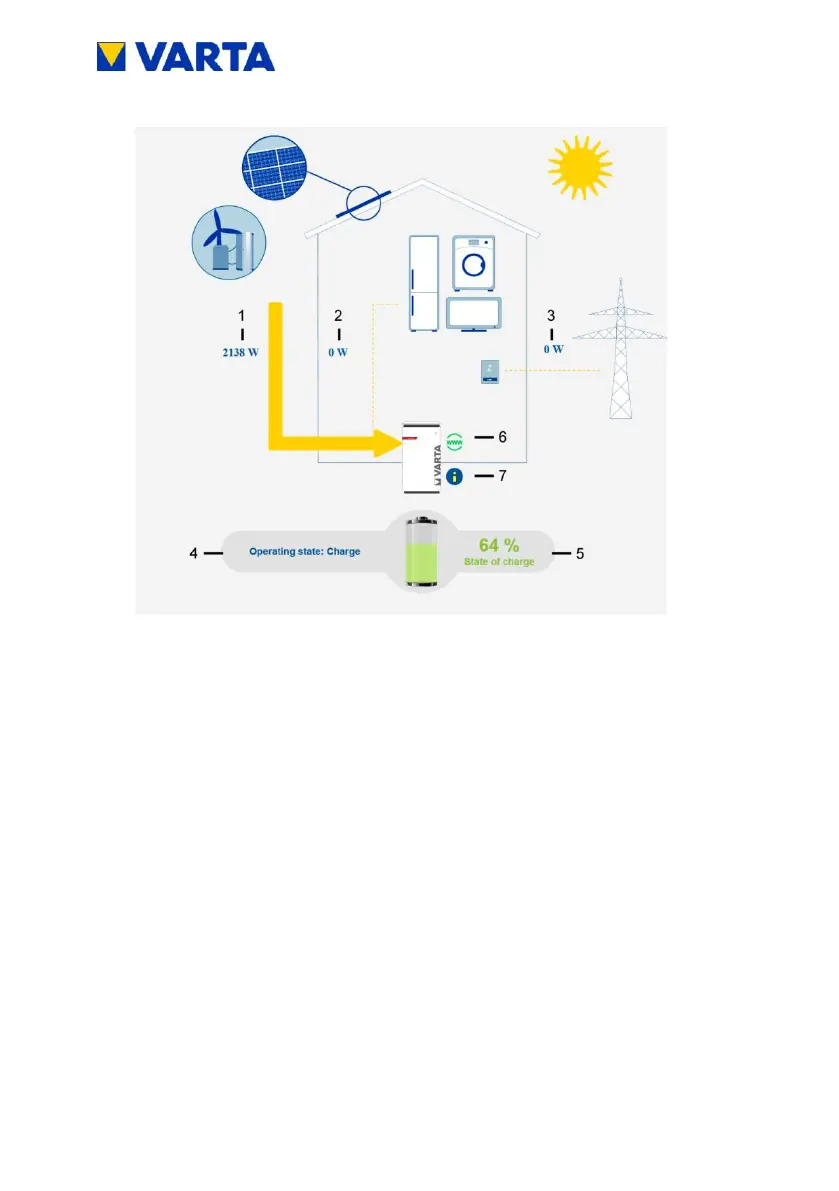

Figure 6: Web interface: Welcome page
4.3.2 Information on the welcome page (Home)
The welcome page provides an overview of the current power
values and the states of the energy storage system:
(1) Charge power of the battery inverter in watt (W):
The energy storage system is charged with this power
(power of the generating units, e.g. PV system, CHP,
minus the direct internal consumption).
(2) Discharge power of the battery inverter in watt (W):
The energy storage system is discharged with this power.
(3) Power of the grid supply/grid draw (W): The power
supplied into the public grid or drawn from the public grid
is displayed.
