Setting the terminal resistor at the right battery charger

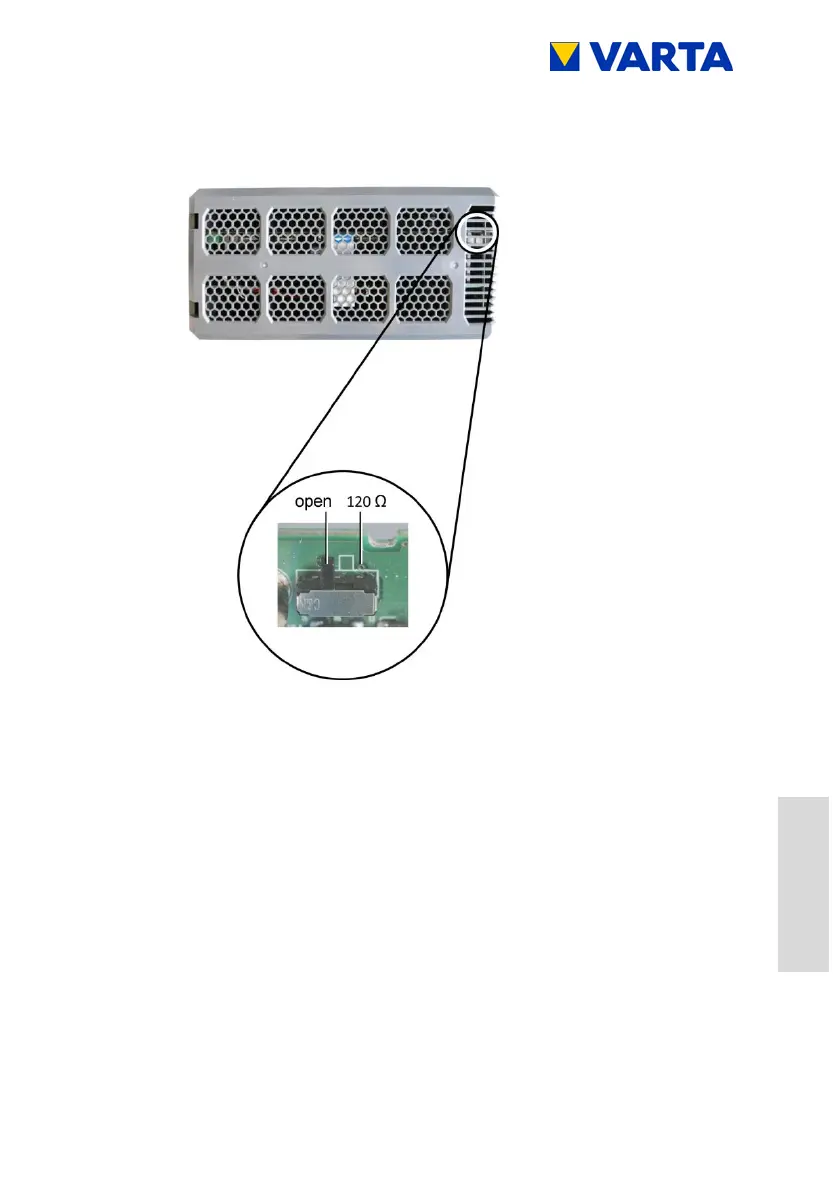

Figure 33: Setting the terminal resistor
Note: Setting the terminal resistor,
only at expansion stage element 9/12.
Applies only to battery chargers having cables plugged into
both connections (see Fig. 32) at the rear. The terminal
resistor of the other battery charger must be set to
120 ohms.
If there is only one battery charger, the terminal resistor
must always be set to 120 ohms.
