Subject to modification! Updated 10/2017

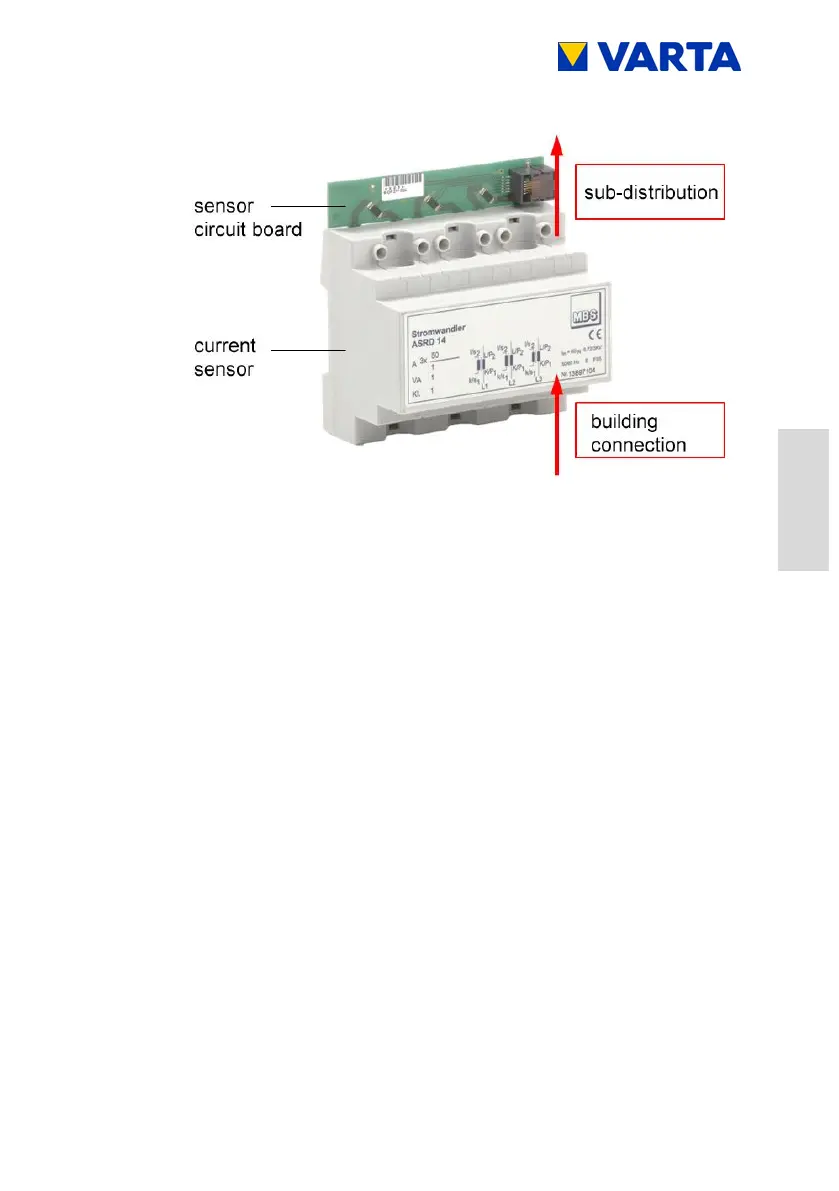

Figure 14: Current sensor - direction of installation
When installing the current sensor, it is important that the sensor
board points in the direction of the sub-distribution (see Figure 14:
Current sensor - direction of installation). Conductors L1, L2, L3 for
building connection, current sensor and AC connector must have
the same phase assignment.
Current sensor and energy storage system are connected with the
supplied sensor cable. See position of socket "current
measurement " in Figure 16.
For the connection diagram, see Figures 1a and 1b, and also
2a and 2b in the Annex.
