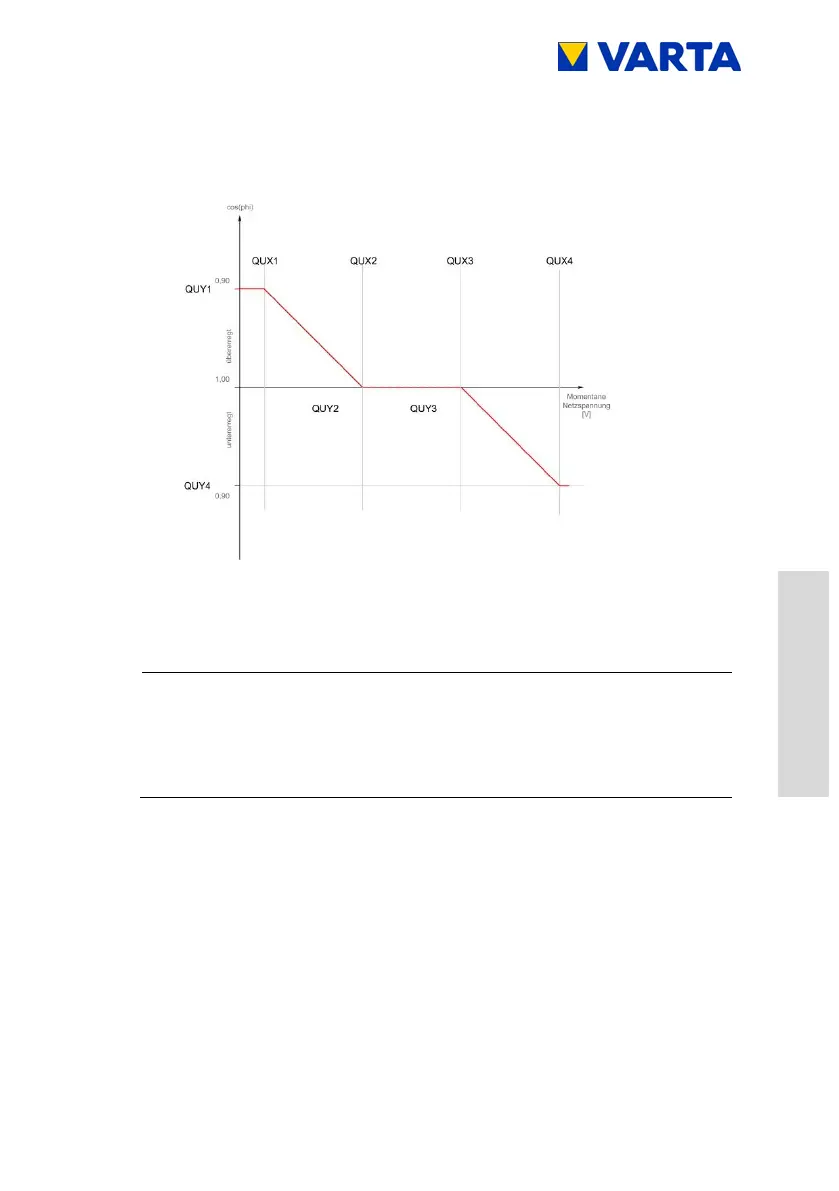

Figure 28: Q(U) characteristic
When setting the parameters, the following
condition must be adhered to:
QUX1 ≤ QUX2 < QUX3 ≤ QUX4
Time delay: Enter the time in s, after which the reactive
power is to be adjusted.
Minimum power: Enter the minimum power in %, up to
which the reactive current is not controlled.
