Varta element Series - Figure 21: Installation Positions of the Battery Modules

Subject to modification! Updated 10/2017
85
General
Operation
Installation
Operation (Service)
Maintenance

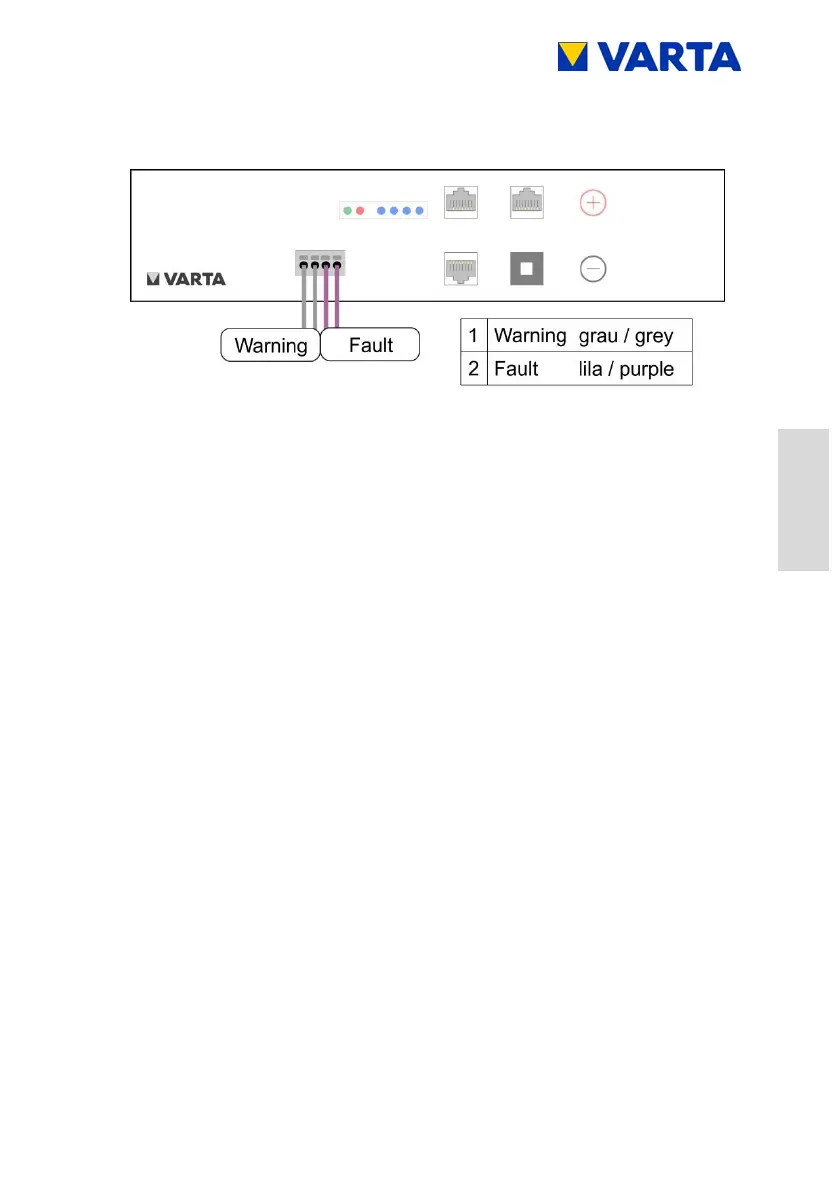

Figure 20: Clamped connections of battery module (DRY contact)
Depending on the model, up to two battery modules will be
installed. The battery modules are placed in accordance with
Figure 21: Installation positions of the battery modules.
Lift the battery module/battery modules onto the two mounting rails
using the handles.
