8.8 Installing and connecting the storage cabinet
 Plug the AC connector into the AC port. The catch audibly
engages.

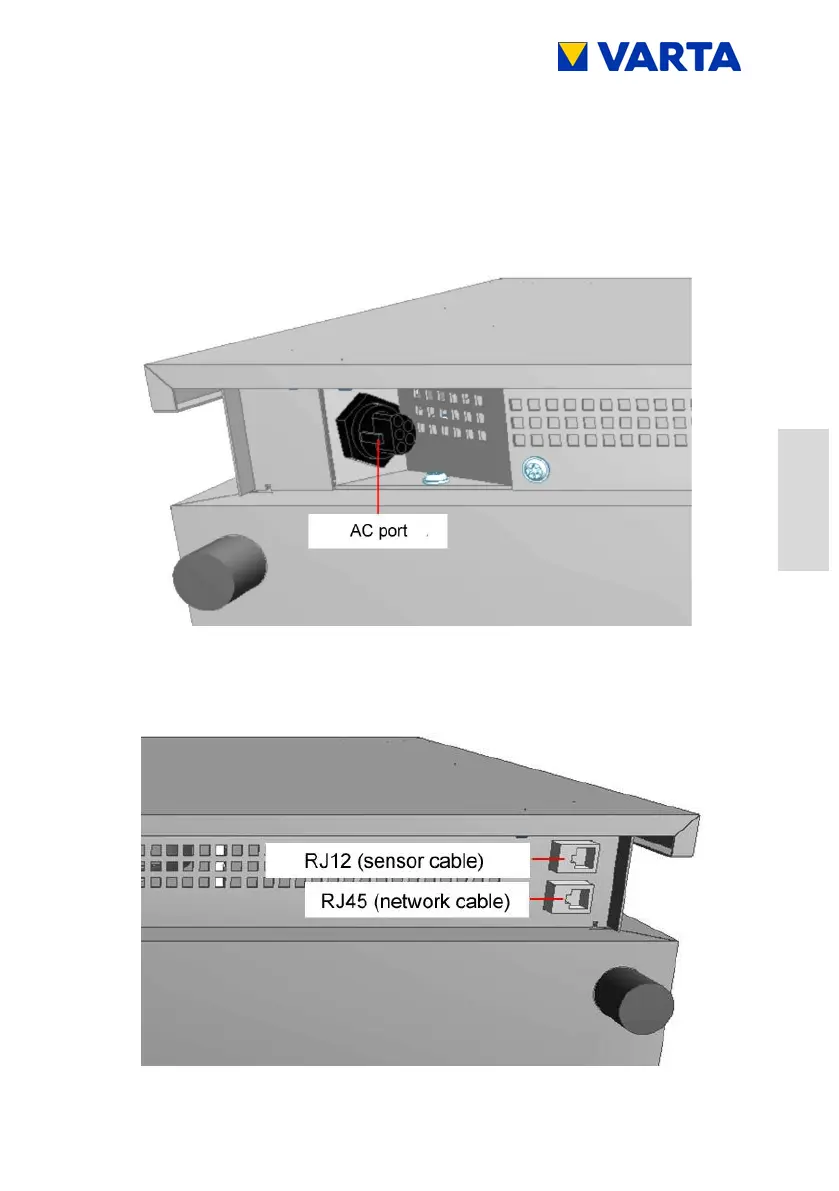

Figure 15: AC port (rear of the storage cabinet)
 Insert the sensor cable and the network cable into the
corresponding sockets.
Figure 16: Sockets (rear of the storage cabinet)
