Time delay: Enter the time in s, after which the reactive
power is to be adjusted.
Minimum power: Enter the minimum power in %, up to
which the reactive current is not controlled.

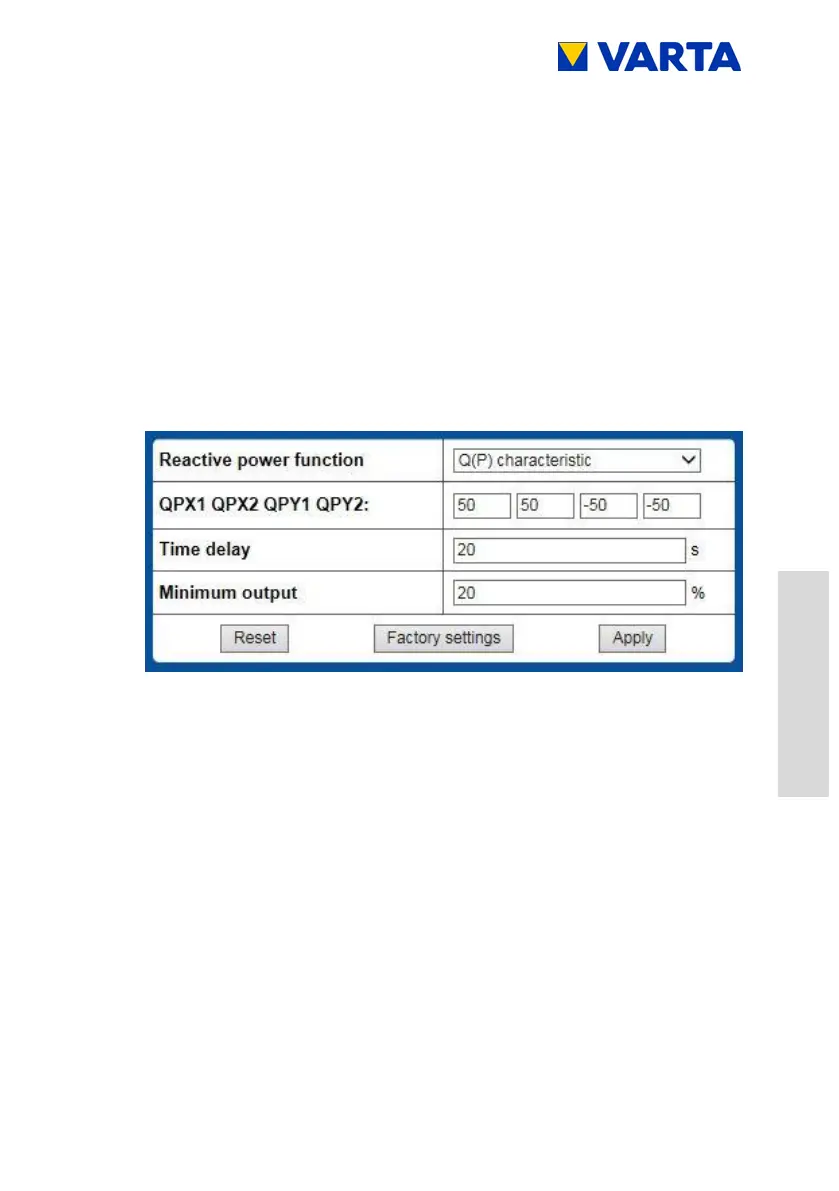

Setting as per Q(P) characteristic
Reactive power function: Select Q(P) characteristic from
the drop-down list.
QPX1 QPX2: Enter the settings for QPX1 and QPX2 by
using the numerical input fields. You can find the settings in
Figure 27.
QPY1 QPY2: Enter the settings for QPY1 and QPY2 by
using the numerical input fields. You can find the settings in
Table 14.
