5. Installing the Equipment: Wall Mount
70 Green 16/18 Installation Manual
5.1.1 Marking Points on the Floor

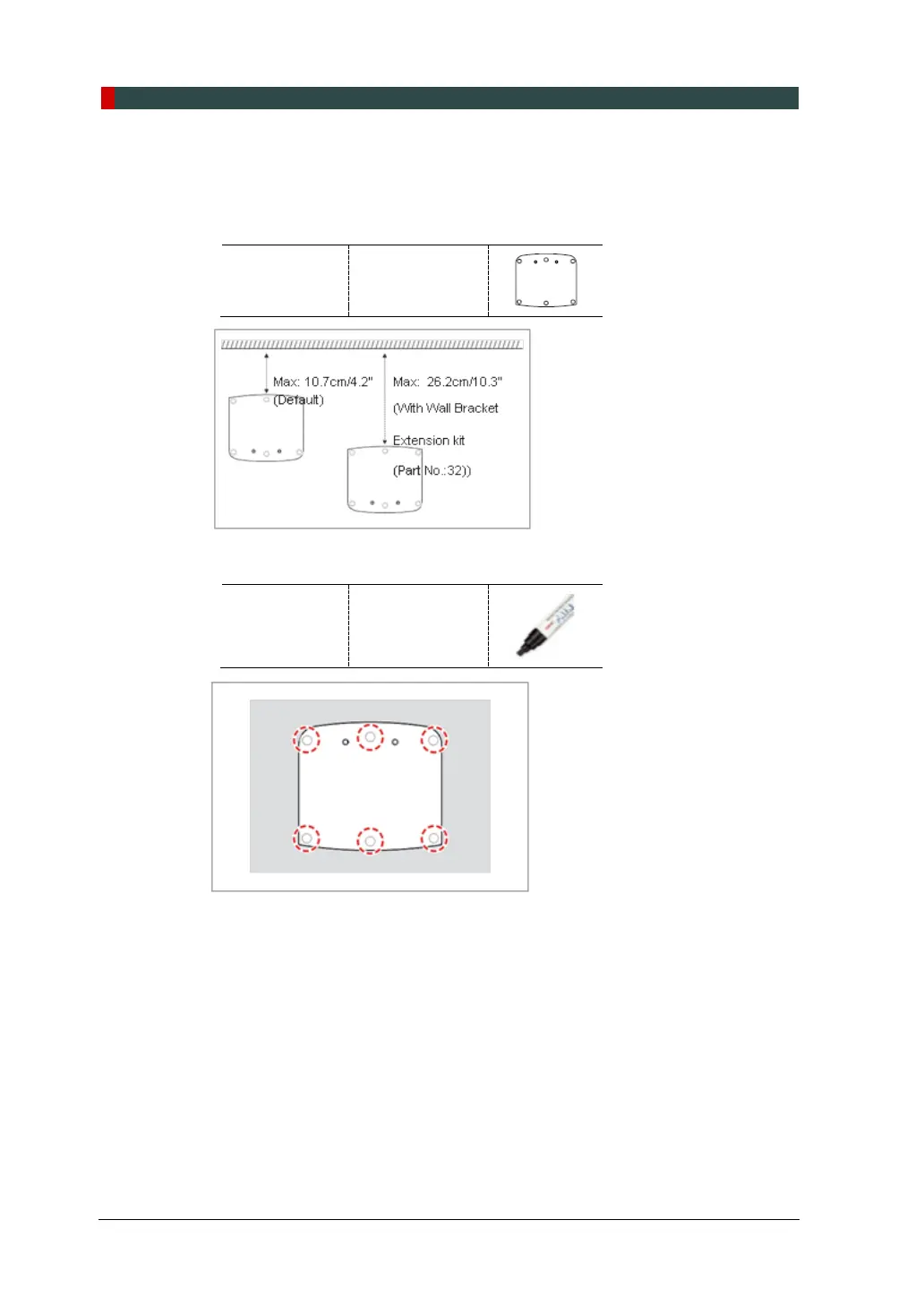

1. Put the aligning plate on the floor near the wall where the equipment should be
installed, as shown in the figure.
Alignment
Plate
(Part No. 4)
2. Mark 6 anchor bolts holes on the floor.
Marker n/a
To Next Page
