5. Installing the Equipment: Wall Mount
Green 16/18 Installation Manual 71

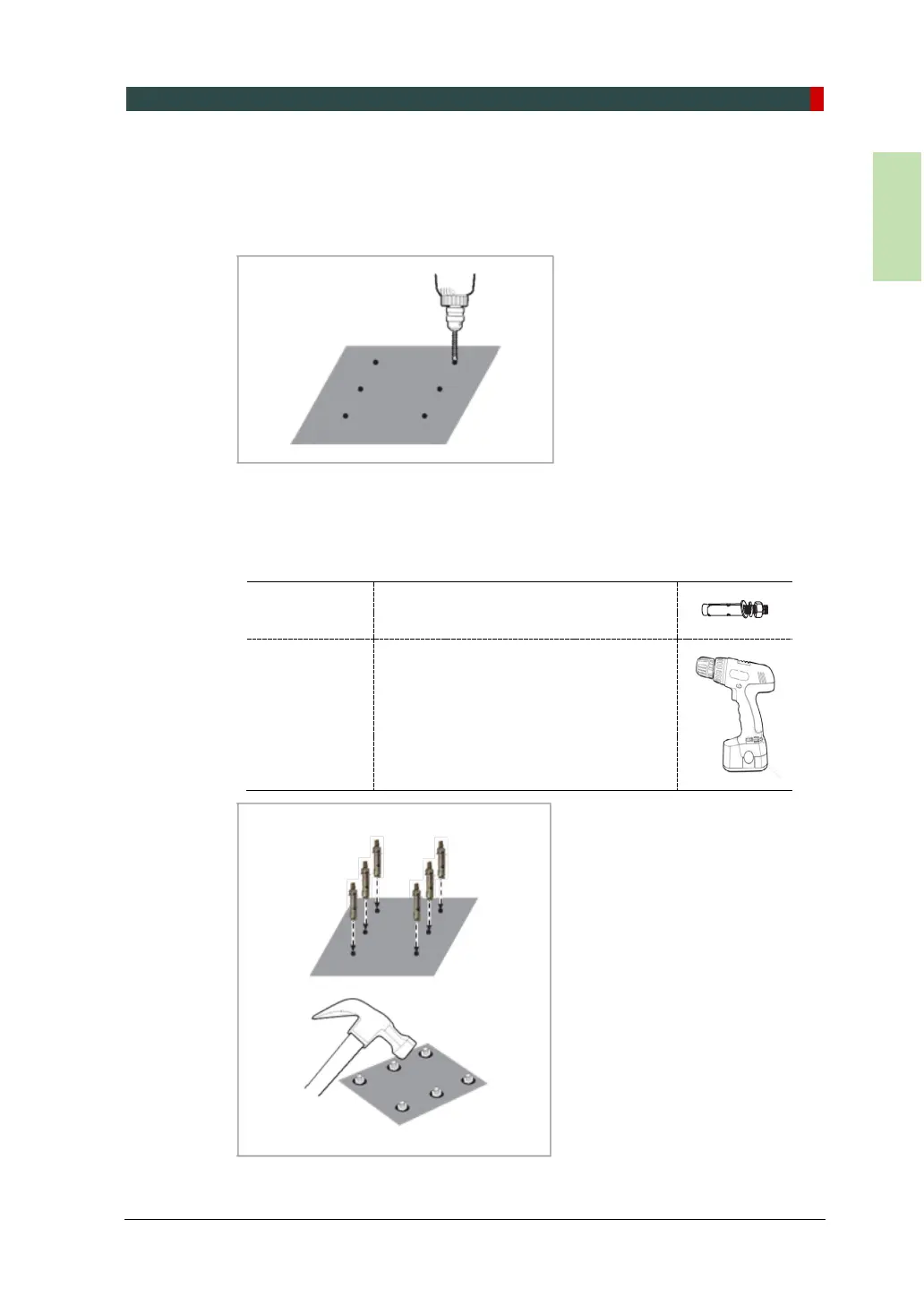

5.1.2 Drilling the Floor
1. Remove the aligning plate.
2. Drill the floor holes (size: 10.5 x 30 mm) by using the concrete hammer drill.
3. Remove the debris and clean the holes with the dust pump.
4. Put the anchor bolts into the holes and attach them with the hammer. Verify that
the anchors are secured.
Anchor Bolt
5/16 x 60 w/ Spring and Flat Washers
2 pcs
Hammer Drill L = 200 mm (7.9”)
To Next Page
