3. Before Installing the System
36 Smart Plus (PHT-35LHS) Installation Manual

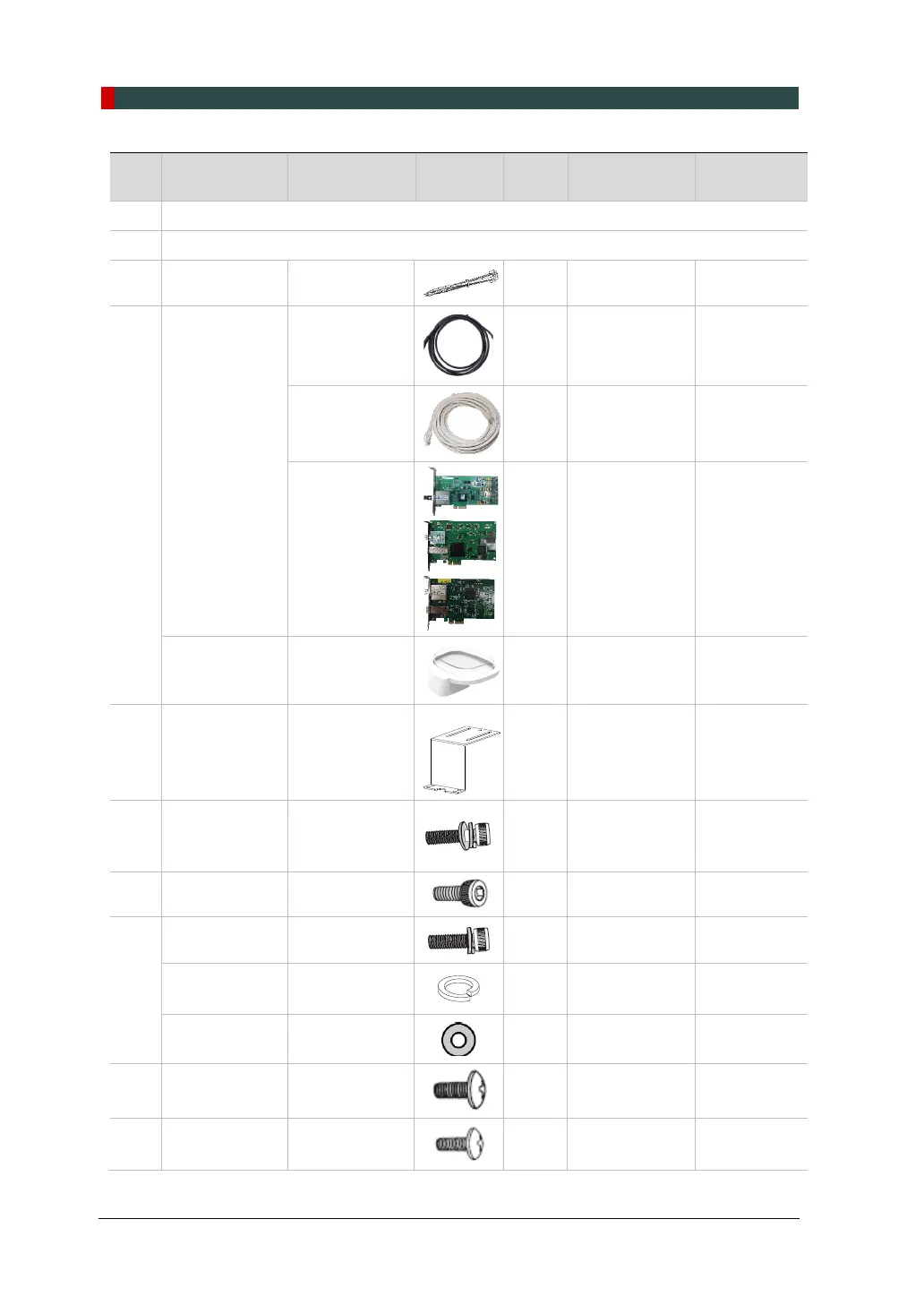

Part
No.
Items Specification Figure QTY Comments
Confirmed
(OK?)
18 Left Blank Intentionally
19 Left Blank Intentionally
20 Cable Tie 10 Yes □ No □
21
Frame
Grabber
System
Optic Cable 1 Yes □ No □
LAN Cable 1 Yes □ No □
IFG Card
(or)
FTG Card
(or)
LEG Card
1 Yes □ No □
MODEL Scan
Jig
1
For the 3D
MODEL Scan
model
Yes □ No □
22
Column
Bracket
1 Yes □ No □
23 Wrench Bolt
M10 x 25
w/ Spring and
Flat Washers
6 Base Option Yes □ No □
24 Wrench Bolt M8 x 45 2 Base Option Yes □ No □
25
Wrench Bolt M8 x 20
4 Yes □ No □
Spring Washer 4 Yes □ No □
C_E_Washer 4 Yes □ No □
26 Truss Bolt M5 x 8 3 Base Option Yes □ No □
27 Truss Bolt M4 x 8 10 Yes □ No □
