5. Installing the Equipment: Wall Mount
66 Smart Plus (PHT-35LHS) Installation Manual

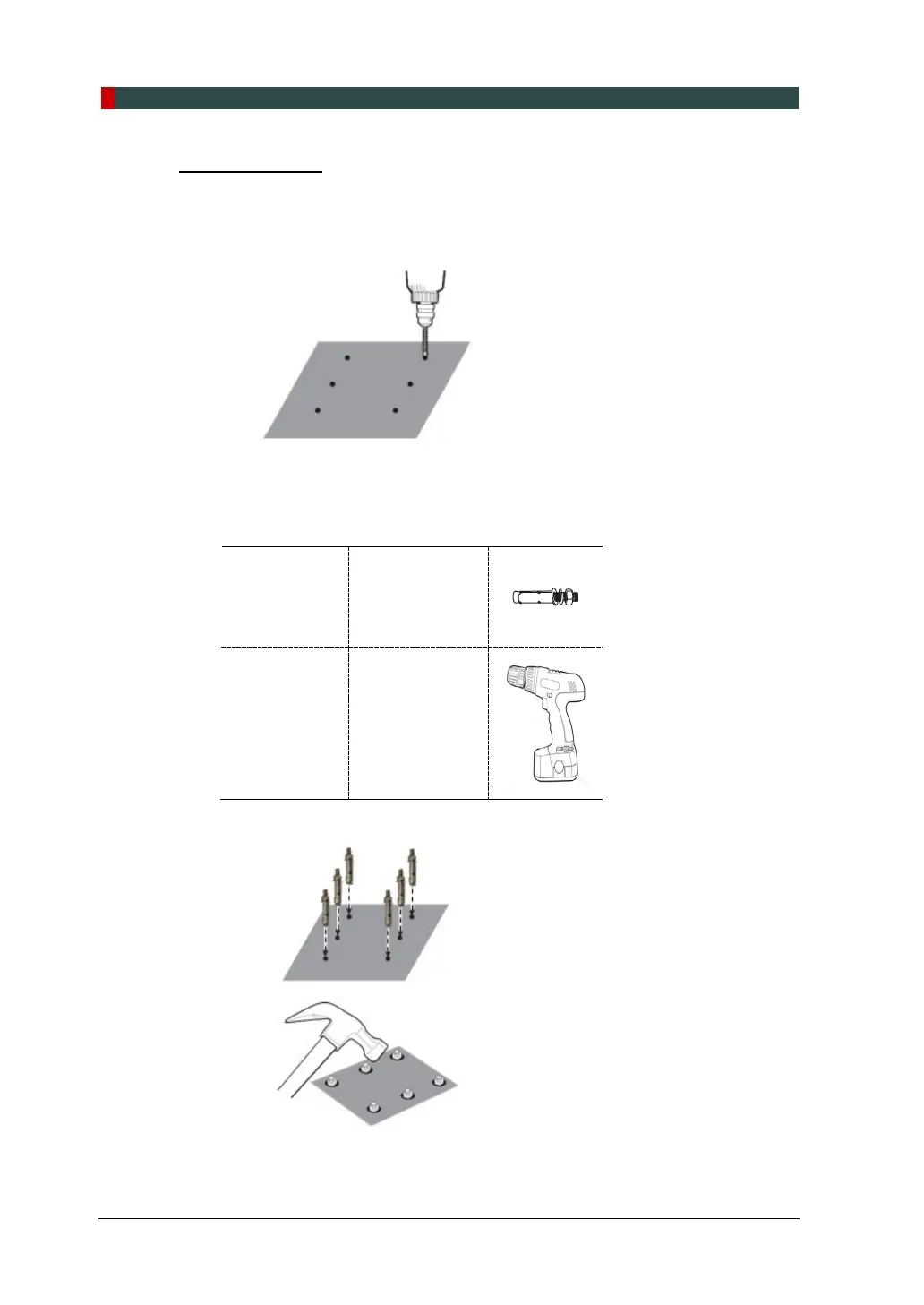

Drilling the Floor
1. Remove the aligning plate.
2. Drill the floor holes (size: 10.5 x 30 mm) by using the concrete hammer drill.
3. Remove the debris and clean the holes with the dust pump.
4. Put the anchor bolts into the holes and attach them with the hammer. Verify that
the anchors are secured.
Anchor Bolt
5/16 x 60 w/
Spring and Flat
Washers
2 pcs
(Part No. 34)
Hammer Drill
L = 200 mm
(7.9”)
To Next Page
