5. Installing the Equipment: Wall Mount
68 Smart Plus (PHT-35LHS) Installation Manual

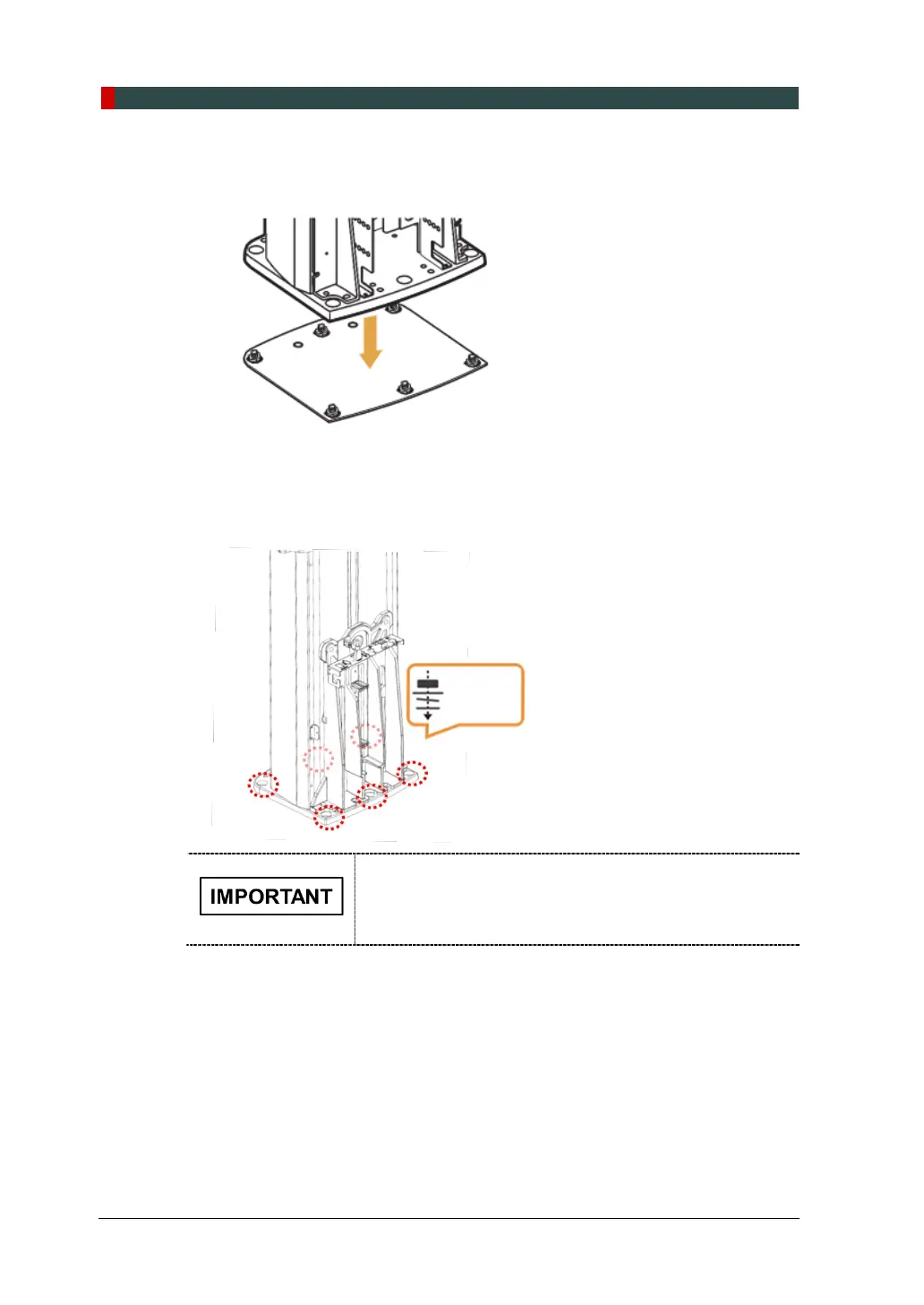

3. Put the Equipment on the aligning plate while making sure that the column bottom
holes engage in the anchored bolts.
4. Put the washers and nuts into the six anchored bolts on the floor and tighten the
nuts loosely. Make sure that you put the fasteners in the sequence as shown in
the figure.
DO NOT tighten the nuts until the leveling is completed.
While one installer is tightening the nuts, the other
installers should hold the middle handle to prevent the
equipment from falling.
