Montaggio
del
coltello
divisore
16.4 Riving knife assembling
16.4
Spaltkeiimontage
N.B. USARE
GUANTI
PROTETTIVI
Dl
PELLE
MORBIDA
E
ROBUSTA
Ogni
volta
che si
monta
una
lama
verificare
la
posizione
del
coltello divisore
(A)
Fig.
15,
rispettando i
parametri
di
misura
da 3
-s-
8
mmFig.15A.
Per
procedere
al
montaggio
od
alia
messa
a
punto
eseguire
accuratamente
le
seguenti
istruzioni:
*
allentare
le
viti
(B)
Fig.
15, che
liberano
il
coltello divisore
sia in
senso
verticale
che
orizzontale
*
*
awicinare
il
coltello divisore
alia
lama
sega:
la
regolazione deve
essere
effettuata
secondo
lo
schema
riportato in *
FJQ.15A
*
stringere
le
viti
(B)
Fig.
15
dopo
avere
effettuato
la regolazione fra
coltello
e *
lama
CAUTION:
ALWAYS
USE
PROTECTIVE
GLOVES
OF
SOFT
BUT
STRONG
LEATHER
TO
HANDLE
THE
BLADE!
Attenzione:
non
esitare
a
sostituire
il
coltello
divisore,
quando
questo
non
garantisca
una
perfetta
planarita.
In
caso,
richiederlo
al rivenditore.
Each
time
you
assemble
a new
blade
it is
necessary
to
check
the riving
knife
position
(A),
fig.
15,
making sure that
the
measurement
parameters
are
comprised
between
3 and 8 mm as
shown
in
fig.
15.
To
assemble
or
adjust
the riving
knife,
accurately follow
the
instructions
here-
under
*
Loosen
the
screws (B),
fig. 15, in
order
to
set the riving
knife motion free
as
well
in
vertical
and in
horizontal;
Place
the riving
knife close
to the
Wade:
adjustment
should
be
made
in the
full
respect
of the
indications
of fig.
15A:
Tighten
the
screws (B),
fig. 15,
again
once
the
perfect adjustment
is
achieved.
Caution:
Immediately
change blade locking screw
when worn
or
defective,
or
anyhow
no
longer
in
such
a
condition
to
guarantee
perfect
planarity.
Please apply
to the
local dealer.

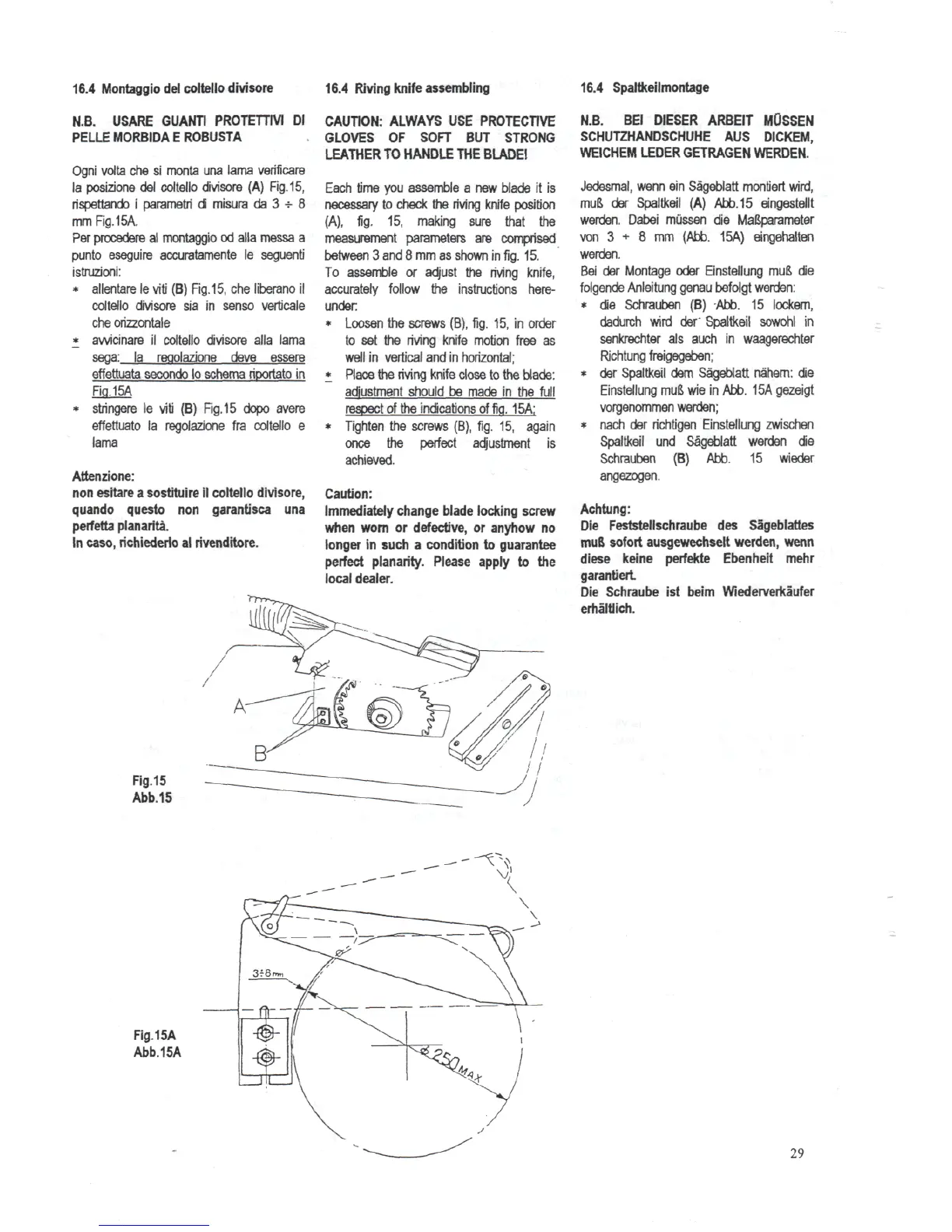

Fig.15
Abb.15
N.B.
BEI
DIESER ARBEIT
MUSSEN
SCHUTZHANDSCHUHE
AUS
DICKEM,
WEICHEM
LEDER GETRAGEN WERDEN.
Jedesmal, wenn
ein
Sageblatt
montiert
wird,
mu&
der
Spaltkeil
(A)
Abb.15
eingestellt
werden.
Dabei
miissen
die
Ma&parameter
von
3
+
8 mm
(Abb. 15A)
eingehalten
werden.
Bei
der
Montage oder
Einstellung
muB
die
folgende
Anleitung genau
befolgt
werden:
* die
Schrauben
(B)
-Abb.
15
lockem,
dadurch
wird der"
Spaltkeil
sowohl
in
senkrechter
als
auch
in
waagerechter
Richtung
freigegeben;
* der
Spaltkeil
dem
Sageblatt
na'hem:
die
Einstellung
muB
wie
in
Abb.
15A
gezeigt
vorgenommen
werden;
*
nach
der
richtigen
Einstellung
zwischen
Spaltkeil
und
Sageblatt
warden
die
Schrauben
(B)
Abb.
15
wieder
angezogen.
Achtung:
Die
Feststellschraube
des
Sageblattes
muB
sofort
ausgewechselt
werden, wenn
diese keine
perfekte
Ebenheit
mehr
garantiert
Die
Schraube
ist
beim
Wiederverkaufer
erhaltlich.
Fig.lSA
Abb.15A
