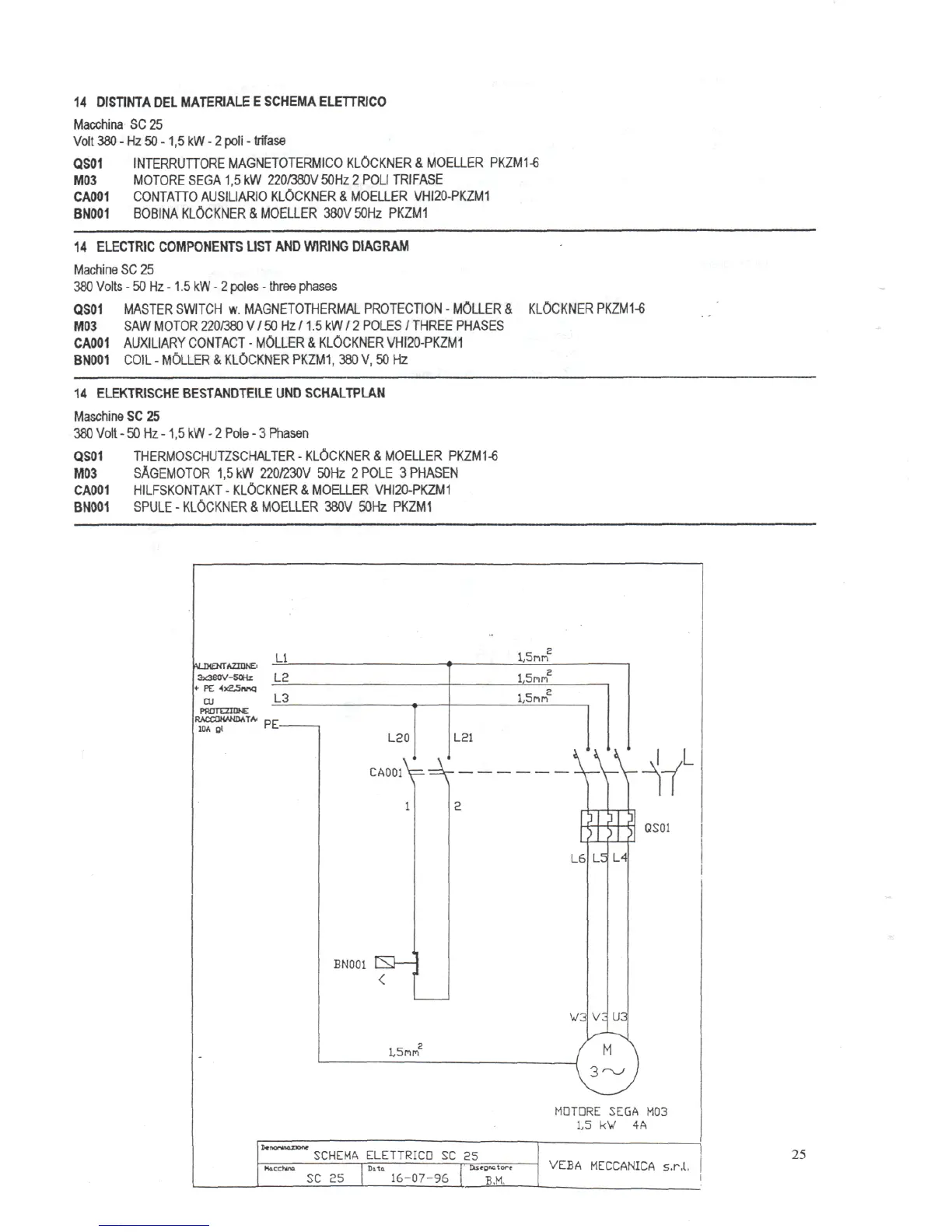

veba SC25 - 14 Electric Components List and Wiring Diagram

14 DIST1NTA DEL MATERIALS E SCHEMA ELETTRICO
Macchina SC 25
Volt 380 - Hz 50 -1,5 kW - 2 poli - trifase
QS01 INTERRUTTORE MAGNETOTERMICO KLOCKNER & MOELLER PKZM1-6
M03 MOTORE SEGA 1,5 kW 220/380V 50Hz 2 POLI TRIFASE
CA001 CONTATTO AUSILIARIO KLOCKNER & MOELLER VHI20-PKZM1
BN001 BOBINA KLOCKNER & MOELLER 380V 50Hz PKZM1
14 ELECTRIC COMPONENTS LIST AND WIRING DIAGRAM
Machine SC 25
380 Volts - 50 Hz -1.5 kW - 2 poles - three phases
QS01 MASTER SWITCH w. MAGNETOTHERMAL PROTECTION - MOLLER &
M03 SAW MOTOR 220/380 V / 50 Hz /1.5 kW / 2 POLES / THREE PHASES
CA001 AUXILIARY CONTACT - MOLLER & KLOCKNER VHI20-PKZM1
BN001 COIL - MOLLER & KLOCKNER PKZM1, 380 V, 50 Hz
KLOCKNER PKZM1-6
14 ELEKTRISCHE BESTANDTEILE UNO SCHALTPLAN
Maschine SC 25
380 Volt - 50 Hz -1,5 kW - 2 Pole - 3 Phasen
QS01 THERMOSCHUTZSCHALTER - KLOCKNER & MOELLER PKZM1-6
M03 SAGEMOTOR 1,5 kW 220/230V 50Hz 2 POLE 3 PHASEN
CA001 HILFSKONTAKT - KLOCKNER & MOELLER VHI20-PKZM1
BN001 SPULE - KLOCKNER & MOELLER 380V 50Hz PKZM1
LI
3x380V-50Hl
CU
PRDTEZIDNE
RACCOMANDATAi
IDA Ql
L2
L3
£
L20
2
l,5nm
\
CAOOl
BN001
QS01
L6
vs v;
L5
LA
MQTDRE SEGA M03
1,5 kV 4A
SCHEMA ELETTRICD SC E5
SC 25
16-07-96
B.M.
VEBA MECCANICA s.r.l.
25
