VECTRIX VX-2 SERVICE MANUAL

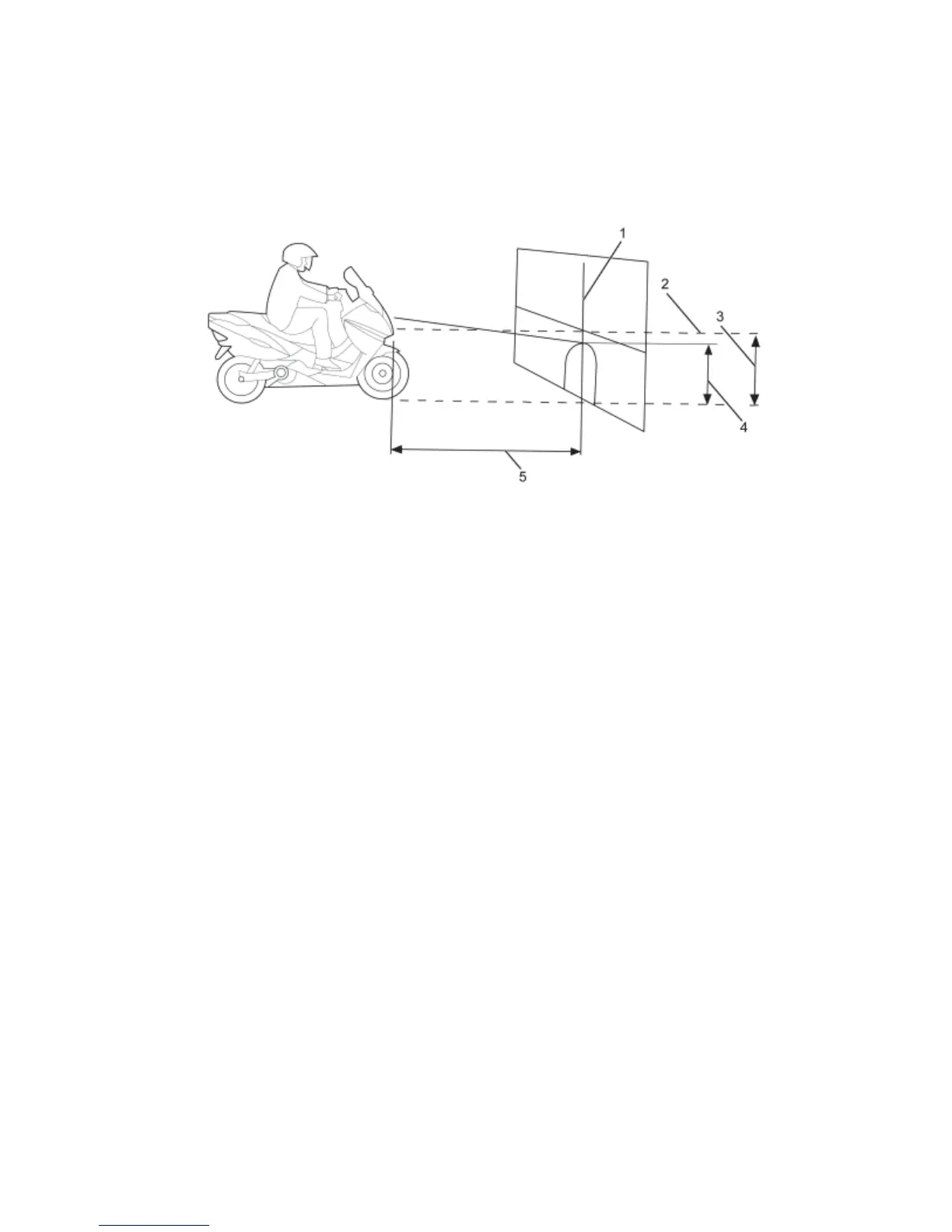

Headlamp Aiming Procedure
1. Position the scooter square with the screen, with the headlamp directly over the 10 m (33 ft)
reference line (5).
2. Ensure that the vehicle is on a level surface.
3. Draw a horizontal reference line (2) that is in the center of the headlamp.
4. Draw a vertical reference line (1) that is in line with the scooter axis.
5. With the headlamp low beam on the height spot (4) should 9/10th of the headlamp center line
(3).
Adjusting the headlamp
1. To adjust the light beam up and down turn the right lower side adjustment screw. Clockwise
to raise the beam and counterclockwise to lower the beam.
2. To adjust the light beam side-to-side turn the upper left adjustment screw. Clockwise to move
the beam to the right and counterclockwise to move the beam to the left.
