V-Touch AFAD
MAN-13
User’s Manual
39 Version 2.1
This chapter presents the features and functionalities available in version 1.x of the V-Touch AFAD.
Before the V-Touch can be used, the unit must have been deploy according to instructions in its
Operation, Safety and Maintenance manual.
7.1 Exploring the Home Screen

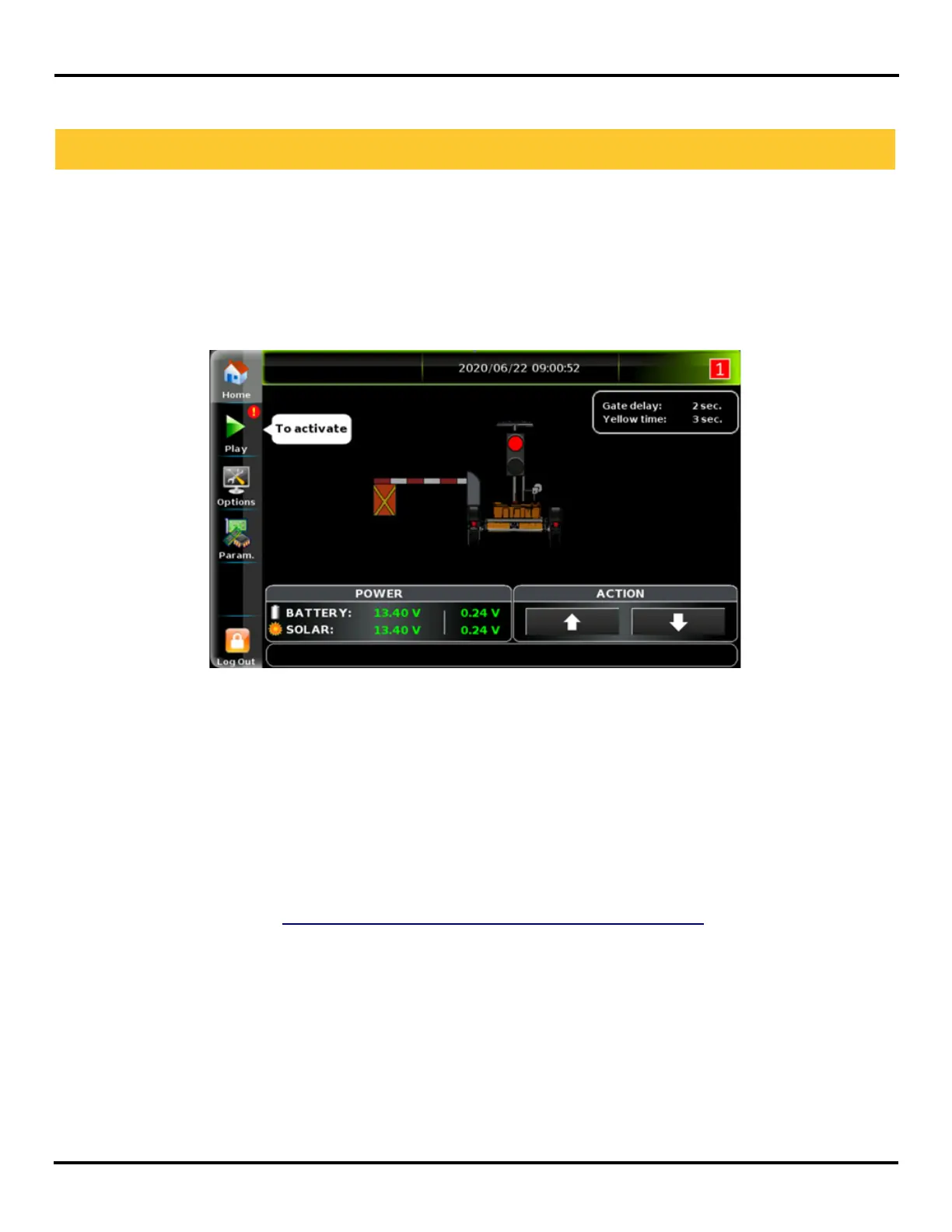

Figure 7-1 Home screen before activation
What you see
Buttons on the left side of the screen (see Table 1).
In the center, an image of the Flagger-Mac
Toward the bottom the supply voltages as well as two buttons for the manual activation of the
Flagger-Mac.
The operation error status (if the case) completely at the bottom, in red. The possible status
errors are in section 8 Troubleshooting Version 1.x of the V-Touch AFAD
.
