VERITAS NetBackup 5230 Hardware Installation Guide

5

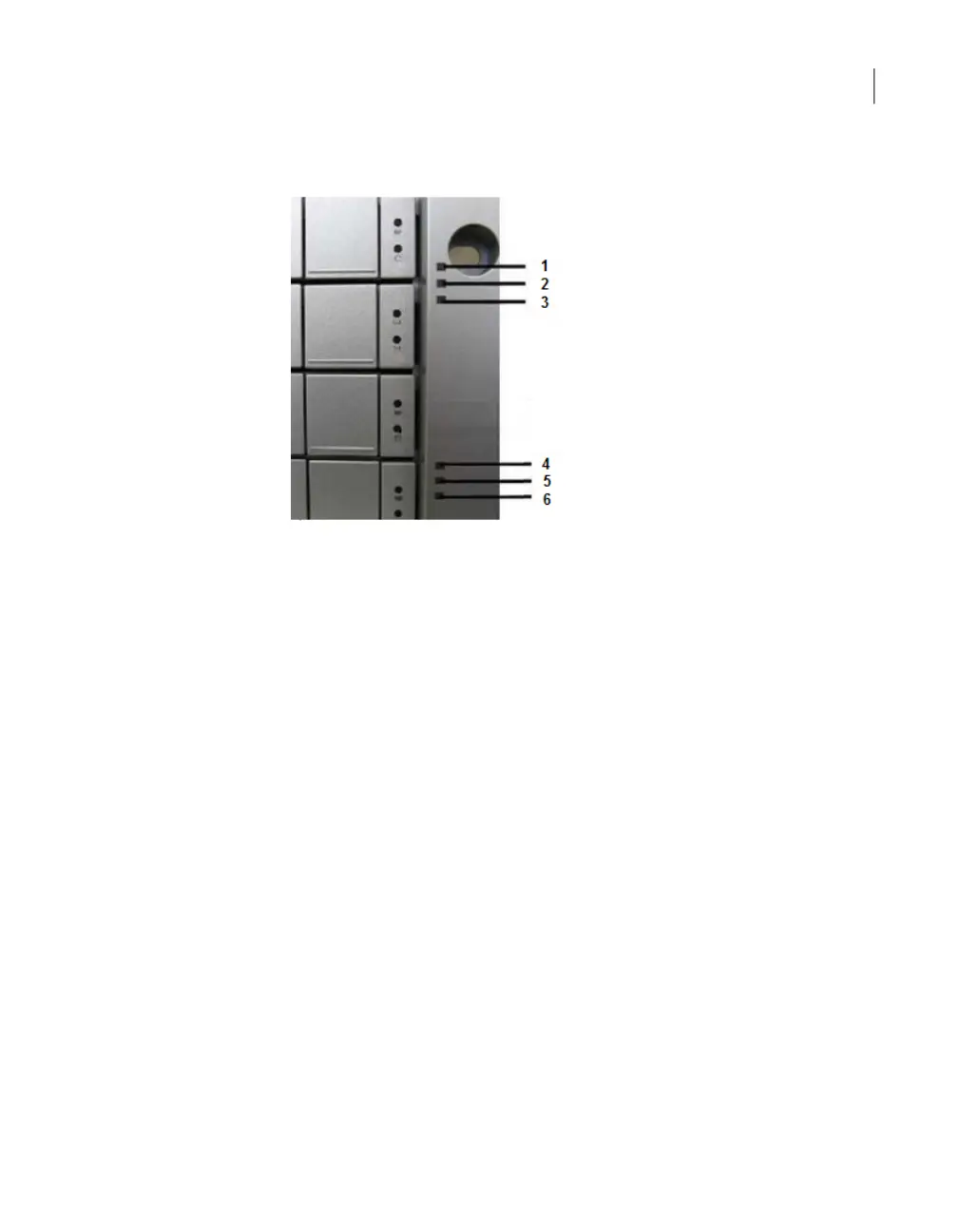

Move to the front of the storage shelf to check the system LEDs.
DescriptionStateSystem LEDs
Off
On
Not lit
Solid green
1 - Power
Off
On
One power supply offline
Both power supplies offline
Not lit
Solid green
Amber
Red
2 - Global enclosure status
N/AN/A3 - Reserved (N/A)
No activity
Activity
Not lit
Flashes green
4 - I/O Module 1
No activity
Activity
Not lit
Flashes green
5 - I/O Module 2
System off
Normal operation
Not lit
Flashes green
6 - Heartbeat
6
When all of the storage shelves are operational, turn on the appliance if needed.
76Adding 3U16 storage shelves to an operational NetBackup 5230 Appliance
Turning on the hardware and verifying operation
