The 5 kVA to 10 kVA models ship with the POD installed. This POD includes the input circuit breaker for the UPS, and the
features for each POD are detailed in the following figures.

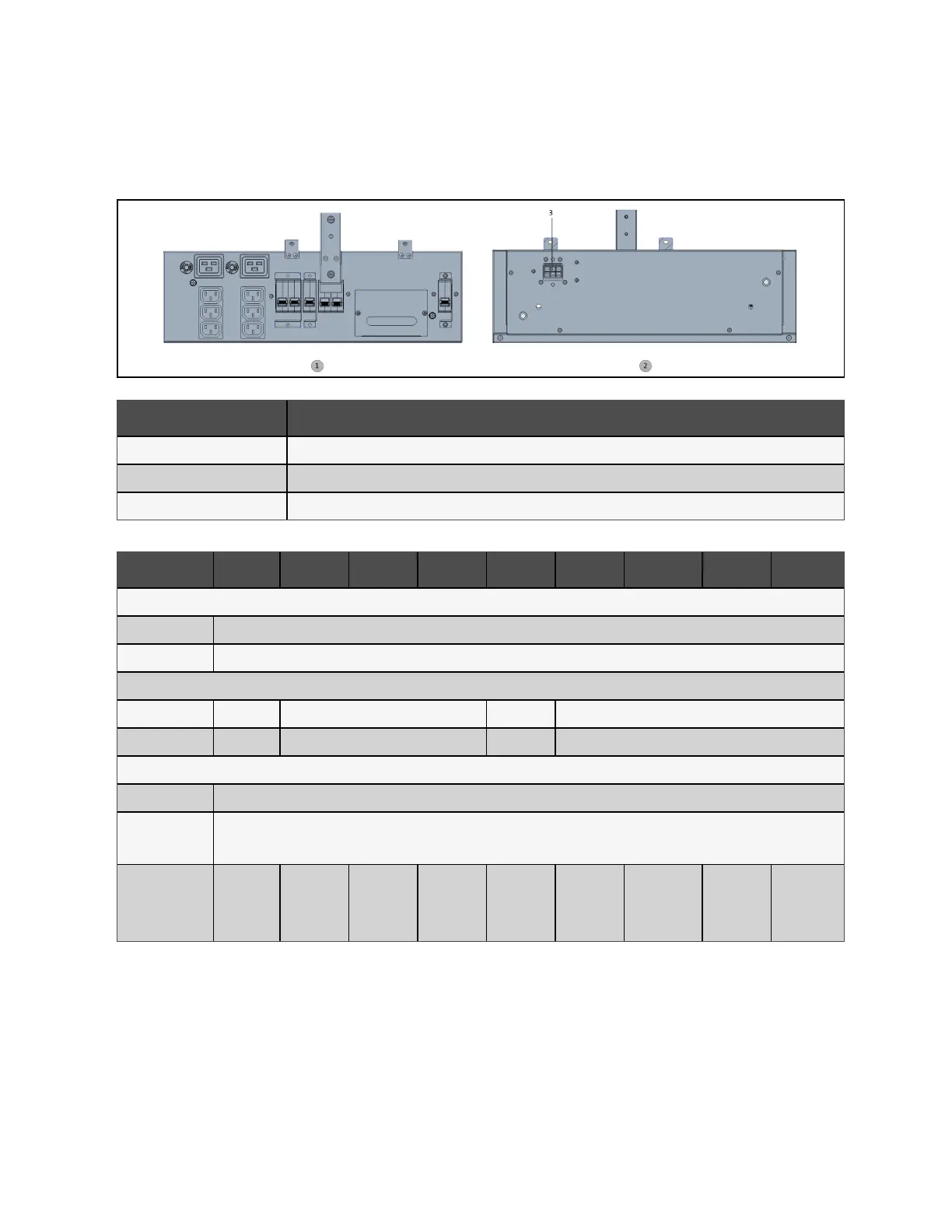

Figure 2.14 PD5-CE6HDWRMBS for GXT5-5000/6000IRT5UXLN (XLE)
Item Description
1 POD Panel view (on rear of unit)
2 POD inner-surface view
3 Quick connect
Model PD2- 101 102 103 104 105 106 107 108 109
Dimensions, D×W×H, in. (mm)
Unit 7.4 × 5.7 (188 × 145)
Shipping 11.9 × 20.6 × 8.7 (302 × 522 × 220)
Weight, lb. (kg)
Unit 4.4 (2) 6.6 (3) 4.4 (2) 6.6 (3)
Shipping 6.6 (3) 8.8 (4) 6.6 (3) 8.8 (4)
Electrical Specifications
Amp Rating 2-pole 60 A input breaker
Input Power
Connection
Custom connector
3W + G (L-L-N-G) to UPS
Ouput Power
Connection
"(2) L6-
30R
(8) 5-20R"
"(4) L6-20R
(4) 5-20R"
"(4) 5-20R
(4) L6-30R"
"(4) 5-20R
(2) L6-30R
(2) L6-20R"
"(4) 5-20R
(2) L6-30R
(2) L6-20R"
"(4) L6-20R
(4) 5-20R"
"(4) L5-20R
(4) 5-15 /20R
"
"(2) L6-20R
(2) L6-30R"
"(2) L14-
30R"
Table 2.2 POD Specifications for 8 kVA to 10 kVA Models
