Vertiv Liebert GXT5 - Terminal Block Connections: 8 & 10 kVA Models; Terminal Block Connections: 16 & 20 kVA Models

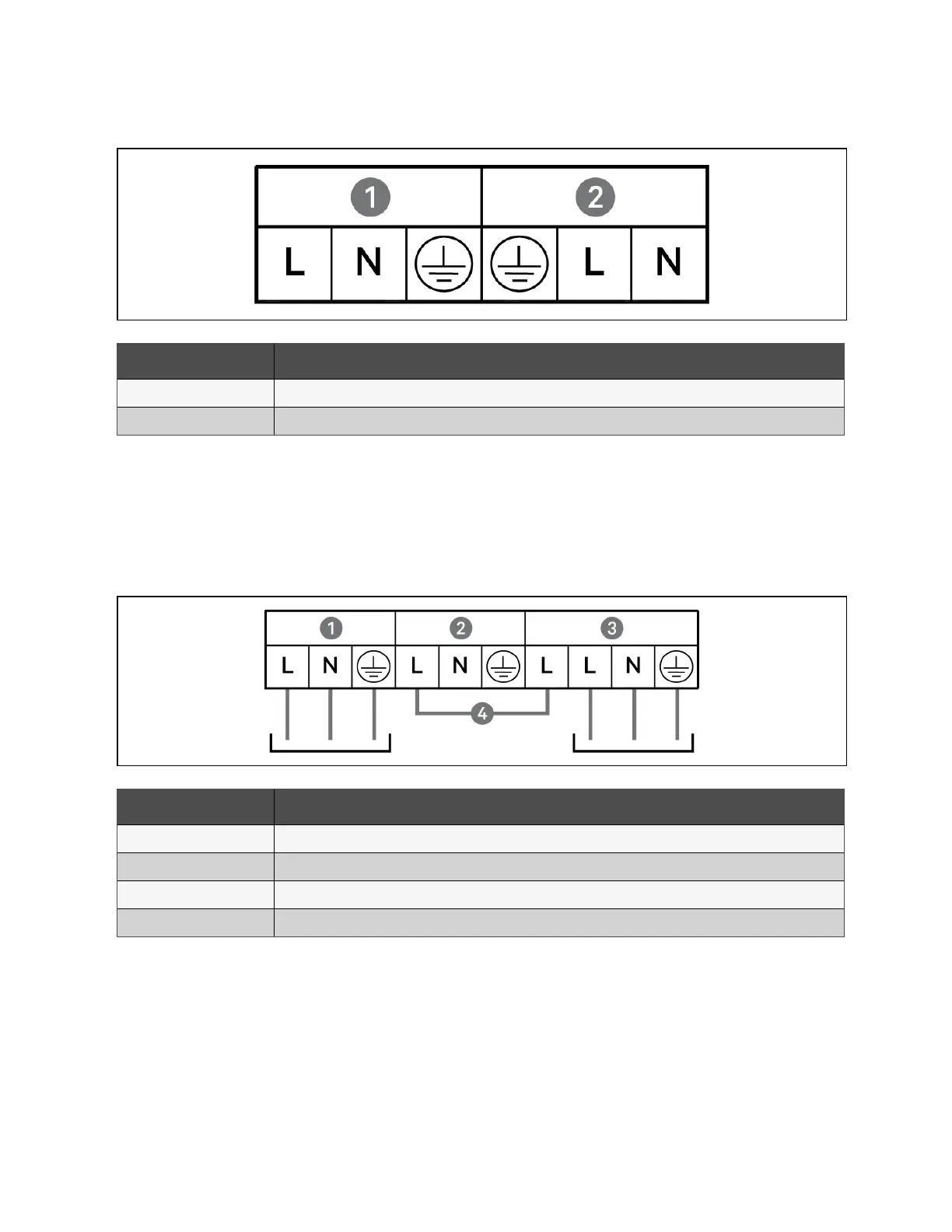

Figure 3.6 Terminal Block 5 kVA and 6 kVA Models
Item Description
1 Output
2 Input
3.6.4 Connecting to Terminal Blocks on 8 kVA and 10 kVA Models
These models offer a single type of I/O connection. A single shorting cable ships installed on the on the terminal block. Refer
to the details in Terminal Block Connections on page38, when making the connections. Figure 3.7 below , shows the shorting
cable installed for a split-bypass connection.
Figure 3.7 Terminal Block 8 kVA to 10 kVA Models
Item Description
1 Output
2 Bypass
3 Input
4 Shorting cable (installed at factory)
3.6.5 Connecting to Terminal Blocks on 16 kVA and 20 kVA models
These models offer a four types of I/O connection. One shorting cable (W01) ships installed on the terminal block.
Two additional shorting cables are included with the accessories to wire the different types Figure 3.8 on the facing page,
shows the terminal block. Refer to the details in Terminal Block Connections on page38, when making the connections.
• Figure 3.8 on the facing page, shows the 3-in 1-out common source connection
• Figure 3.9 on the facing page, shows the 1-in 1-out split-bypass connection
40 Proprietary and Confidential ©2024 Vertiv Group Corp. 3 Installation
Vertiv™ Liebert® GXT5 UPS Installer/User Guide
