• Figure 3.10 on the next page, shows the 1-in 1-out common source connection

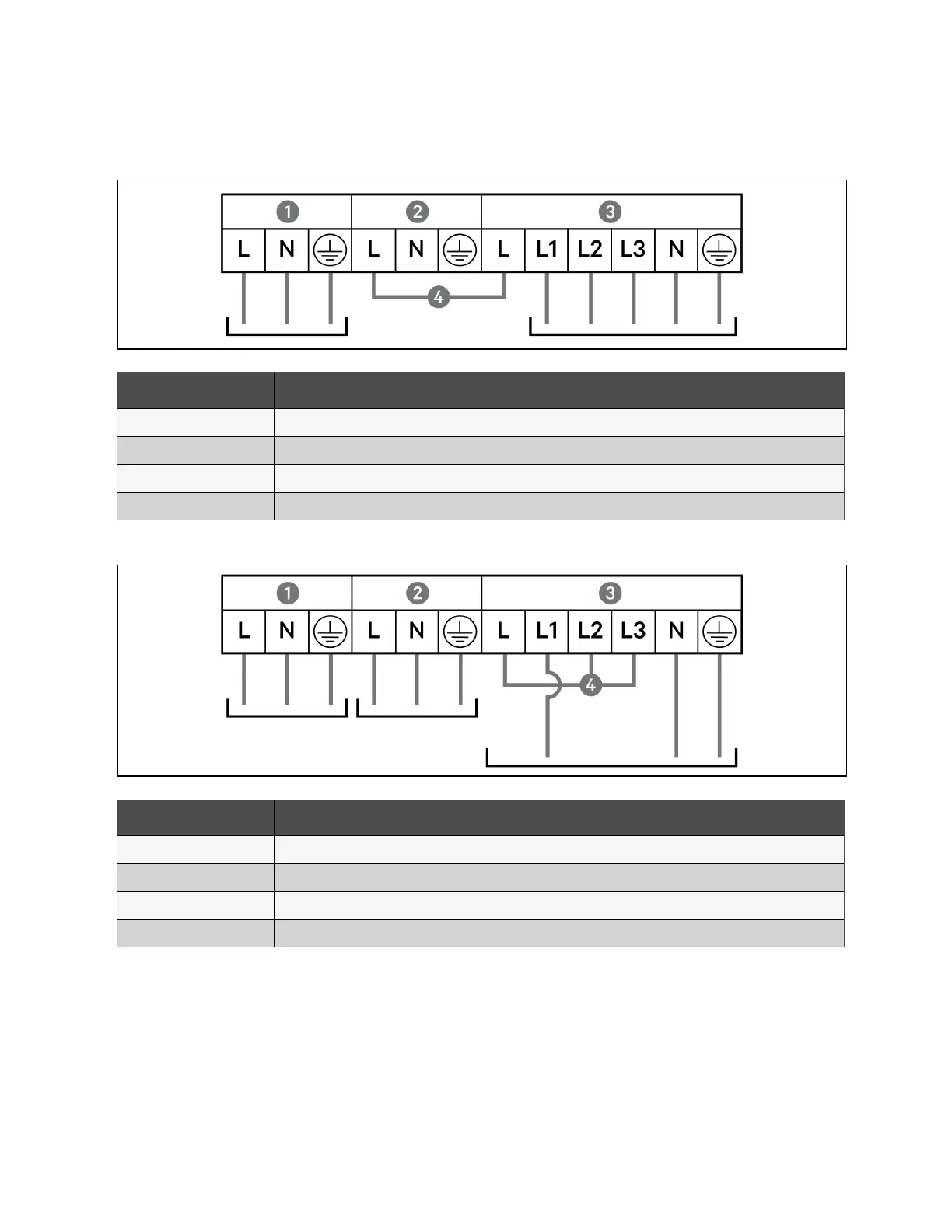

Figure 3.8 3-in 1-out Common Source Connection, 16 kVA and 20 kVA Models
Item Description
1 Output
2 Bypass
3 Input
4 Shorting cable (W01), installed at factory
Figure 3.9 1-in 1-out Split Bypass Connection, 16 kVA and 20 kVA Models
Item Description
1 Output
2 Bypass
3 Input
4 Shorting cable (W02), included with accessories
3 Installation Proprietary and Confidential ©2024 Vertiv Group Corp. 41
Vertiv™ Liebert® GXT5 UPS Installer/User Guide
