5 Operation and Display Panel
The operation/display panel includes LED indicators, function keys, and an LCD interface to configure and control UPS
operation.
IMPORTANT! Do not rotate display. UPS has a gravity sensor function.

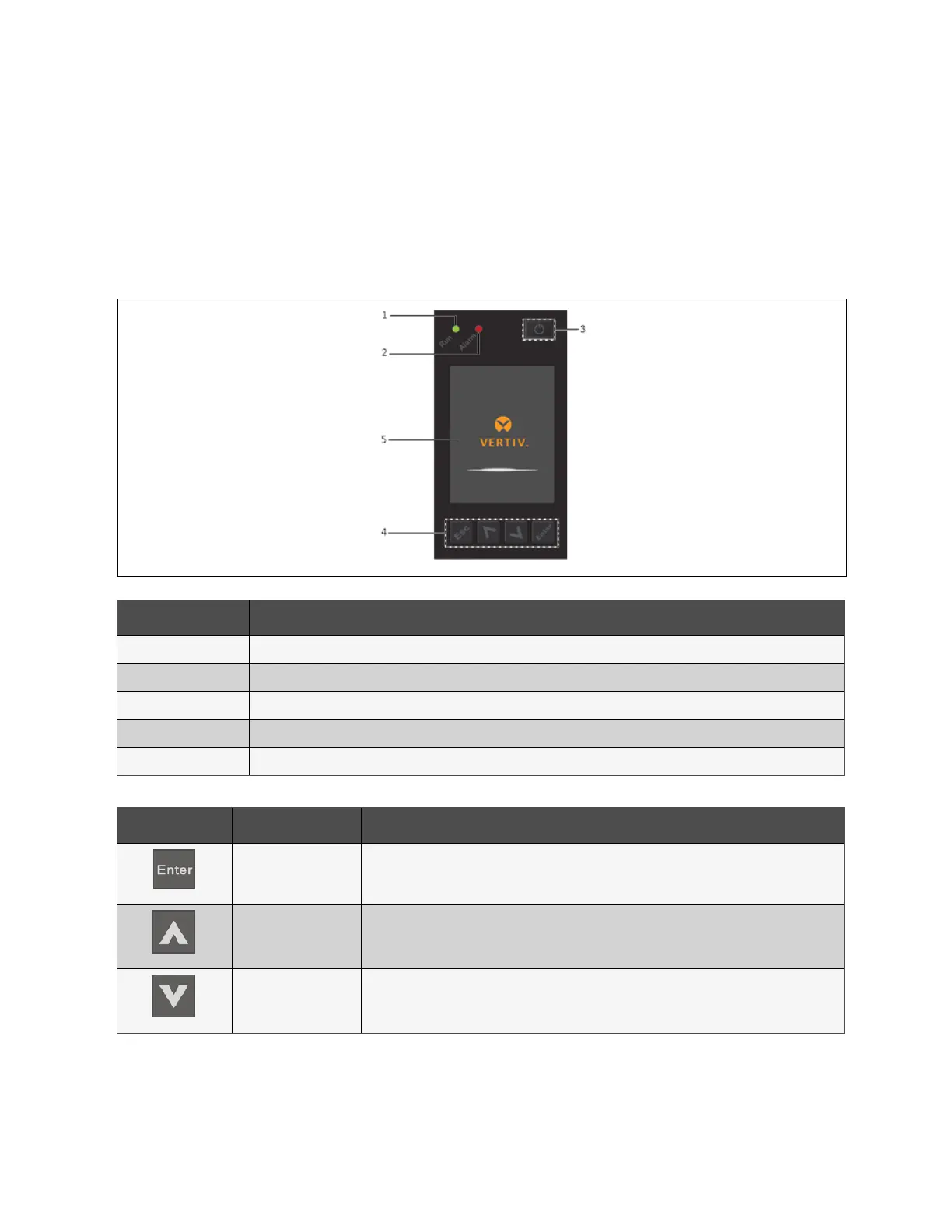

Figure 5.1 UPS Front panel Display
Item Description
1 Run indicator LED, see LED Indicators on the next page.
2 Alarm indicator LED, see LED Indicators on the next page.
3 Power button, see Table 5.1 below.
4 Menu keys, see Table 5.1 below.
5 LCD panel.
Button Function Description
Enter Confirm or enter selection.
Up Move to previous page, increase value, move left.
Down Move to next page, decrease value, move right.
Table 5.1 Display Panel Button Functions and Descriptions
