To connect the gateway to the SRC control board:
1. On the SRC evaporator/indoor unit, remove the shell to access the electrical section in the
right-hand side:
• Lift the top door, exposing the filter section, the door to the electric box, and the screws
that fasten the shell.
• Remove the screws shown in Figure 4.2 below.
• Carefully lift the top section slightly, locate the wiring to the LEDs on the front-right of the
unit, and disconnect the cable connectors to the LEDs.
• Remove the top shell, then the bottom shell sections.

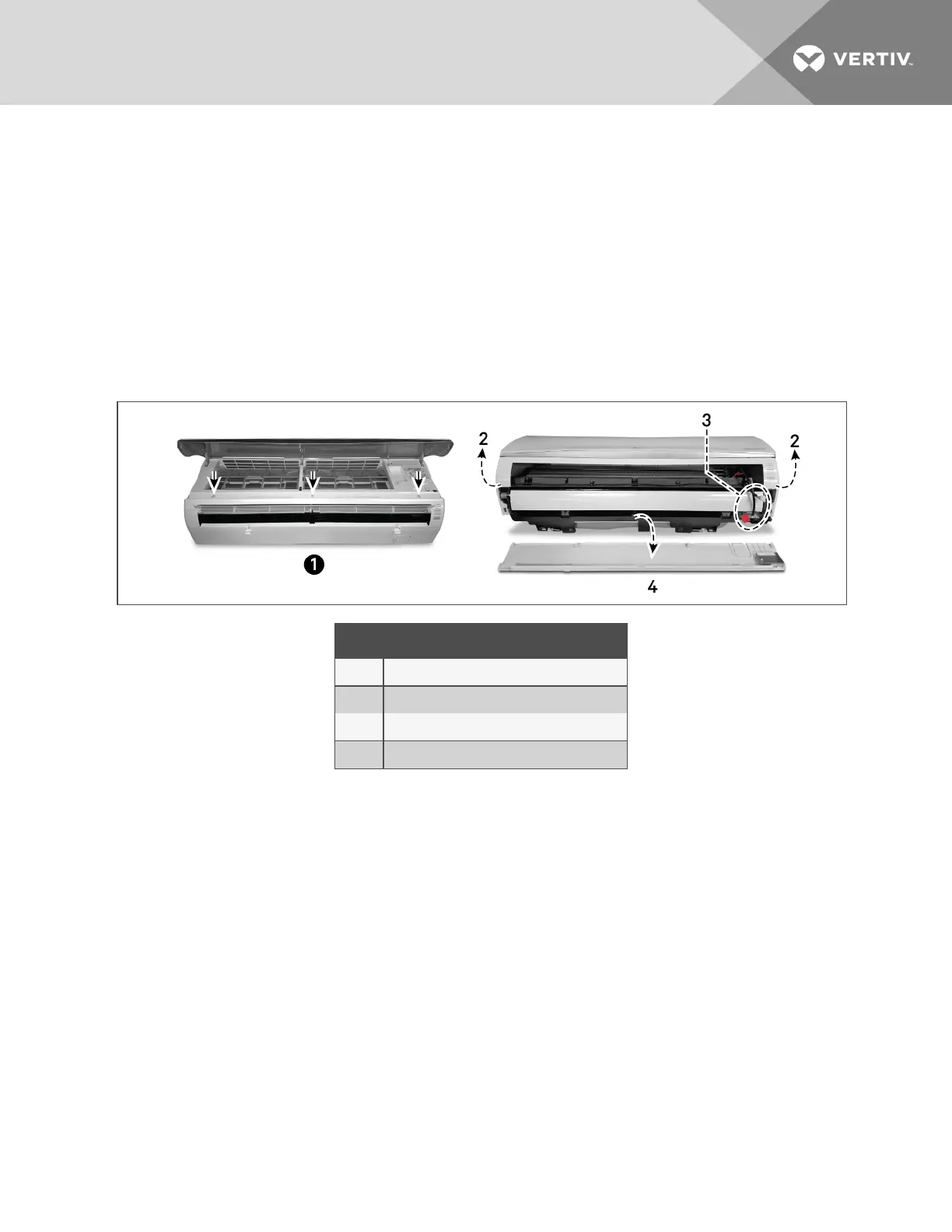

Figure 4.2 Removing SRC shell
ITEM DESCRIPTION
1 Top door lifted. Fastening screws exposed.
2 Lift top section.
3 LED wiring to disconnect.
4 Pull down bottom section.
4 Installing and Connecting iCOMCMS
37
