2. Depending on your unit model, locate the electrical panel on the right-hand side of the unit:
• SRC18 models: Lift the panel covering the control board on the right-hand side of the
unit, shown Figure 4.3 below.
• SRC24 and SRC36 models: Remove the terminal strip before attempting to lift the panel
by removing the single screw beneath the label on the terminal strip, see Figure 4.3
below.
3. Referring to Figure 4.3 below, lift the control board straight up to access the CN-CC plug
connection.
NOTE: You do not need to fully unplug and remove the control board to make the connection, but
because there is very little space in the electrical section, you may remove some plug connections from
the board for easier access. The plug connections are color coded, so reconnecting to the original plug
is simple.

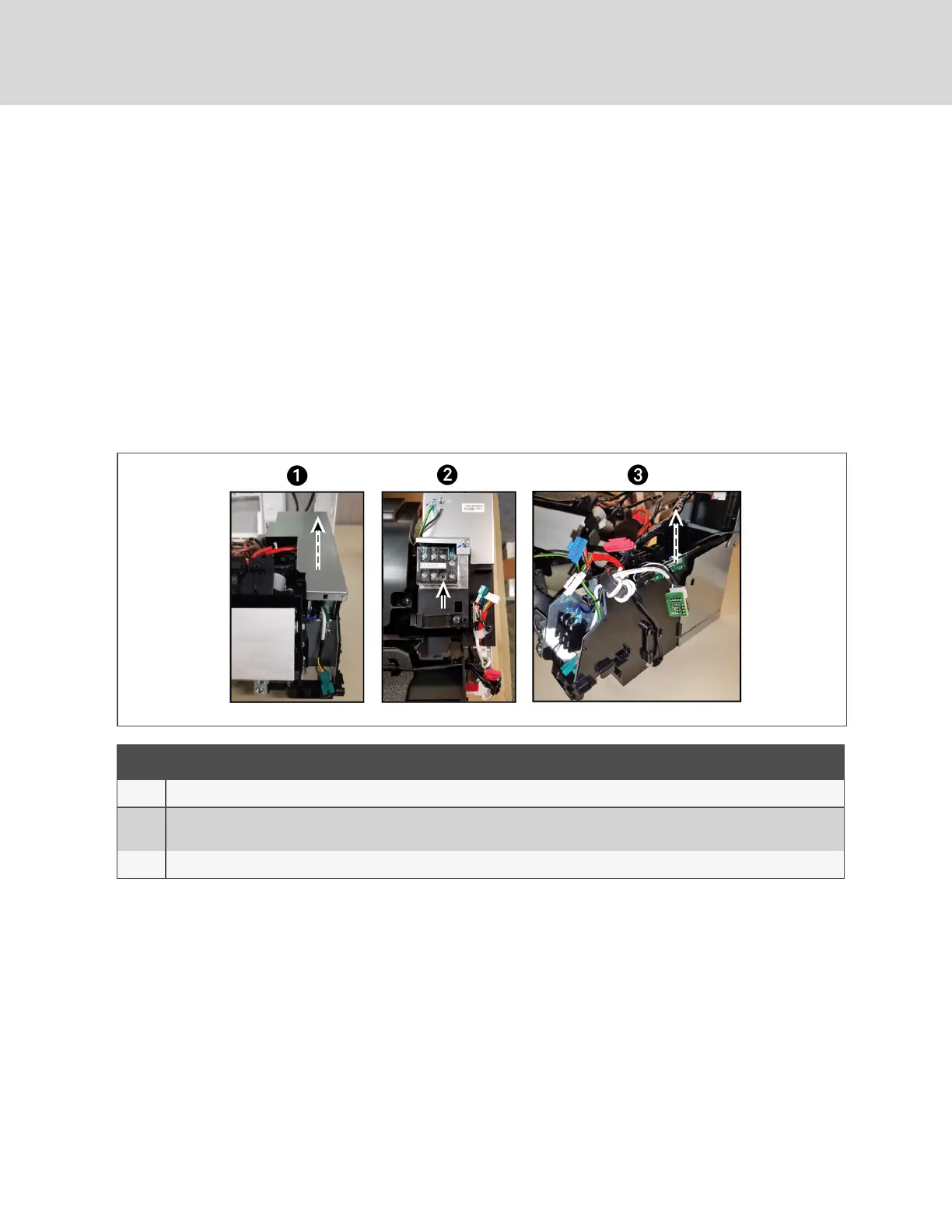

Figure 4.3 Accessing the SRC control board
ITEM DESCRIPTION
1 On SRC18: Lift panel covering control board.
2
On SRC24 or SRC36: Remove the screw in the terminal strip, remove the terminalstrip, then lift the panel covering control
board.
3 Lift control board straight up.
Vertiv™ | Liebert® iCOM CMS™ Intaller/User Guide
38
