Product Overview
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
P 2 0 9 0 D C 1 N 2 H S 1 2 L 1 D 0 0 0 C E 0 0 0
Digit 14 Filtration Digit 24 Order Identifier
2 G4 0 None
3 F5 1 SFA Included
Digit 15 Coil and Valves Digit 25 Order Identifier
L
CW Coil, Standard Pressure MBV (� 1.6
Mpa)
0 None
1 SFA Included
H CW Coil, High Pressure MBV
The standard components are represented in ‘Bold Italic’ font in Table 1-1.
1.4. Components of PEX+CW Model
An overview of the main components, optional components and features of the Liebert® PEX+CW is mentioned
in this section. Liebert PEX+CW components include indoor unit, outdoor unit, and remote monitoring software.
Figure 1-2 shows main components of PEX+ model.
No. Description No. Description
1 Filter 4 Fan
2 Cooling Coil 5 Control Board
3 Heater 6 Infrared Humidifier

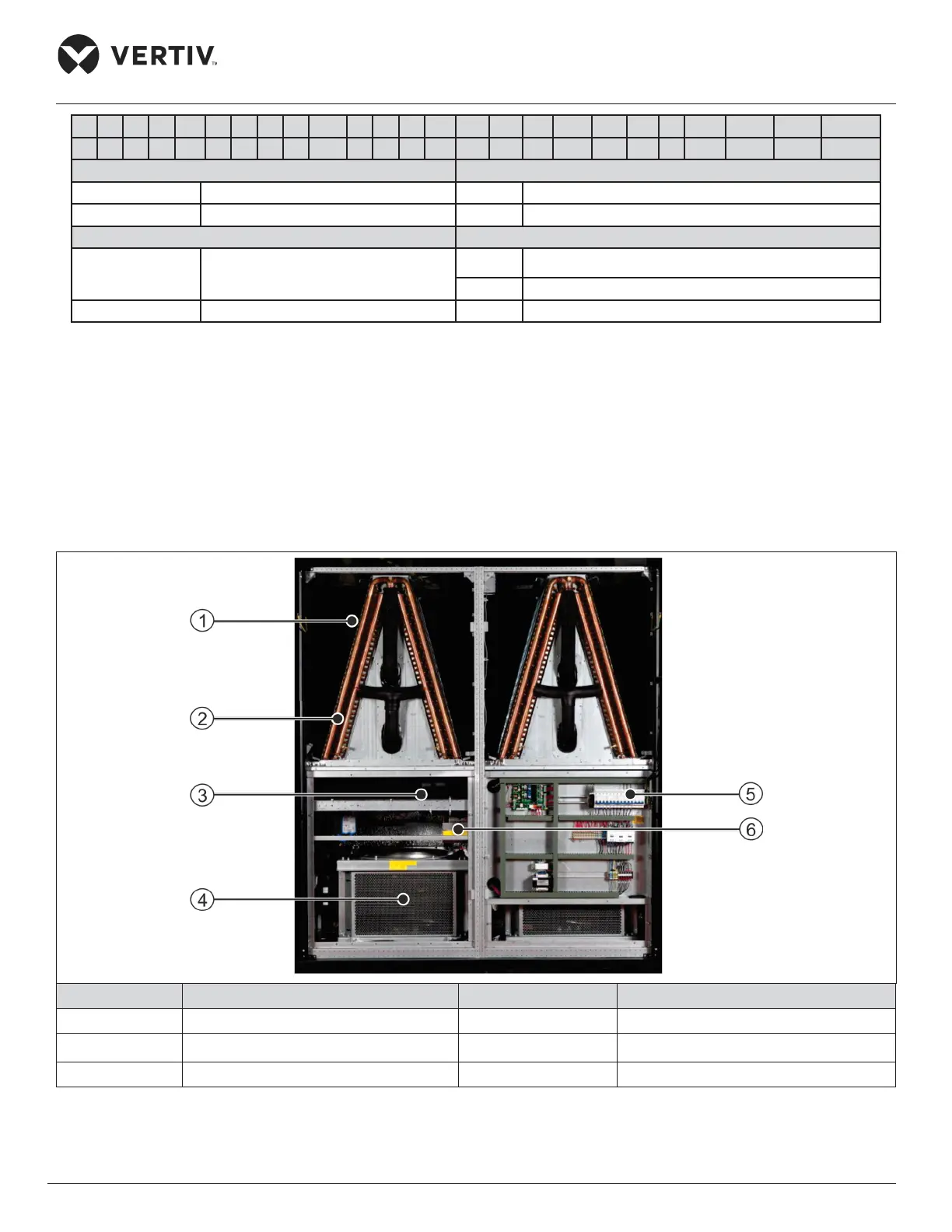

Figure 1-2 Main Components of PEX+CW Model
