Vertiv | Liebert PEX+ Chilled Water | User Manual 27
Installation
2.4.3. Plenum Dimension (for Upflow)
Following are the plenum dimension for Liebert® PEX+CW series upflow units as per one, two and three bays as
shown in Figure 2-15, Figure 2-16, Figure 2-17 and in Table 2-6 respectively.

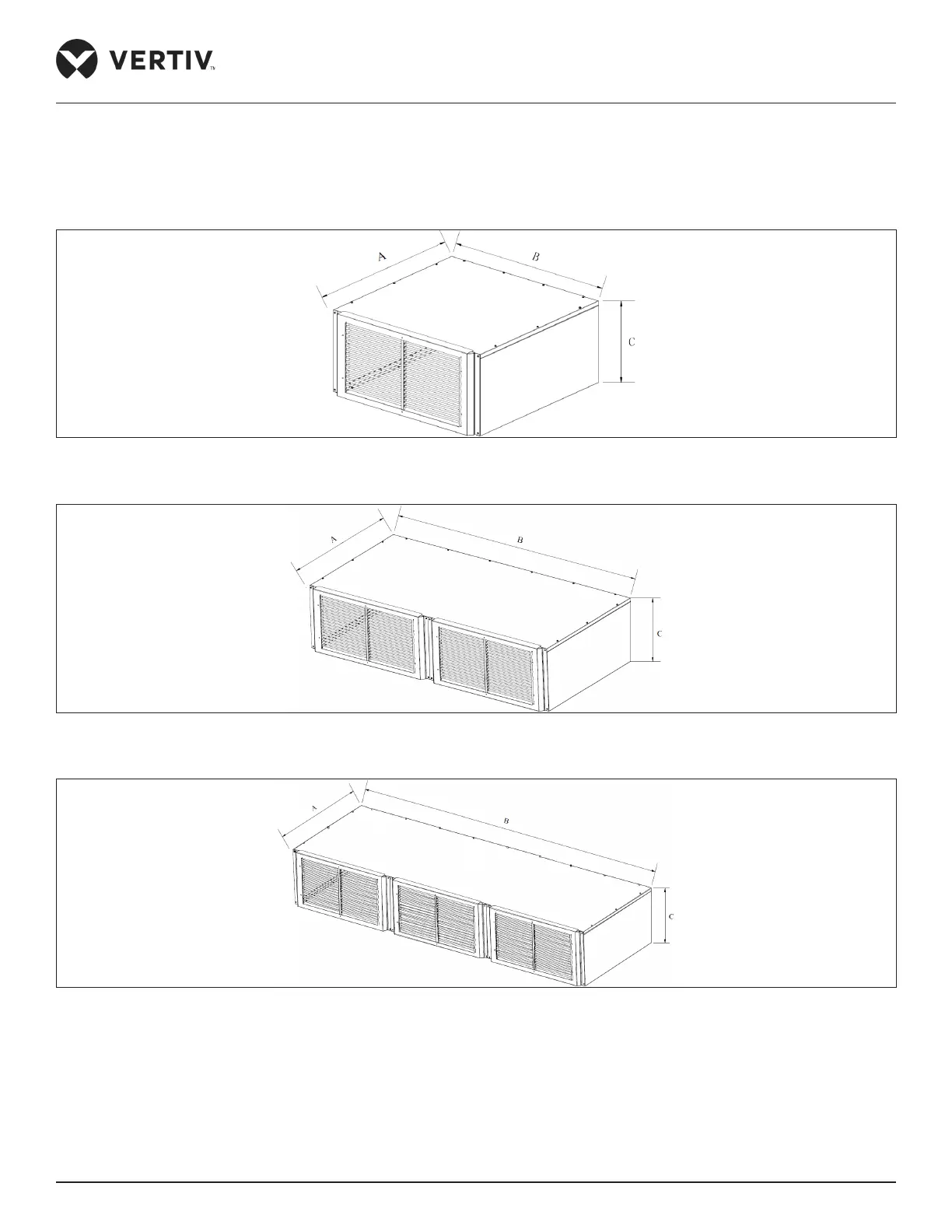

Figure 2-15 Plenum Dimensions of P1030 and P1060 Upflow Unit
Figure 2-16 Plenum Dimensions of P2070 toP2140 Upflow Unit
Figure 2-17 Plenum Dimensions of P3160 to P3200 Upflow Unit
