2.4. Position and Dimension of Air Outlet on Top Cover
The position and dimensions of cut-out of the all models of PEX+CW upflow units are shown in Figure 2-11 and in
Table 2-4 respectively.

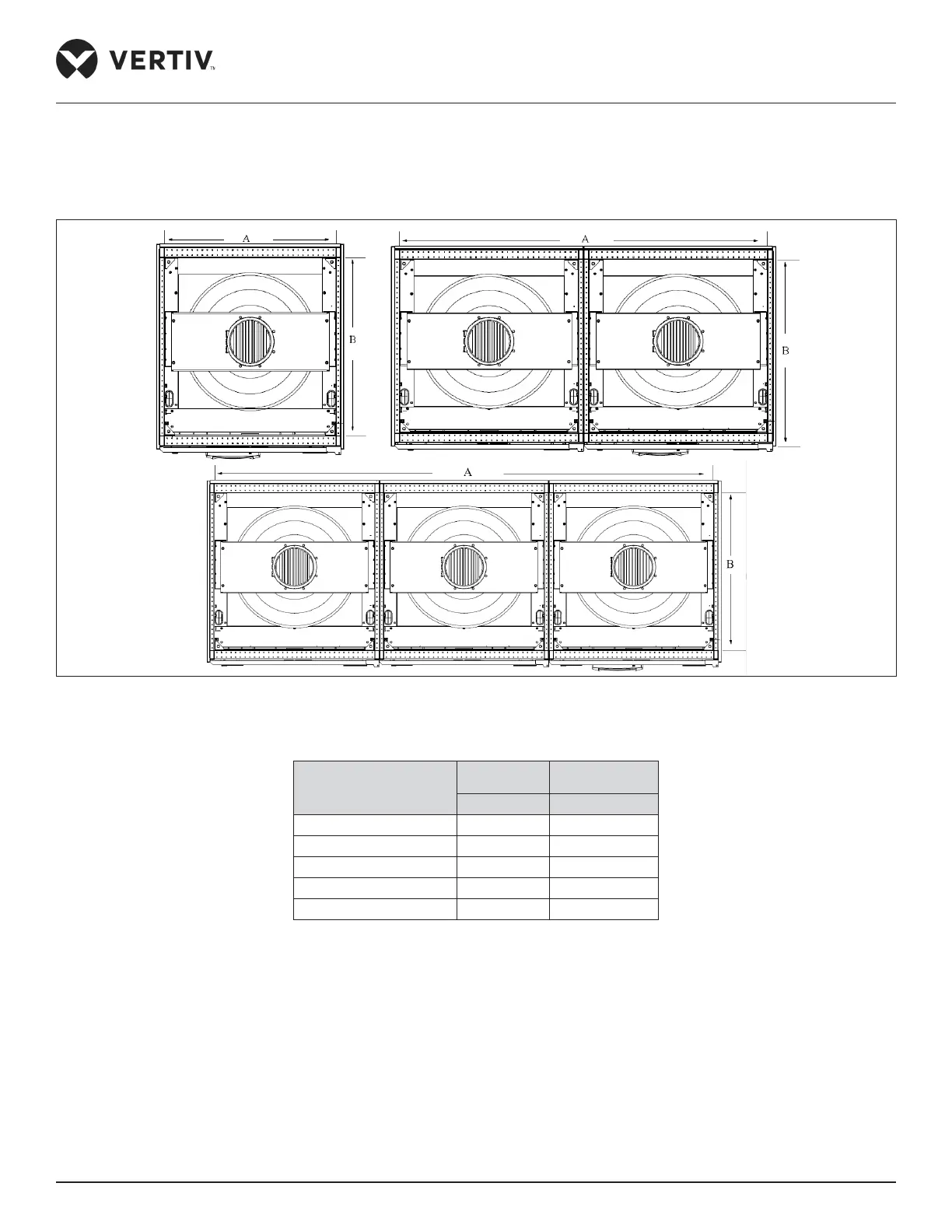

Figure 2-11 The Position of Cut-out Upflow Unit
Table 2-3 Dimensions of Air Outlet on Top Cover of Upflow Unit(inch/mm)
Types of Model
A B
mm mm
P1030-P1060 850 850
P2070-P2100 1600 850
P2110-P2140 1750 850
P3150 2425 850
P3160-P3200 2650 850
