Installation

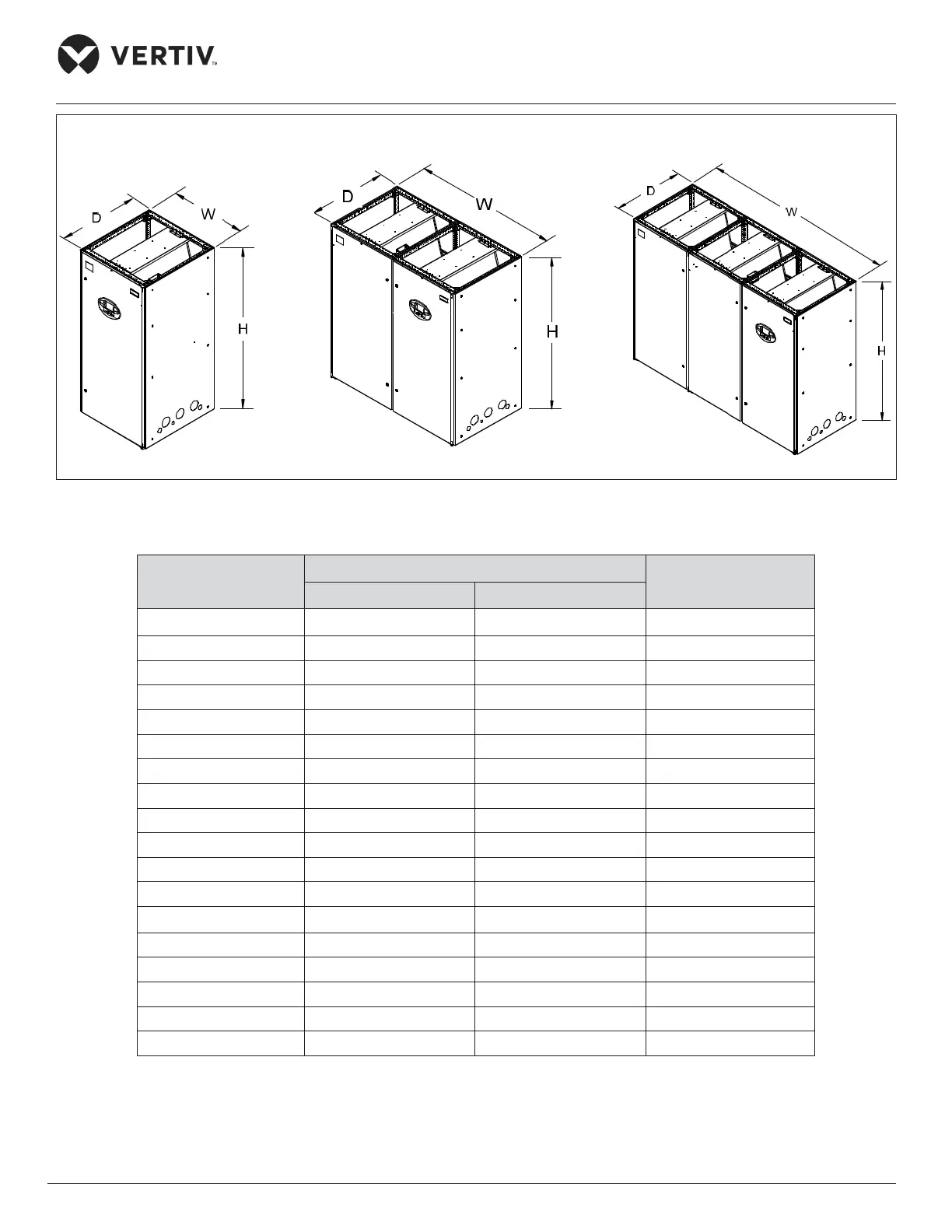

Figure 2-10 Downflow Indoor Unit
Table 2-2 Indoor Unit Size and Weight
Product Number
Dimensions (W×D×H)
Net Weight
(kg)
mm inch
P1030 930 × 995 × 1975 36.6”×39.2”×77.7” 300
P1040 930 × 995 × 1975 36.6”×39.2”×77.7” 310
P1050 930 × 995 × 1975 36.6”×39.2”×77.7” 330
P1060 930 × 995 × 1975 36.6”×39.2”×77.7” 350
P2070 1680 × 995 × 1975 66.1”×39.2”×77.7” 490
P2080 1680 × 995 × 1975 66.1”×39.2”×77.7” 500
P2090 1680 × 995 × 1975 66.1”×39.2”×77.7” 510
P2100 1680 × 995 × 1975 66.1”×39.2”×77.7” 520
P2110 1830 × 995 × 1975 72.0”×39.2”×77.7” 540
P2120 1830 × 995 × 1975 72.0”×39.2”×77.7” 550
P2130 1830 × 995 × 1975 72.0”×39.2”×77.7” 560
P2140 1830 × 995 × 1975 72.0”×39.2”×77.7” 580
P3150 2505 × 995 × 1975 98.6”×39.2”×77.7” 770
P3160 2730 × 995 × 1975 107.5”×39.2”×77.7” 790
P3170 2730 × 995 × 1975 107.5”×39.2”×77.7” 810
P3180 2730 × 995 × 1975 107.5”×39.2”×77.7” 820
P3190 2730 × 995 × 1975 107.5”×39.2”×77.7” 840
P3200 2730 × 995 × 1975 107.5”×39.2”×77.7” 850
