Installation
Chapter 2: Installation
The Installation process consists of the following procedures, namely:
• Pre-installation
• Installation Preparation
• Mechanical Installation
• Electrical Installation
2.1. Pre-installation
2.1.1. Transportation & Movement
Railways and shipping are the preferable transport options for the CRAC. If transport by rail or by ship is
unavailable, transport by road is recommended. When selecting road transport, roads without too many bumps
are highly recommended.
• Liebert PEX+ unit is heavy, it is recommended to use the mechanical equipment like electrical forklift to move
the unit.
• Move the equipment to the location near the installation site.
• If an electric forklift is used, insert the tines of the forklift below the pallet as illustrated in Figure 2-1.
• Figure 2-1 shows how the forklift tines are inserted underneath the pallet and shows in the same picture the
illustration to the right that the tines should be aligned with the center of gravity to prevent the equipment
from falling over.

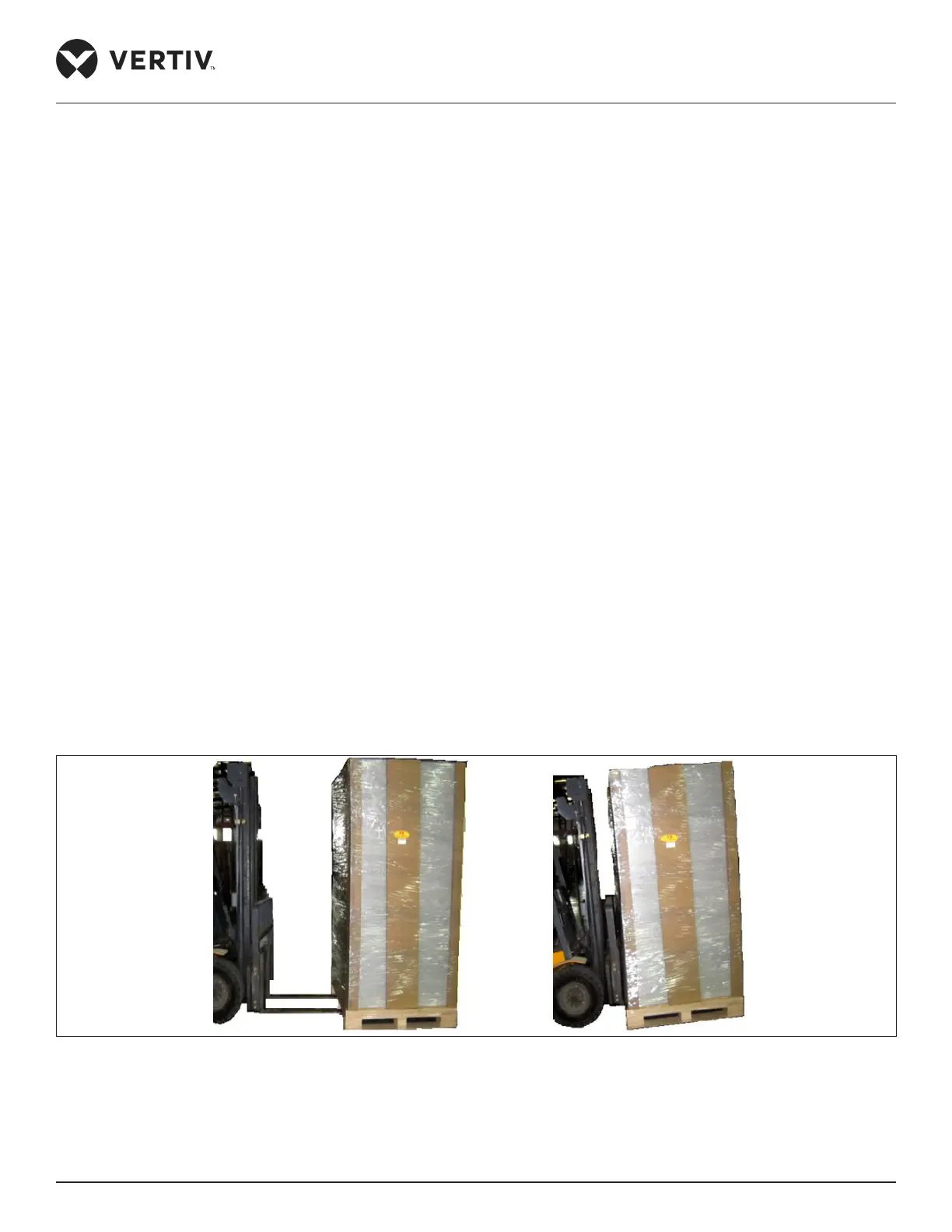

Figure 2-1 Moving an Equipment Using a Forklift Truck
While moving the indoor unit, keep the obliquity within the range of 75° to 105°, as shown in Figure 2-2.
