Vertiv Liebert PEX+ Series User Manual

Vertiv | Liebert PEX+Chilled Water | User Manual 28
Installation
Table 2-5 Dimensions of Air Outlet on Top Cover of Upflow Unit(inch/mm)
Types of Model
A (Depth) B (Width) C (Height)
mm mm mm
P1040 - P1060 995 930 400 (600, optional)
P2070 - P2100 995 1680 400 (600, optional)
P2110 - P2140 995 1830 400 (600, optional)
P3150 995 2505 400 (600, optional)
P3160 - P3200 995 2730 400 (600, optional)
If the plenum height requirement is more than 600 mm then consult Vertiv local representative for more details
on non-standard production.
2.4.4. Indoor Installation
• Mounting Floor Stand
The mounting floor stand is to be prepared by the installation team according to the dimensions, weight, and
height of the unit to ensure that the structure is rigid, the floor stand should be sized according to the number of
bays in the unit model as shown in Figure 2-18, Figure 2-19, Figure 2-20 and Table 2-7 respectively.
No. Description No. Description
1 4-Ø14 hole 3 Bottom rubber cushion
2 Bottom rubber cushion, 4PCS

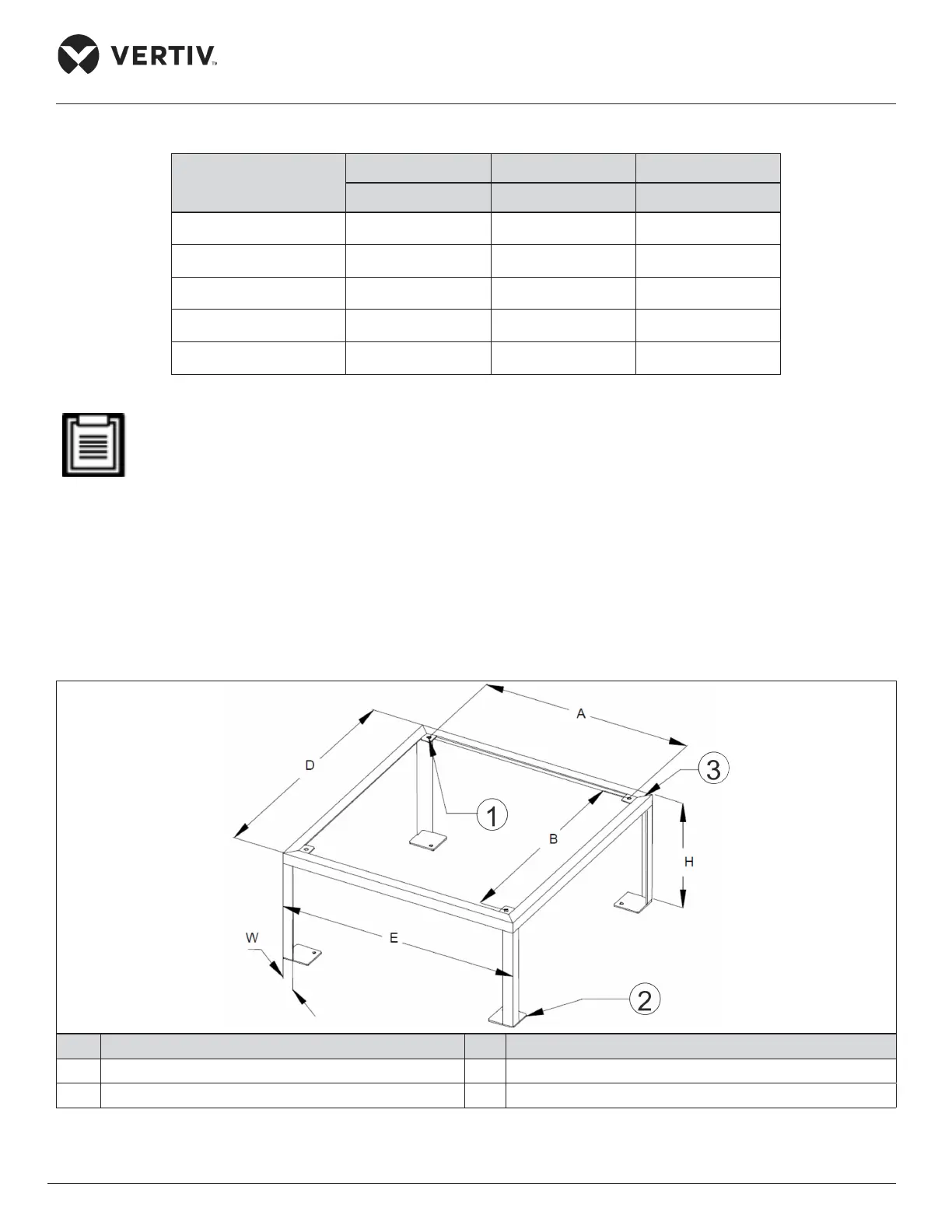

Figure 2-18 Mounting Floor Stand of One Bay Series
