Application of INTELLI SLOT
No. Description No. Description
1 iCom Control board 4 IS-UNITY-DP Communication Card
2 Standard display Screen 5 Monitoring Center
3 Intellislot 6 Communication Cable

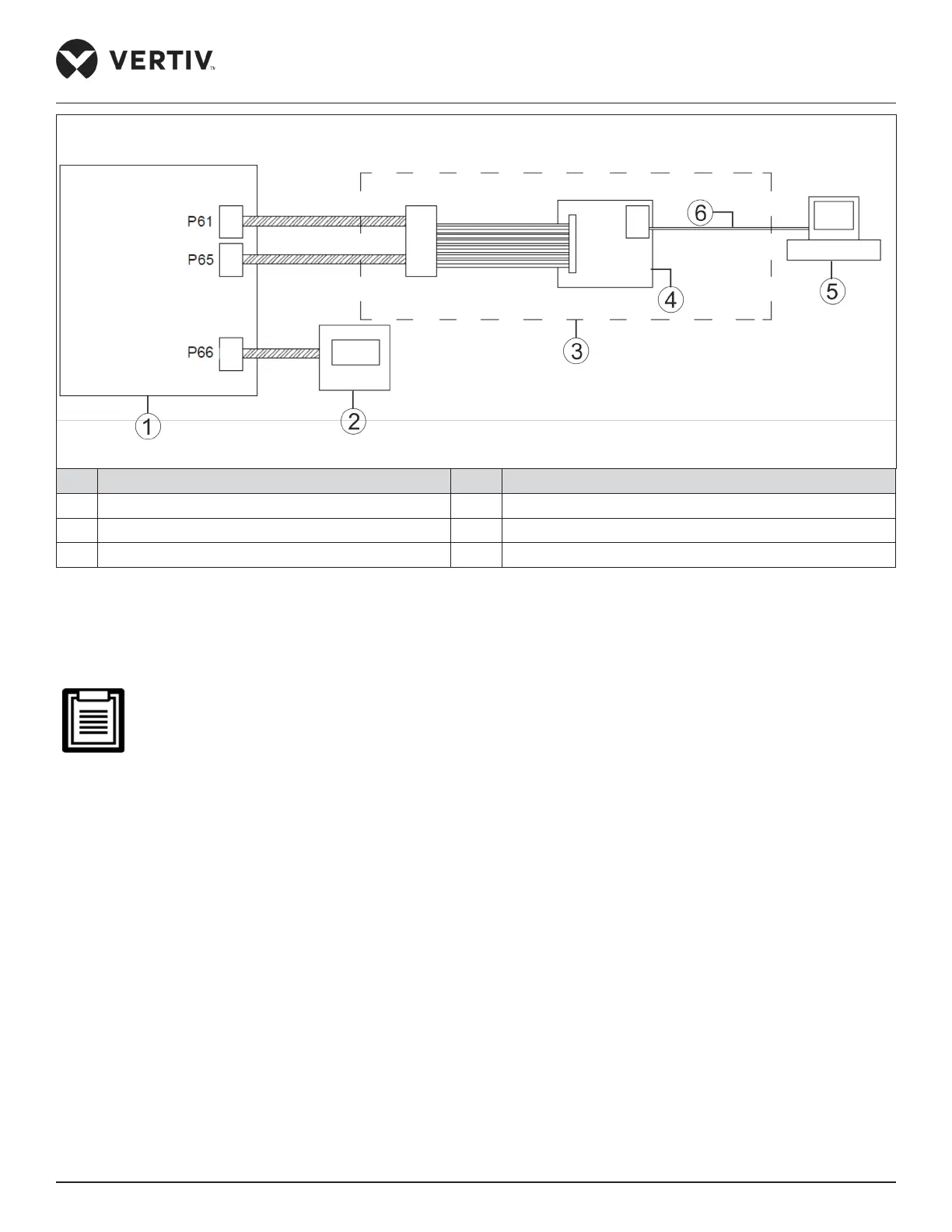

Figure 5-3 Electrical Schematic of Host Communication Configuration
Commissioning Host Communication Component
Before commissioning user must access the SERVICE Menus’ of the iCOM control board to set S824 MON ADD
as ‘3’ S835 MON PORT as Vertiv and S843 BL CTRL as S+R in the “Network Setup.”
5.2.3. Assigning the Card’s IP Address
DHCP
• Liebert IntelliSlot Unity card is factory-configured for DHCP. If user requires a Static or Boot network
configuration, ensure to change the Boot Mode as described in Static IP.
• Connect a RJ-45 cable to the card and it will receive an IP address from the DHCP server. Contact the DHCP
administrator to obtain the IP address using Liebert IntelliSlot Unity card’s MAC address. The MAC address is
printed on the card faceplate.
• If the DHCP administrator is not available or there is no way of determining the IP address assigned by the
DHCP server, use a computer with a direct Ethernet connection to Liebert IntelliSlot Unity card, and follow
the instructions to auto configuration IPv4 Address, conventions are described in Section 5.2.4- Connect an
Ethernet Cable - Connect an Ethernet Cable to access the card’s Web page and configure the card.
To Next Page
