Vertiv | Liebert PEX+ Chilled Water | User Manual 33
Installation
No. Description No. Description
1 Water inlet pipe (OD:6.35 mm) 2 Water outlet joint

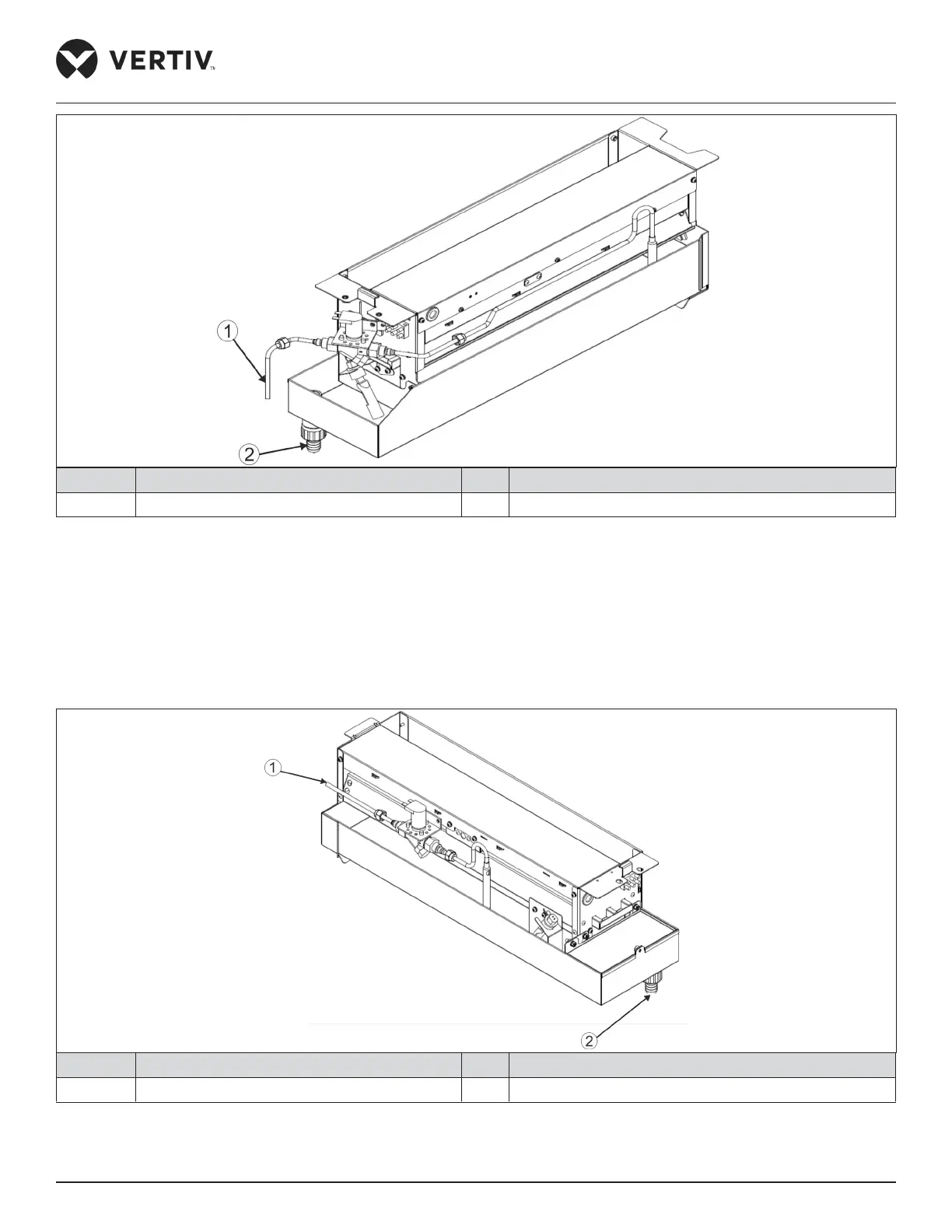

Figure 2-22 Water Inlet Pipe of Infrared Humidifier for Upflow Units
Requirements for connecting the water inlet pipe of electrode humidifier:
• Water inlet pipe uses 3/4” G screw-threaded connection pipe
• Water filter and water quality detection are recommended to prevent the water quality from aecting the
normal operation of the humidifier, refer Figure 2-23 for better understanding.
No. Description No. Description
1 Water inlet pipe (OD:6.35 mm) 2 Water outlet joint
Figure 2-23 Water Inlet Pipe of Infrared Humidifier for Downflow Units
