Vertiv | Liebert PEX+ Chilled Water | User Manual 35
Installation
No. Description No. Description
1 Water supply pipe 2 Water return pipe

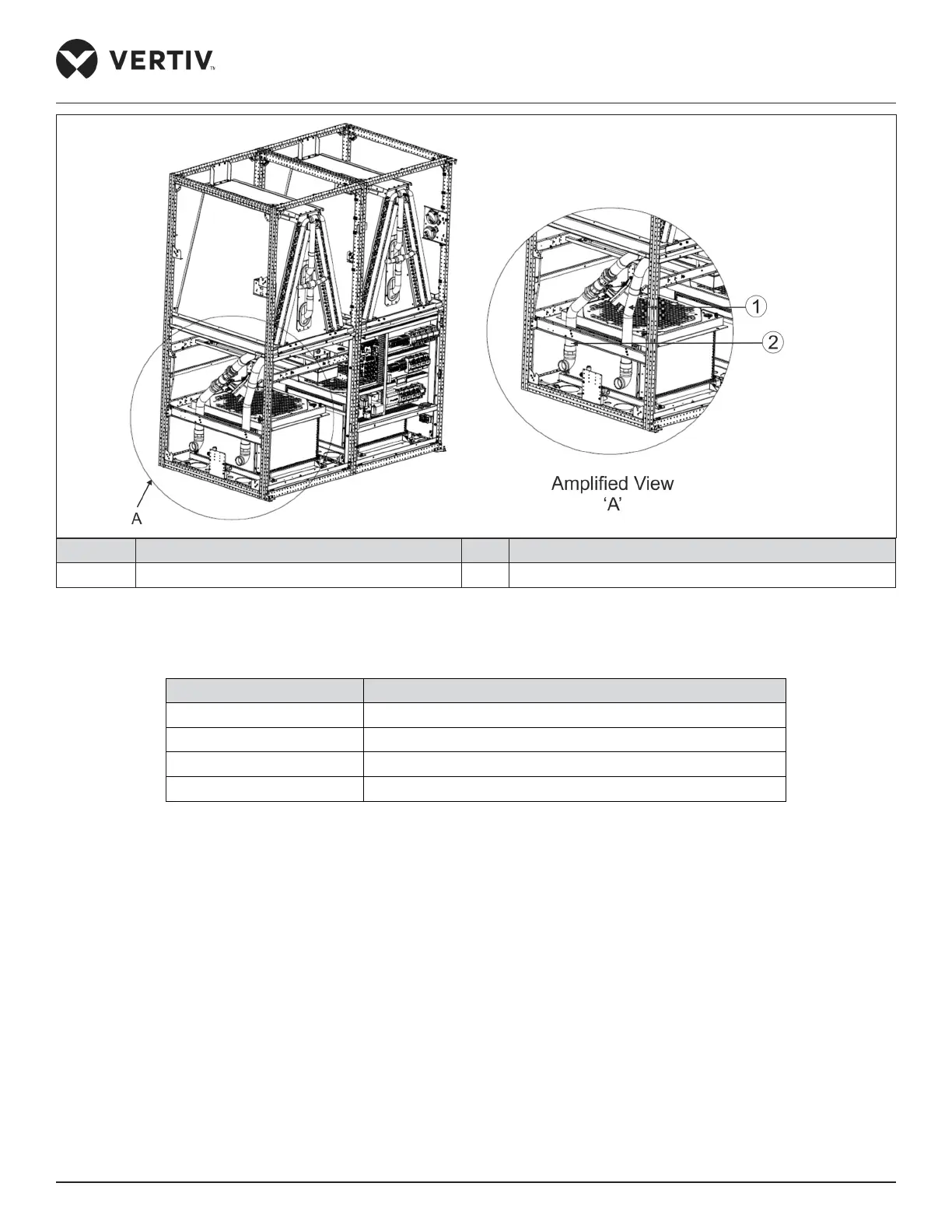

Figure 2-25 Connection of Chilled Water Supply and Return Pipes (downflow units)
Table 2-8 Male Screw of Chilled Water In and Out Pipes
Model Male Screw of Chilled Water In & Out Pipes (inch)
P1030~P1050 R1 1/4”
P1060~P2080 R1 1/2”
P2090~P2140 R2
P3150~P3200 R2 1/2”
