MECHANICAL INSTALLATION Liebert Trinergy™ Cube
Installation Manual - 10H52243IM60 - rev. 7 - 06/2020 Page 63

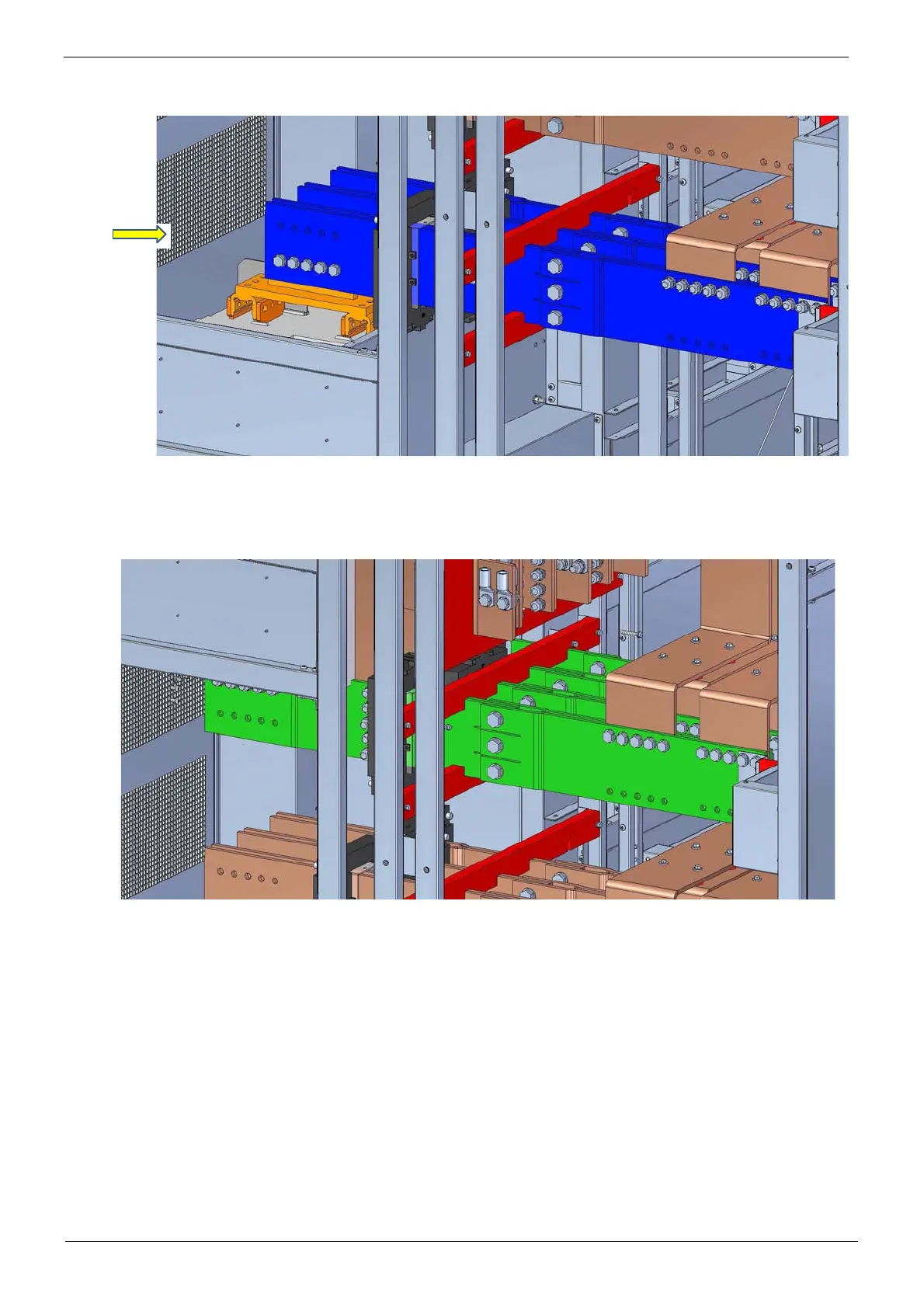

Figure 66 - STEP 5 - Connections of the bus-bars of the two cabinets N.21 SCREW M16x65 with FLAT
WASHER and N21 NUT M16 with FLAT and SPLIT WASHER.
Use contact grease.
Figure 67 - STEP 6 - Connections of the bus-bars of the two cabinets N.21 SCREW M16x65 with FLAT
WASHER and N.21 NUT M16 with FLAT and SPLIT WASHER.
Use contact grease.
