MECHANICAL INSTALLATION Liebert Trinergy™ Cube
Installation Manual - 10H52243IM60 - rev. 7 - 06/2020 Page 67
The following figures explain how to assemble the bus-bars on the static cabinet with the ones on the I/
O box. Use contact grease for the correct connection and installation of all bus-bars.
Electrical connection of the two cubicles:
N. 20 SCREWS M12x60 with FLAT WASHER and GROWER (5x to be used on each bar connection)

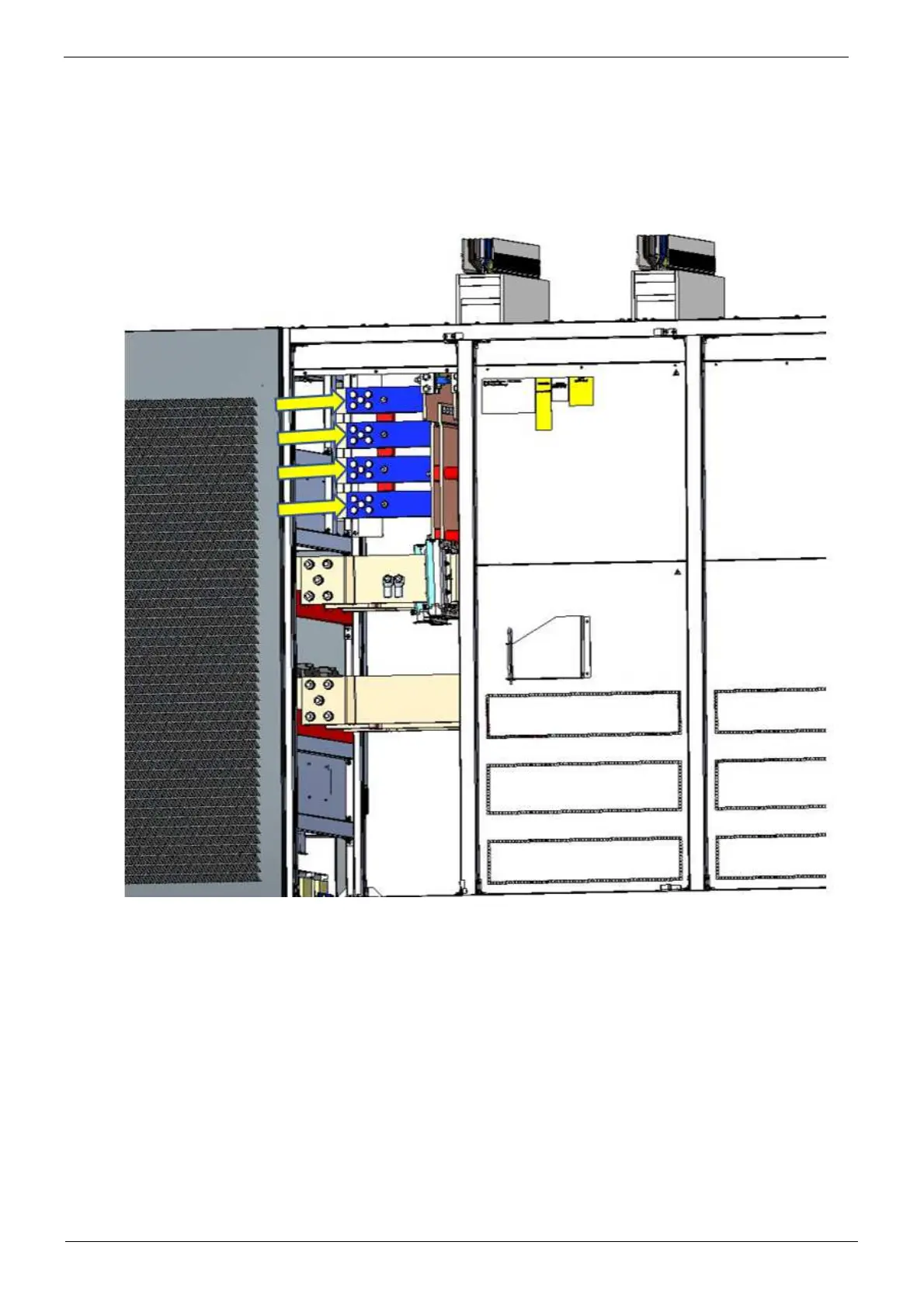

Figure 71 - STEP 3 – Bus-bars connections - FRONT VIEW
