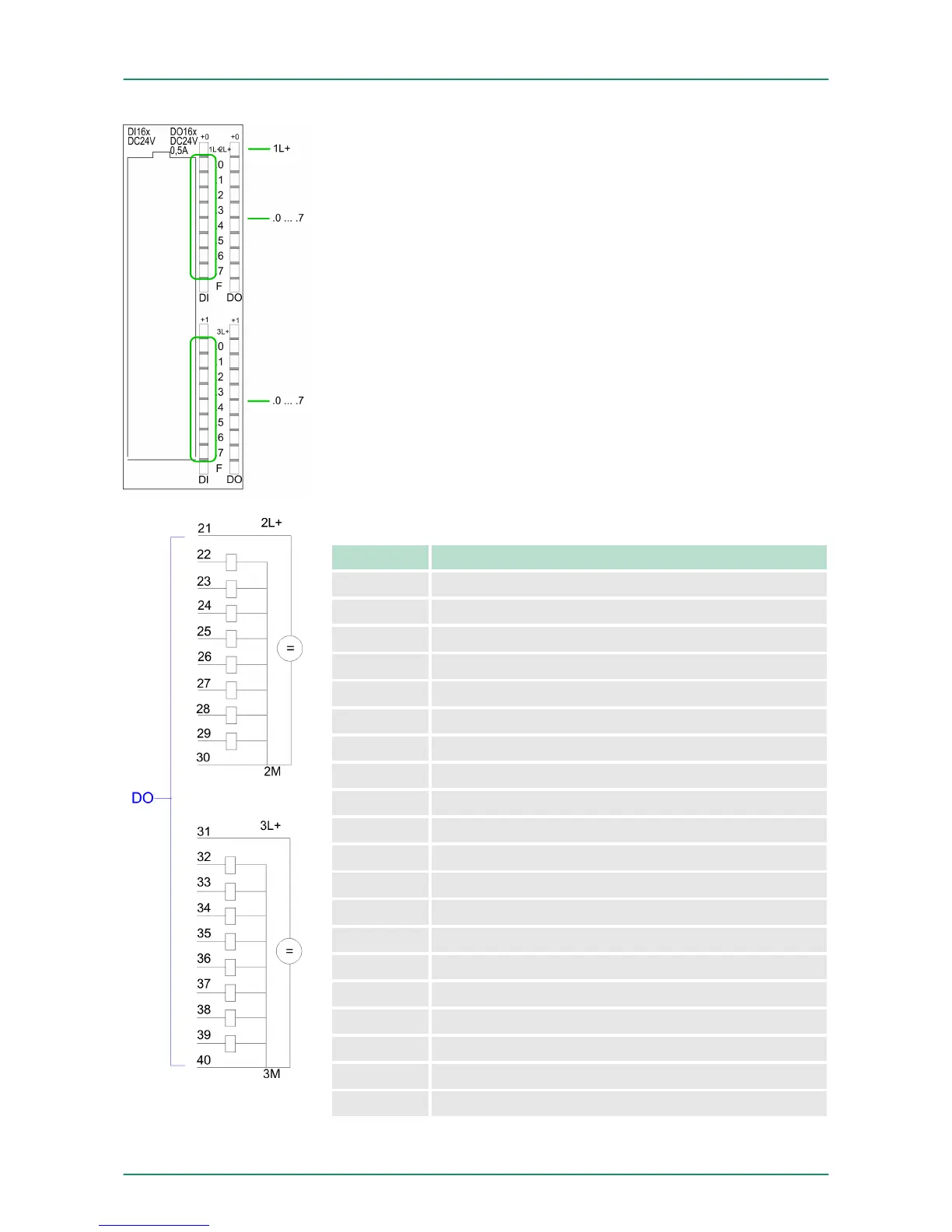

Status indication X11: DI
n 1L+
–
LED (green)
Supply voltage available for DI
n .0 ... .7
– LEDs (green)
I+0.0 ... I+0.7
I+1.0 ... I+1.7
Starting with ca. 15V the signal "1" at the input is recognized
and the according LED is activated
Pin assignment X11: DO
Pin Assignment
21 2L+ Power supply +DC 24V
22 O+0.0 / Channel 0 Output
23 O+0.1 / Channel 1 Output
24 Q+0.2 / Channel 2 Output
25 Q+0.3
26 Q+0.4
27 Q+0.5
28 Q+0.6
29 Q+0.7
30 Ground 2M DO
31 3L+ Power supply +DC 24V
32 Q+1.0
33 Q+1.1
34 Q+1.2
35 Q+1.3
36 Q+1.4
37 Q+1.5
38 Q+1.6
39 Q+1.7
40 Ground 3M DO
VIPA System 300SDeployment I/O periphery
Digital part
HB140 | CPU-SC | 313-6CF13 | GB | 15-50 102
