Limits Valid value range
Limit value
-2 147 483 648 (-2
31
)
to +2 147 483 646 (2
31
-2)
Upper count limit
+2 147 483 647 (2
31
-1)
6.5.4 Counter - Additional functions
The following additional functions may be set via the parameterization
for every counter:
n Gate function
The gate function serves the start, stop and interrupt of a count
function.
n Latch function
An edge 0-1 at the digital input "Latch" stores the recent counter
value in the latch register.
n Comparison
You may set a comparison value that activates res. de-activates a
digital output res. releases a hardware interrupt depending on the
counter value.
n Hysteresis
The setting of a hysteresis avoids for example a high output tog-
gling when the value of an encoder signal shifts around a compar-
ison value.

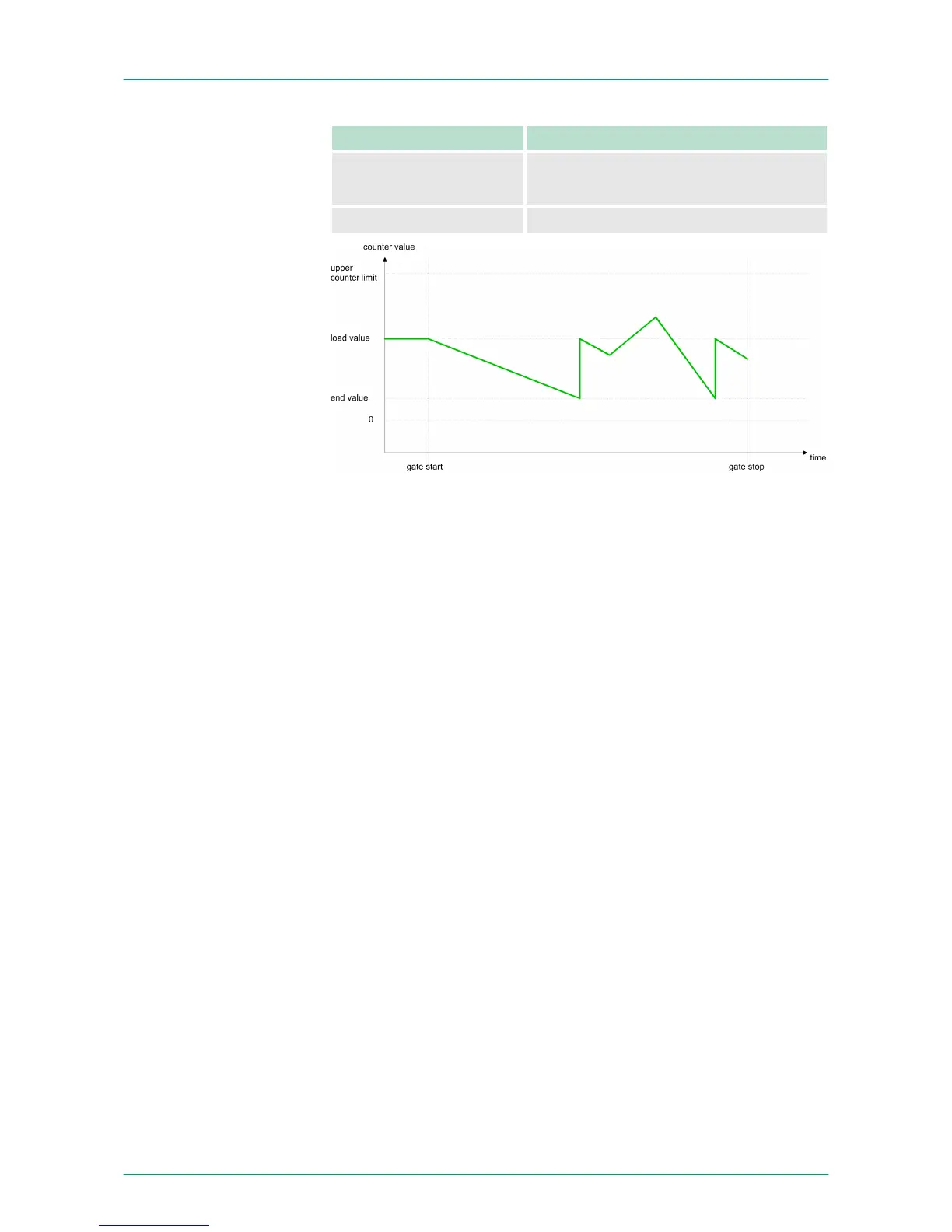

The illustration shows how the additional functions influence the
counting behaviour. The following pages describe these functions in
detail:
Overview
Schematic structure
VIPA System 300S Deployment I/O periphery
Counter > Counter - Additional functions
HB140 | CPU-SC | 313-6CF13 | GB | 15-50 119
