n DIOs: Start address = 4×(slot -4)
n AIOs, FMs, CPs: Start address = 16×(slot -4)+256

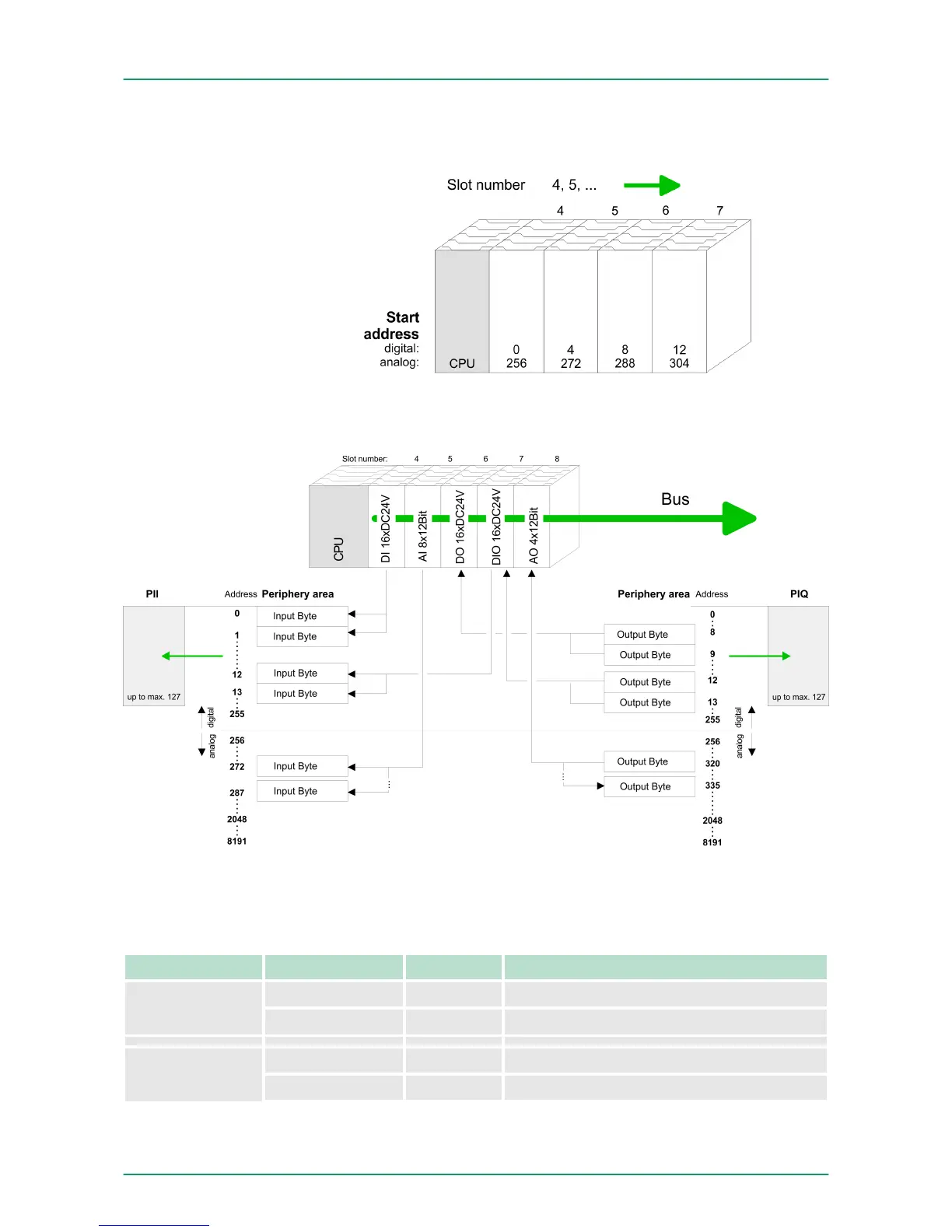

The following sample shows the functionality of the automatic
address allocation:
5.4 Address assignment
Sub module Default address Access Assignment
DI16/DO16 124 Byte Digital Input I+0.0 ... I+0.7
125 Byte Digital Input I+1.0 ... I+1.7
Counter 768 DInt Channel 0: Count value / Frequency value
772 DInt Channel 1: Count value / Frequency value
Example for automatic
address allocation
Input range
VIPA System 300S Deployment CPU 313-6CF13
Address assignment
HB140 | CPU-SC | 313-6CF13 | GB | 15-50 49
