4 Hardware description
4.1 Properties
n SPEED7 technology integrated
n 128kbyte work memory integrated (64kbyte code, 64kbyte data)
n Work memory expandable to max. 512Mbyte (256kbyte code,
256kbyte data)
n 512kbyte load memory
n PROFIBUS DP master integrated supported DP-V0, DP-V1
n RS485 interface for PtP communication
n Ethernet PG/OP interface integrated
n MPI interface
n MCC slot for external memory cards (lockable)
n Status LEDs for operating state and diagnostics
n Real-time clock battery buffered
n Digital I/Os: DI 16xDC24V / DO 16xDC24V, 0.5A
n 3 channels for counter, frequency measurement and pulse width
modulation
n I/O address range digital/analog 1024byte
n 512 timer / 512 counter / 8192 flag byte
Type Order number Description
313SC 313-6CF13 MPI interface, Card slot, Real-time clock, Ethernet
interface for PG/OP, PB-DP master / PtP interface,
DI 16xDC24V / DO 16xDC 24V, 0.5A, 3 channels
technological function

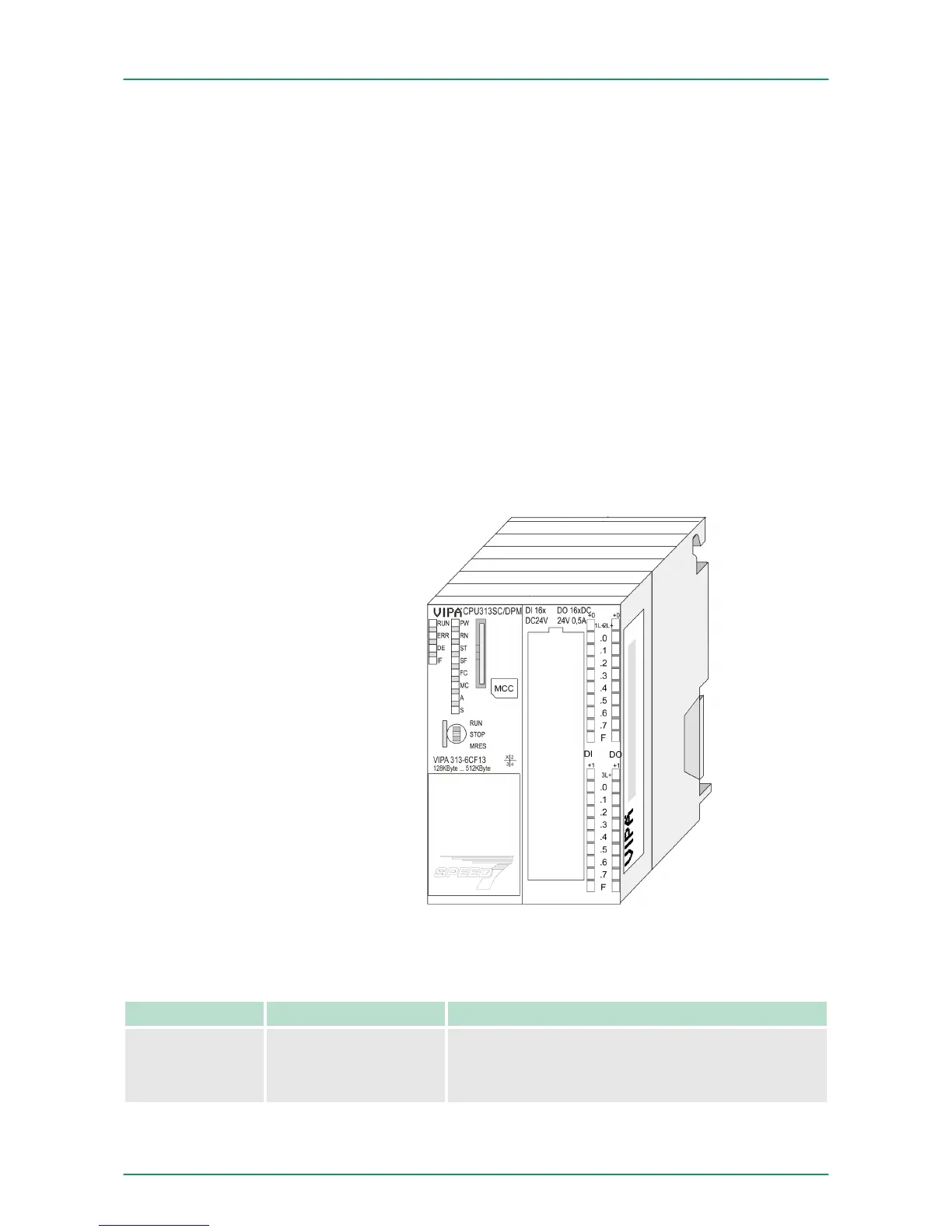

CPU 313-6CF13
Ordering data
VIPA System 300SHardware description
Properties
HB140 | CPU-SC | 313-6CF13 | GB | 15-50 24
