4.2 Structure
4.2.1
General

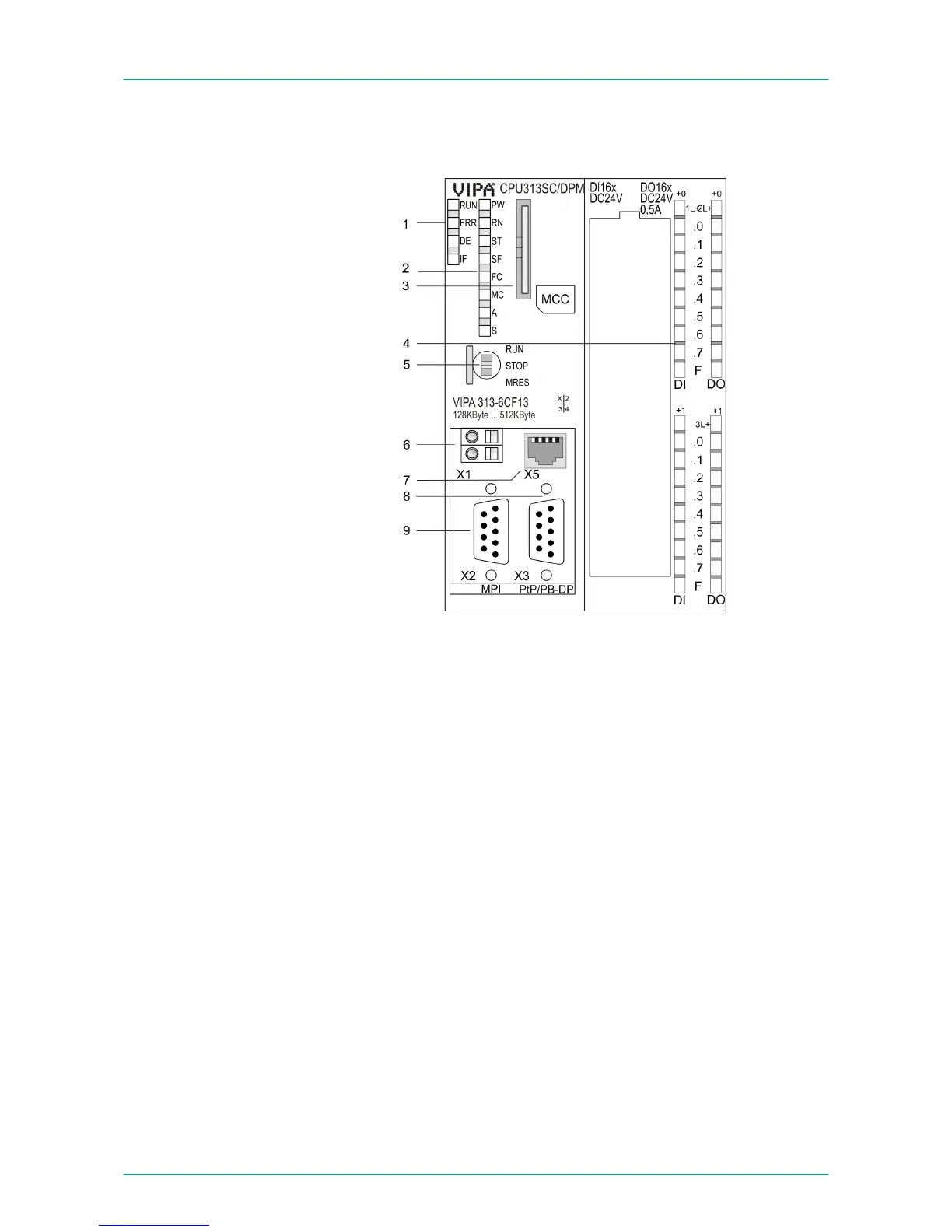

1 LEDs of the integrated PROFIBUS DP master
2 LEDs of the CPU part
3 Storage media slot (lockable)
4 LEDs of the I/O part
5 Operating mode switch CPU
6 Slot for DC 24V power supply
7 Twisted pair interface for Ethernet PG/OP channel
8 PtP/PROFIBUS DP interface
9 MPI interface
The components 6 - 9 are under the front flap!
CPU 313-6CF13
VIPA System 300S Hardware description
Structure > General
HB140 | CPU-SC | 313-6CF13 | GB | 15-50 25
