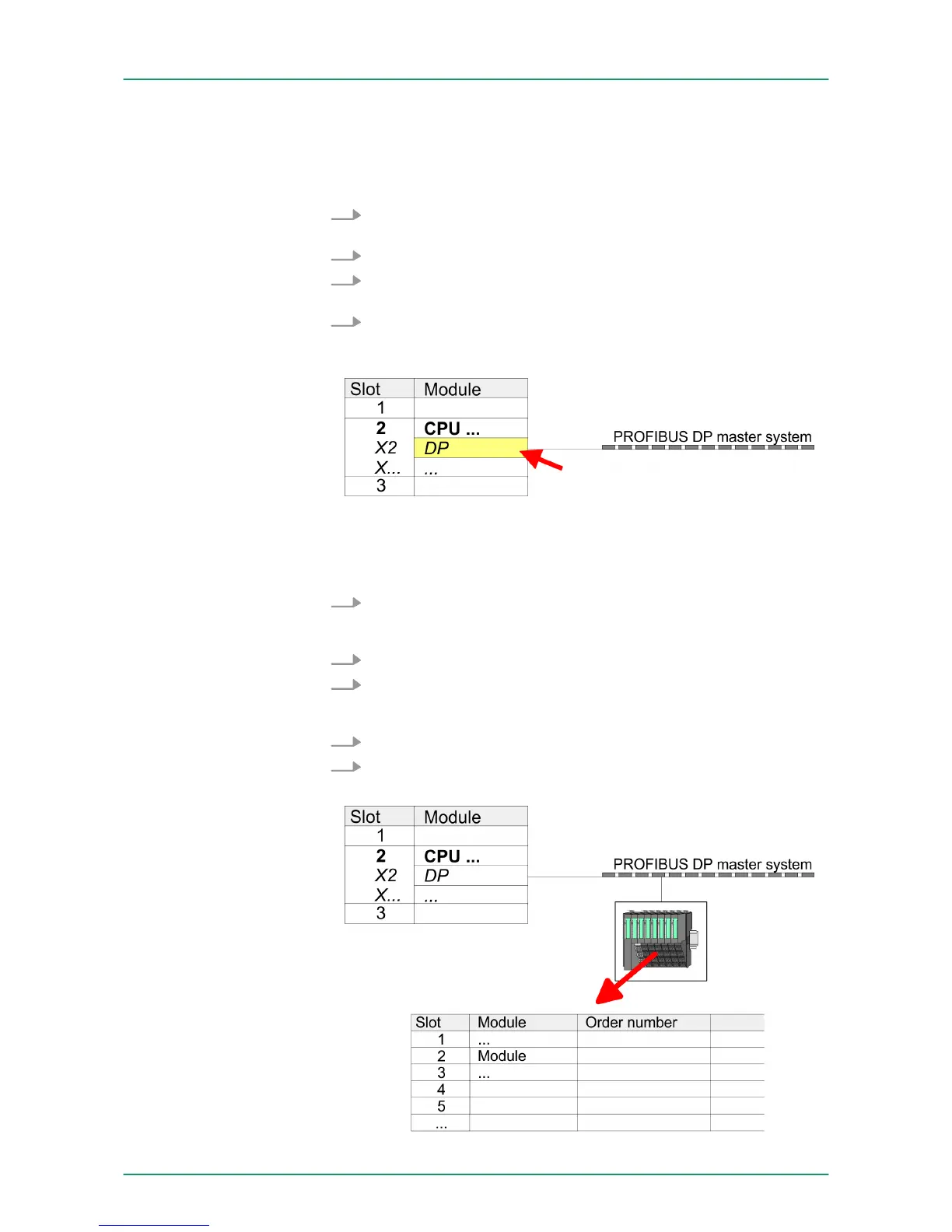

8.4 Deployment as PROFIBUS DP master
The hardware configuration described before was established.
1. Open the properties dialog of the DP interface of the CPU by
means of a double-click at ‘DP’ .
2. Set Interface type to "PROFIBUS"
3. Connect to PROFIBUS and preset an address (preferably 2)
and confirm with [OK].
4. Switch at Operating mode to "DP master" and confirm the dialog
with [OK]. A PROFIBUS DP master system is inserted.
ð
A PROFIBUS DP master system is inserted:
Now the project engineering of your PROFIBUS DP master is fin-
ished. Please link up now your DP slaves with periphery to your DP
master.
1. For the project engineering of PROFIBUS DP slaves you search
the concerning PROFIBUS DP slave in the hardware catalog
and drag&drop it in the subnet of your master.
2. Assign a valid PROFIBUS address to the DP slave.
3. Link up the modules of your DP slave system in the plugged
sequence and add the addresses that should be used by the
modules.
4. If needed, parameterize the modules.
5. Save, compile and transfer your project.
Precondition
Proceeding
VIPA System 300SDeployment PROFIBUS communication
Deployment as PROFIBUS DP master
HB140 | CPU-SC | 313-6CF13 | GB | 15-50 178
