5.6 Hardware configuration - I/O modules

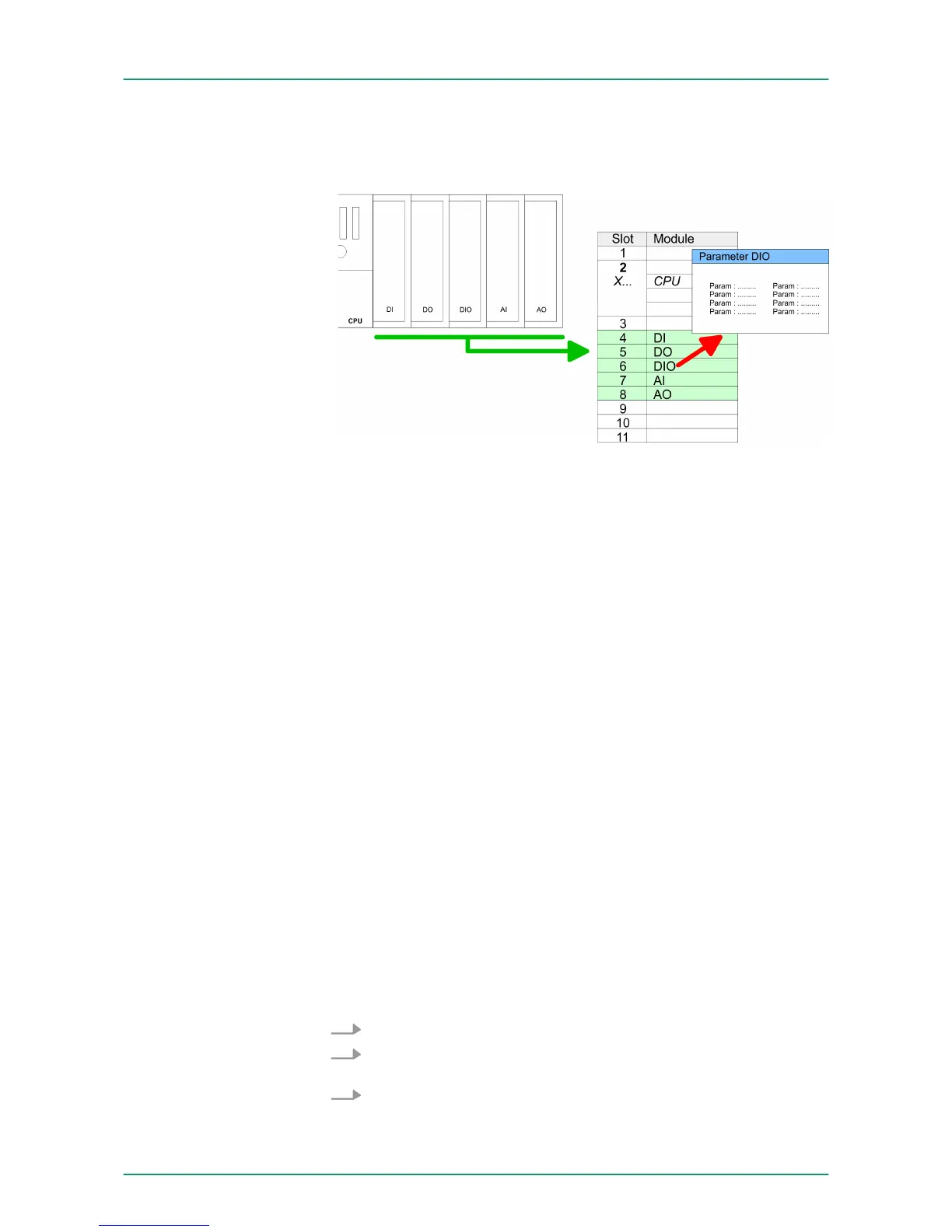

After the hardware configuration place the System 300 modules in the
plugged sequence starting with slot 4.
For parametrization double-click during the project engineering at the
slot overview on the module you want to parameterize. In the
appearing dialog window you may set the wanted parameters. By
using the SFCs 55, 56 and 57 you may alter and transfer parameters
for wanted modules during runtime. For this you have to store the
module specific parameters in so called "record sets". More detailed
information about the structure of the record sets is to find in the
according module description.
Maximally 31 modules may be addressed by the CPU 313-6CF13,
but per row maximally 8 modules are supported. For project engi-
neering the IM 360 of the hardware catalog are to be used as a bus
extension during project engineering. Here 3 further extension racks
can be connected via the IM 361. Bus extensions are always placed
at slot 3.
5.7
Hardware configuration - Ethernet PG/OP channel
The CPU 313-6CF13 has an integrated Ethernet PG/OP channel.
This channel allows you to program and remote control your CPU.
The PG/OP channel also gives you access to the internal web page
that contains information about firmware version, connected I/O
devices, current cycle times etc. With the first start-up respectively
after an overall reset the Ethernet PG/OP channel does not have any
IP address. For online access to the CPU via Ethernet PG/OP
channel valid IP address parameters have to be assigned to this by
means of the Siemens SIMATIC Manager. This is called "initializa-
tion".
1. Install your System 300S with your CPU.
2. Wire the system by connecting cables for voltage supply and
signals.
3. Connect the Ethernet jack of the Ethernet PG/OP channel to
Ethernet
Hardware configuration
of the modules
Parametrization
Bus extension with IM
360 and IM 361
Overview
Assembly and commis-
sioning
VIPA System 300S Deployment CPU 313-6CF13
Hardware configuration - Ethernet PG/OP channel
HB140 | CPU-SC | 313-6CF13 | GB | 15-50 51
